Product Description:

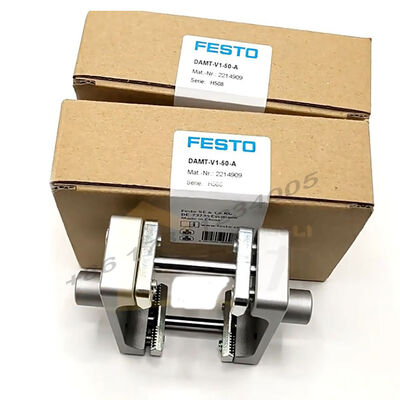

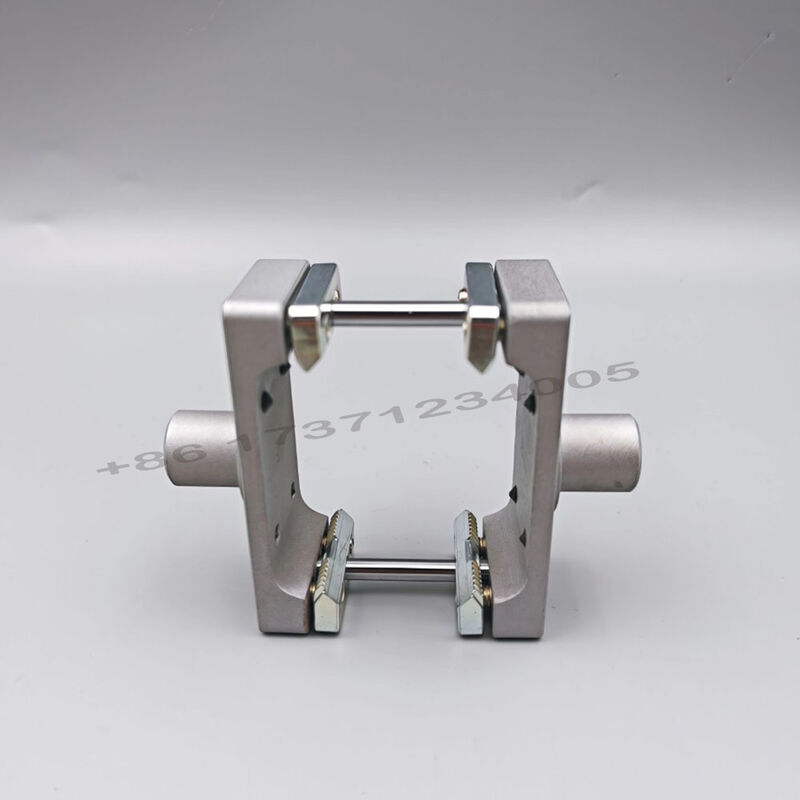

The DAMT-V1 series is an original middle trunnion mounting assembly from Festo, specifically designed for ISO15552 standard cylinders. This standard includes the former ISO6431 and VDMA24562 standards. The series is compatible with DSBC and DNC series ISO standard cylinders. It supports a range of cylinder bore sizes including 32, 40, 50, 63, 80, 100, and 125 mm. The model designation DAMT-V1-XX-A reflects the bore size of the cylinder, where "XX" stands for the specific bore diameter.
Constructed from high-quality materials, the assembly features a galvanized steel flange and clamping piece, a pivot shaft made of high-alloy stainless steel, and galvanized steel screws. It is built to CRC1 low corrosion resistance grade, uses copper-free materials, and complies with LABS/PWIS and RoHS standards. These characteristics make it suitable for environments such as lithium battery production workshops where strict material standards are required.
The DAMT-V1 series performs well in a wide range of ambient temperatures, from -40℃ up to 150℃. It offers high mechanical load-bearing capacity and facilitates middle pivot swing installation for pneumatic cylinders. This design effectively reduces installation stress on the cylinder, preventing deformation during reciprocating movements. Additionally, the assembly simplifies the mounting process on site by including a complete set of fixing accessories.
This mounting assembly is widely compatible with Festo DSBC and DNC standard cylinders. It finds extensive applications across various automated production lines, packaging equipment, printing machinery, new energy lithium equipment, and pneumatic actuating systems in food processing industries.
Technical Parameters:
- Size63
- Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.
- Ambient temperature-40 °C ... 150 °C
- Max. load capacity4 kN
- Product weight910.6 g
- Note on materialsRoHS compliant
- Material screwsSteel Galvanised
- Material trunnion flangeGalvanised steel
- Material clamping pieceGalvanised steel
- Material rodHigh-alloy stainless steel
Applications:
Automation machinery plays a crucial role in modern manufacturing processes, streamlining operations and enhancing efficiency across various industries.
Packaging and filling equipment are essential components in product handling, ensuring accurate and hygienic packaging solutions for a wide range of goods.
The production line for lithium batteries involves specialized machinery designed to meet the high standards required for energy storage devices.
Printing machinery provides advanced technology for producing high-quality printed materials, catering to diverse commercial and industrial needs.
Rubber and plastic equipment is used extensively in shaping and processing materials, supporting the creation of numerous everyday products.
General pneumatic automation systems utilize compressed air to drive mechanical motion, offering reliable and cost-effective solutions for industrial automation.
