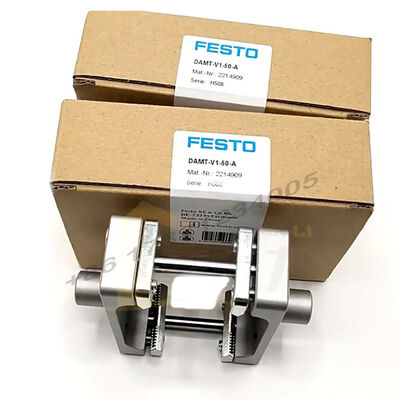

DAMT-V1-50-A 2214909 Piston Pneumatic Cylinder Bore 32-125mm Galvanized Steel Stainless Steel Pin Durable Performance

Product Description:

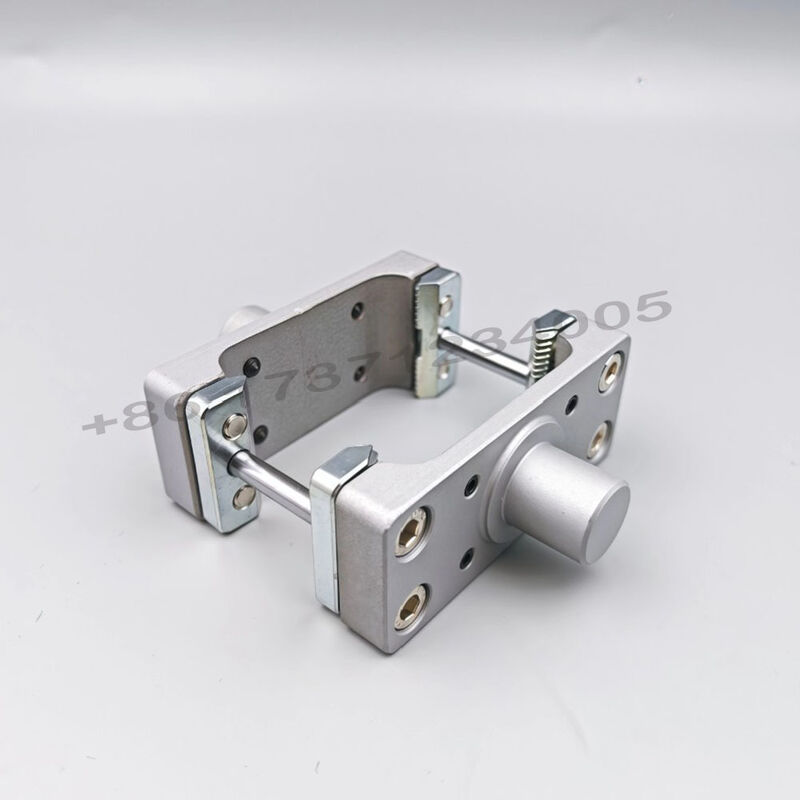

The DAMT-V1 series is the original middle trunnion mounting assembly from Festo, specifically designed for ISO15552 standard cylinders (previously known as ISO6431 and VDMA24562). This series is compatible with the DSBC and DNC series of ISO standard cylinders, supporting various cylinder bore sizes including 32, 40, 50, 63, 80, 100, and 125 mm. The model nomenclature follows the format DAMT-V1-XX-A, where "XX" indicates the cylinder bore size.

Constructed with galvanized steel for both the flange and clamping pieces, the DAMT-V1 series also features a high-alloy stainless steel pivot shaft and galvanized steel screws. It meets CRC1 low corrosion resistance standards and is made from copper-free materials. Additionally, this product complies with LABS/PWIS and RoHS standards, making it suitable for environments such as lithium battery production workshops where stringent material requirements are essential.

The assembly can operate efficiently within a wide ambient temperature range, from -40°C up to 150°C. Its high mechanical load-bearing capacity enables middle pivot swing installation of pneumatic cylinders, which effectively reduces installation stress. This design prevents cylinder deformation during reciprocating movements and simplifies on-site mounting processes by providing a complete set of fixing accessories.

The DAMT-V1 series is widely compatible with Festo’s DSBC and DNC standard cylinders. It finds extensive applications across automated production lines, packaging equipment, printing machinery, new energy lithium battery equipment, and food processing pneumatic actuation systems.

Technical Parameters:

• Size50
• Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesMetals with more than 1% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.
• Ambient temperature-40 °C ... 150 °C
• Max. load capacity2.5 kN
• Product weight602.2 g
• Note on materialsRoHS compliant
• Material screwsSteel Galvanised
• Material trunnion flangeGalvanised steel
• Material clamping pieceGalvanised steel
• Material rodHigh-alloy stainless steel

Applications:

Automation machinery plays a crucial role in modern manufacturing, enhancing efficiency and precision across various industries. These advanced systems are designed to perform repetitive tasks with minimal human intervention, ensuring consistent quality and increased productivity.

Packaging and filling equipment is essential for the safe and efficient handling of products in industries such as food, pharmaceuticals, and cosmetics. These machines are engineered to package goods securely, accurately fill containers, and maintain hygiene standards throughout the production process.

The lithium battery production line is a specialized manufacturing setup focused on producing high-quality batteries for use in electric vehicles, portable electronics, and energy storage systems. This production line integrates multiple stages, from electrode preparation to cell assembly and testing, ensuring reliability and performance.

Printing machinery encompasses a variety of equipment used to apply text and images onto surfaces of different materials. These machines are utilized in packaging, publishing, and advertising, offering diverse printing techniques like digital, offset, and flexographic printing.

Rubber and plastic equipment includes machines that process raw materials into finished products such as seals, hoses, containers, and components for automotive and consumer goods industries. These systems handle molding, extrusion, and other forming processes with precision.

General pneumatic automation involves the use of compressed air systems to power mechanical devices and control industrial processes. Pneumatic technologies are widely applied due to their reliability, speed, and cost-effectiveness in automation solutions.
