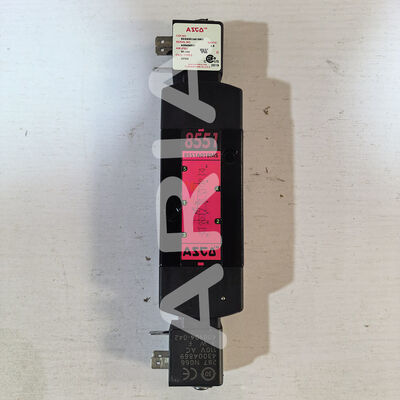

ASCO SC8551A018MS SC8551A017MS 24DC AC110V 4-Way Aluminum 1/4 In Solenoid Valve Namur Mount

1.Basic Info

• Brand: ASCO (Emerson)
• Model: SC8551A018MS
• Series: 8551 Series
• Valve Function: 5/2 Way, convertible to 3/2 NC
• Driving Type: Pilot Operated, Dual Solenoid
• Mount Standard: NAMUR Direct Mount
• Port Size: 1/4" NPT Female Thread,
•

2.Material & Seal

• Valve Body: Black Hard Anodized Aluminum
• Seal Material: NBR(Buna-N) Rubber
• Coil: Epoxy Encapsulated Copper Coil
•

3.Performance Parameter

• Working Medium: Dry Compressed Air, Inert Gas
• Working Pressure: 30～150PSI(2～10bar)
• Flow Coefficient Cv:0.86 / Kv:0.74
• Ambient Temp: -15℃~+60℃(5℉~140℉)
• Medium Temp: -15℃~+60℃
• Coil Power: DC=3W / AC=6.3W
• Electrical Connection: DIN Connector
•

4.Certification & Feature

• Certificates: CE, UL, CSA Approved
• Built-in Manual Override (Manual Test Button)
• Enclosure Grade: NEMA3/3S/4/4X
• Installation: Any Position Mounting Available
•

5.Common Optional Voltage
