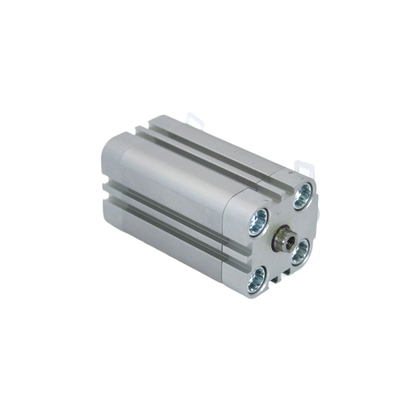

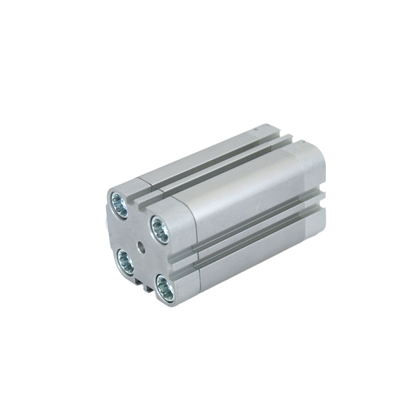

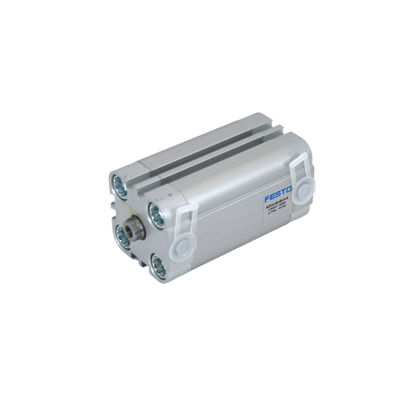

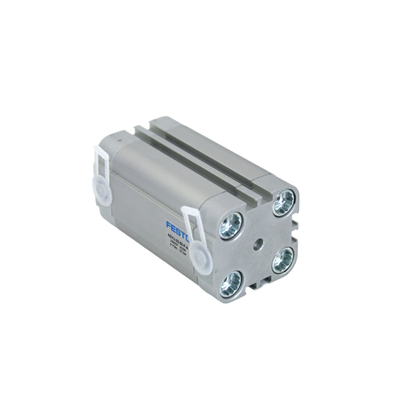

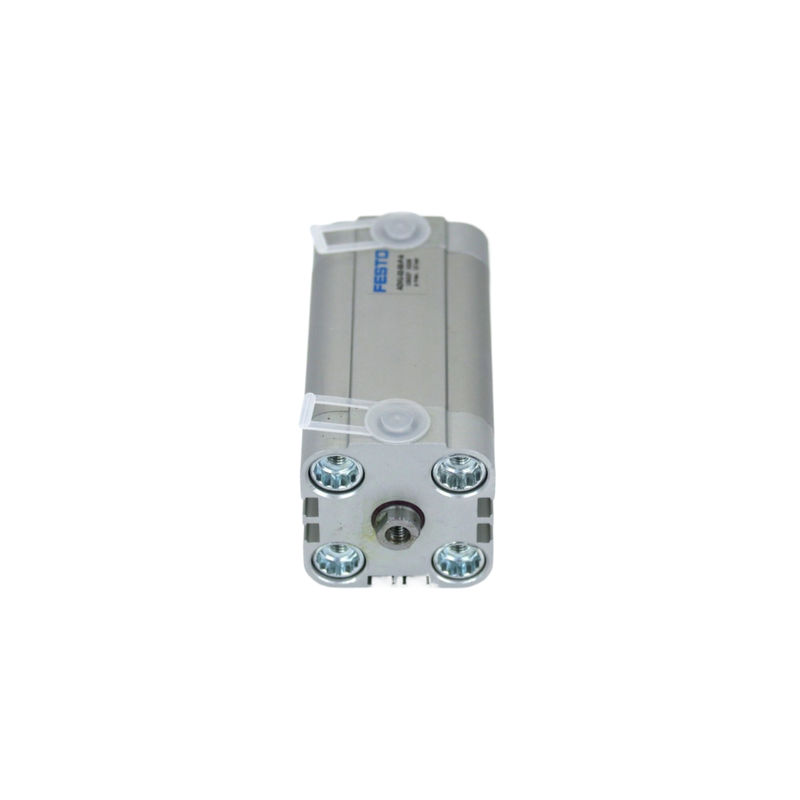

Robust Aluminium Barrel 156612 FESTO ADVU-25-25-A-P-A Threaded Piston Rod 25x25mm M5 Port Round Body Cylinder Double-Acting Magnetic Ring ISO 6432 for Conveyor Diverting

Product Description:

The Festo ADVU-25 series features a compact double-acting pneumatic cylinder with a bore size of 25mm. This series offers standard stroke lengths of 5, 10, 15, 20, and 25mm, catering to a variety of application needs. There are two versions available: P-A and A-P-A, both designed to accommodate sensor mounting for enhanced functionality.

Designed with a short block, the ADVU-25 cylinders boast a compact and lightweight body made from durable aluminum alloy. This construction ensures stable output force during operation while maintaining a minimal overall weight. The cylinder's modular design allows for the interchangeability of spare parts, simplifying maintenance and reducing downtime.

Widely utilized in automated machinery, the pneumatic linear drive units of the ADVU-25 series are known for their reliability and performance. As genuine Festo products, these compact cylinders come with original part numbers including 156522, 156608, 156523, 156609, 156524, 156610, 156525, 156611, 156526, and 156612, ensuring authenticity and compatibility.

Features:

This ultra-compact block structure offers a significantly shorter installation length compared to standard cylinders, effectively saving internal space within equipment. Its design facilitates more efficient use of available space, which is crucial in compact and intricate machinery setups.

Featuring a double-acting drive mechanism, the cylinder ensures stable push and pull output forces. The piston moves smoothly with low friction, contributing to reliable and consistent performance in various applications requiring precise motion control.

There are two main model variants available. The P-A model serves as the basic option, while the A-P-A variant includes an integrated sensor groove designed to accommodate proximity switches. This feature enhances sensor integration for automated systems.

Constructed with a high-strength anodized aluminum cylinder barrel, the unit boasts excellent resistance against corrosion and wear. This durable material choice extends the service life of the cylinder, making it suitable for demanding industrial environments.

The standard bore diameter measures 25mm, with a variety of stroke lengths offered—5, 10, 15, 20, and 25mm. All models share a unified installation dimension, allowing for easy replacement and compatibility across different setups.

Utilizing genuine Festo standard spare parts, the cylinder incorporates universal sealing components that simplify maintenance procedures. This approach ensures convenience and reliability when performing upkeep tasks.

The cylinder supports a wide working pressure range, maintaining stable operation even during frequent high-speed reciprocating cycles. This capability makes it ideal for applications demanding repetitive motion at fast speeds.

Its standard mounting hole layout enables multi-directional installation, providing flexibility in configuring automated equipment. This adaptability allows engineers to optimize spatial arrangements and enhance overall system design.

Technical Parameters:

Applications:

Automated assembly lines utilize short-stroke drives for various tasks such as clamping, positioning, pushing, and ejecting small workpieces. These linear actions are essential for precise and efficient operation within the production process.

In packaging machinery, short-stroke drives play a critical role in functions like bag cutting, box pressing, label pressing, and material feeding. Their rapid and accurate movements help maintain a high throughput rate while ensuring consistent packaging quality.

Electronic equipment manufacturing benefits from these drives as they assist in PCB fixture clamping, component pick-and-place operations, and small jig positioning. This enables highly accurate assembly of electronic components on printed circuit boards.

Printing and labeling machines depend on short-stroke drives for precise film tension adjustment, print head pressing, and conveyor stop limiting. These actions contribute to the overall print quality and efficient workflow management.

In food processing machinery, short-stroke drives facilitate small material sorting, bottle positioning, and cover pressing mechanisms. Their precise motion control enhances product handling and packaging safety.

Automation test equipment employs short-stroke drives in fixture clamping, limit positioning, and small displacement testing drives. These applications ensure rigorous and repeatable testing processes in automated environments.

Textile machinery uses short-stroke drives for fabric clamping, yarn tension adjustment, and small cutting actuators. These precise controls help maintain the quality and efficiency of textile production.

Medical automation equipment relies on short-stroke motions for small jig positioning and disposable product assembly. The accurate and reliable operation of these drives supports the production of high-quality medical devices.
