Product Description:

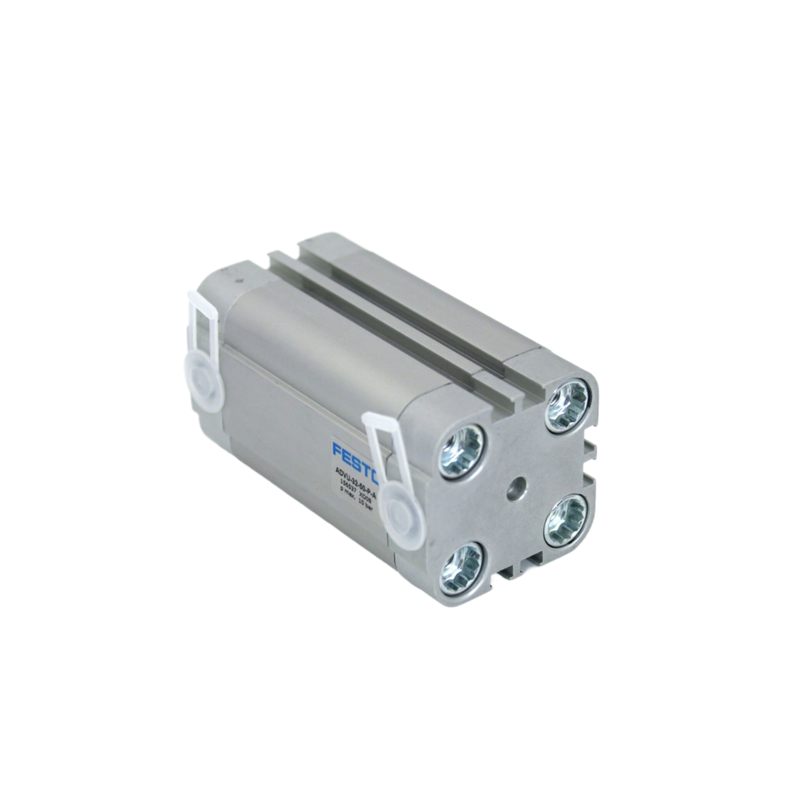

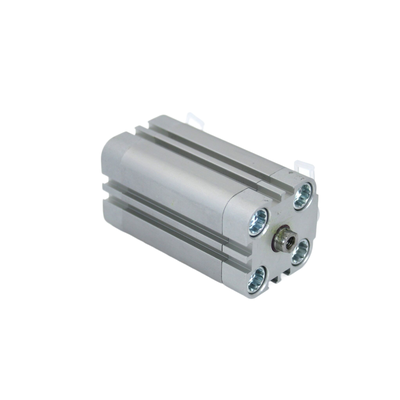

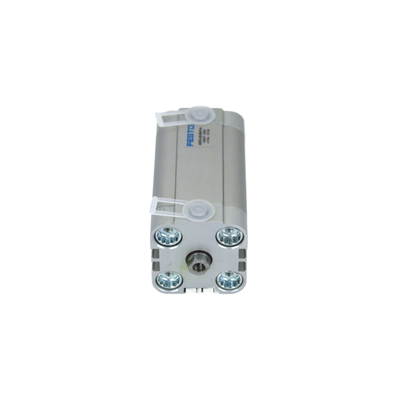

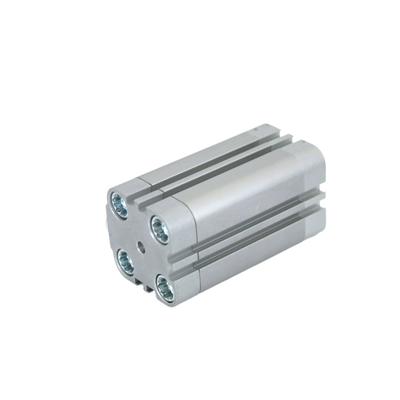

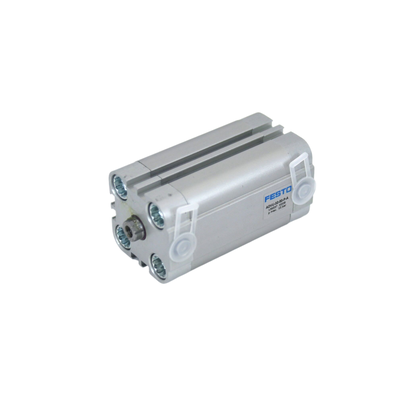

The Festo ADVU-25 series features a compact, double-acting pneumatic cylinder designed for efficient performance. This cylinder comes with a bore size of 25mm and offers standard stroke lengths of 5mm, 10mm, 15mm, 20mm, and 25mm to suit various application needs.
There are two available variants for sensor mounting: the P-A version and the A-P-A version. Both versions are engineered to provide reliable and consistent output force, ensuring stable operation in automated systems.
Constructed with a lightweight aluminum alloy body, the ADVU-25 series incorporates a short block, compact design which makes it ideal for use in space-constrained environments. Its interchangeable spare parts enhance maintenance convenience and reduce downtime.
Widely utilized in automated machinery as a pneumatic linear drive unit, these original Festo compact cylinders come with genuine part numbers including 156522, 156523, 156524, 156525, 156526, 156608, 156609, 156610, 156611, and 156612.
Features:
This ultra-compact block structure offers a significantly shorter installation length compared to standard cylinders, effectively saving internal space within your equipment. Its streamlined design is ideal for applications where space is limited.
Featuring a double-acting drive design, the cylinder provides stable push and pull output forces with smooth, low-friction piston movement. This ensures reliable and consistent performance during operation.
The product comes in two mainstream model variants: P-A (basic) and A-P-A, which includes an integrated sensor groove designed for proximity switches, enhancing functionality and monitoring capabilities.
Built with a high-strength anodized aluminum cylinder barrel, it offers excellent resistance against corrosion and wear, resulting in a long service life even under demanding conditions.
The cylinder features a standard bore size of 25 mm and is available with a full range of stroke options, including 5, 10, 15, 20, and 25 mm. Its uniform installation dimensions allow for easy replacement and compatibility across various setups.
Utilizing standard Festo genuine spare parts and universal sealing components, the cylinder offers convenient maintenance, reducing downtime and ensuring continuous operation.
It supports a wide working pressure range and maintains stable operation even under frequent high-speed reciprocating cycles, making it suitable for dynamic and demanding industrial environments.
The standard mounting hole layout enables multi-directional installation, providing flexible options for automated equipment configurations and enhancing overall layout adaptability.
Technical Parameters:
| Product Series |
Festo ADVU Compact Pneumatic Cylinder |
| Drive Type |
Double Acting |
| Ambient Temperature |
-20°C ~ +80°C |
| Bore Size |
25 Mm |
| Model Versions |
P-A (Standard) / A-P-A (With Sensor Groove) |
| Working Pressure Range |
0.2 ~ 1.0 MPa |
Applications:
In automated assembly lines, short-stroke drives play a crucial role in various tasks such as clamping, positioning, pushing, and ejecting small workpieces. Their precise linear action ensures efficiency and accuracy in the handling of miniature components.
Packaging machinery also benefits from these drives, particularly in processes like bag cutting, box pressing, label pressing, and material feeding. The short-stroke movements enable quick and reliable operation suitable for high-speed packaging environments.
In the field of electronic equipment manufacturing, short-stroke drives are used for clamping printed circuit board fixtures, picking and placing components, and positioning small jigs. These applications demand precision to ensure the quality and reliability of electronic assemblies.
Printing and labeling machines utilize short-stroke drives for adjusting film tension, pressing print heads, and limiting conveyor stops. These functions enhance the accuracy and consistency of printing and labeling processes.
Food processing machinery incorporates short-stroke drives for sorting small materials, positioning bottles, and operating cover pressing mechanisms. The compact and rapid movements facilitate smooth workflow in food production lines.
Automation test equipment relies on these drives for fixture clamping, limit positioning, and small displacement testing operations. Their precise motion control contributes to effective and repeatable testing procedures.
Textile machinery employs short-stroke drives in tasks such as fabric clamping, yarn tension adjustment, and small cutting actuations. These applications demand delicate handling to maintain fabric quality and process efficiency.
In medical automation equipment, short-stroke drives are essential for positioning small jigs and assembling disposable products. Their controlled short-stroke motion ensures the precise assembly required in medical device manufacturing.
