Product Description:

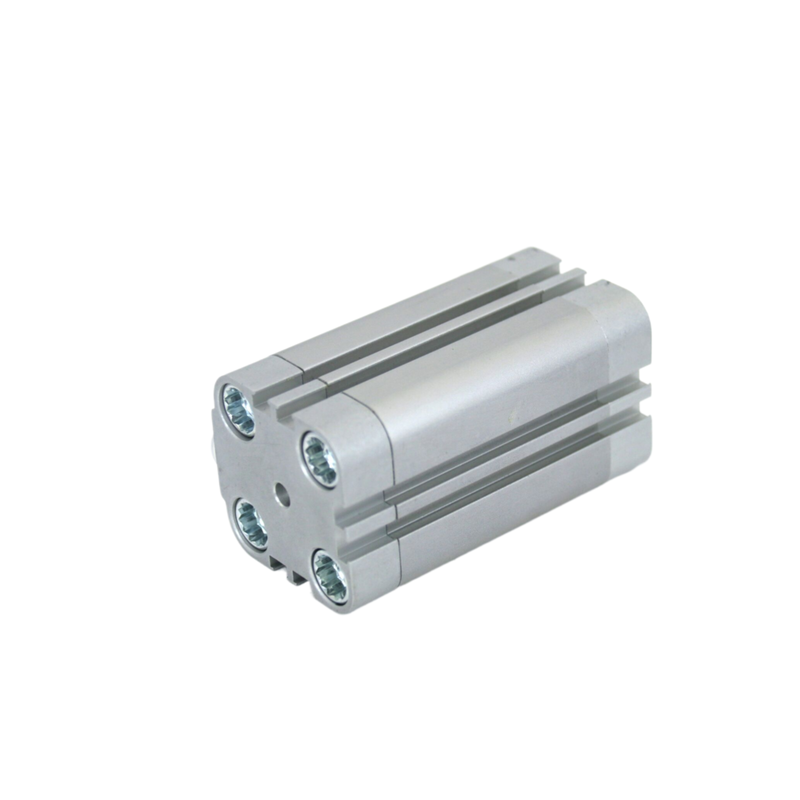

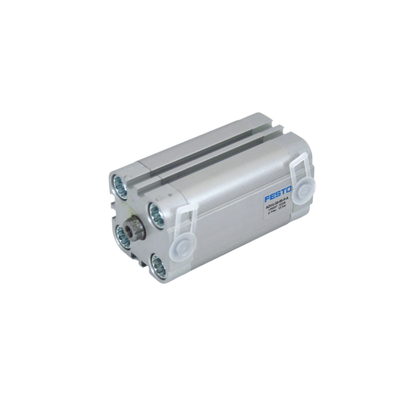

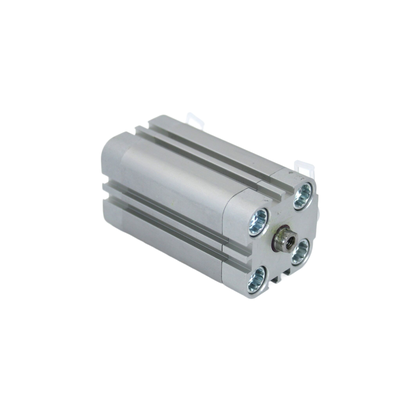

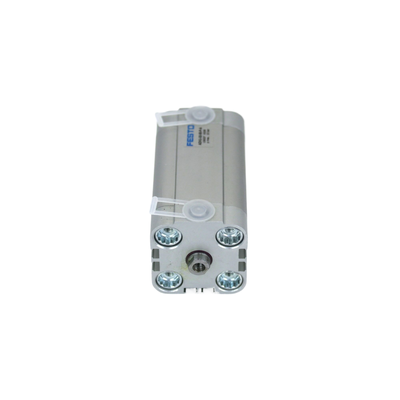

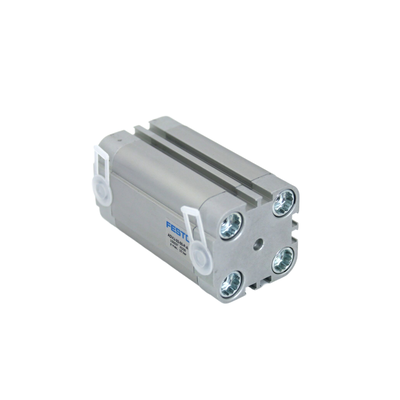

The Festo ADVU-25 series is a compact, double-acting pneumatic cylinder featuring a bore size of 25mm. It offers standard stroke lengths of 5, 10, 15, 20, and 25mm, catering to various application requirements. This series comes in two versions: P-A and A-P-A, both designed to facilitate sensor mounting efficiently.
Designed with a short block and compact structure, the cylinder is constructed from a lightweight aluminum alloy body. This design ensures a stable output force while keeping the overall weight low. Its modular build allows for interchangeable spare parts, making maintenance and replacements straightforward.
This pneumatic cylinder is widely utilized in automated machinery as a linear drive unit, highlighting its reliability and performance. The original Festo genuine compact cylinder is available under part numbers 156522, 156608, 156523, 156609, 156524, 156610, 156525, 156611, 156526, and 156612, ensuring authentic and high-quality components for industrial use.
Features:
The ultra-compact block structure of this cylinder offers a significantly shorter installation length compared to standard cylinders. This design helps to save valuable internal space within the equipment, making it ideal for applications where space is limited.
Featuring a double-acting drive mechanism, the cylinder provides a stable push and pull output force. The piston moves smoothly with low friction, ensuring reliable and efficient operation throughout its use.
There are two main model variants available: the P-A (basic) version and the A-P-A version, which includes an integrated sensor groove designed for proximity switches. This allows for easier integration of sensors and enhanced automation capabilities.
The cylinder barrel is constructed from high-strength anodized aluminum, which offers excellent resistance to corrosion and wear. This material choice contributes to the cylinder’s long service life, even in demanding environments.
Available with a standard bore size of 25mm, the cylinder offers a full range of stroke options: 5mm, 10mm, 15mm, 20mm, and 25mm. All variants follow unified installation dimensions, allowing for easy replacement and interchangeability.
Equipped with standard Festo genuine spare parts and universal sealing components, the cylinder is designed for convenient maintenance. This ensures reliable performance and reduces downtime during servicing.
The cylinder supports a wide working pressure range and maintains stable operation under frequent and high-speed reciprocating cycles. This makes it suitable for demanding industrial applications requiring consistent performance.
Additionally, the standard mounting hole layout enables multi-directional installation, providing greater flexibility when designing automated equipment layouts. This facilitates easier integration into various systems and configurations.
Technical Parameters:
| Bore Size |
25 Mm |
| Model Versions |
P-A (Standard) / A-P-A (With Sensor Groove) |
| Drive Type |
Double Acting |
| Working Pressure Range |
0.2 ~ 1.0 MPa |
| Ambient Temperature |
-20°C ~ +80°C |
| Product Series |
Festo ADVU Compact Pneumatic Cylinder |
Applications:
Automated assembly lines involve various precise actions such as clamping, positioning, pushing, and ejecting small workpieces. These processes typically utilize linear motion to achieve efficient and accurate handling of components.
In packaging machinery, short-stroke drives play a crucial role in operations like bag cutting, box pressing, label application, and material feeding. These mechanisms ensure fast and reliable packaging processes.
Electronic equipment manufacturing benefits from automation in tasks such as PCB fixture clamping, component pick and place, and small jig positioning. These actions contribute to enhancing the accuracy and speed of electronic assembly.
Printing and labeling machines rely on automated adjustments including film tension control, print head pressing, and conveyor stopping at precise limits. These capabilities help maintain high-quality print output and efficient material handling.
Food processing machinery incorporates automation for activities like small material sorting, bottle positioning, and cover pressing mechanisms. These automated motions improve product consistency and processing speed.
Automation test equipment utilizes fixture clamping, limit positioning, and small displacement testing drives to perform precise evaluations. These features aid in maintaining strict quality control standards.
Textile machinery automation focuses on fabric clamping, yarn tension adjustment, and the operation of small cutting actuators. Such automation increases production efficiency and fabric quality.
In medical automation equipment, small jig positioning and short-stroke motions are used for assembling disposable products. These mechanisms ensure accuracy and hygiene in medical device manufacturing.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.
If you encounter any issues during the installation or operation of the pneumatic cylinder, ensure that all connections are secure and that the system is operating within the specified pressure and temperature ranges. Regular maintenance, including lubrication and inspection for wear or damage, is recommended to extend the life of the cylinder.
Replacement parts and accessories are available to keep your pneumatic cylinder operating at peak performance. When ordering parts, please have the model number and specifications of your cylinder handy to ensure compatibility.
We also offer comprehensive after-sales services, including repair, refurbishment, and customization options to meet your specific application needs. Our experienced technical team is available to assist with troubleshooting, system integration, and performance optimization.
For detailed technical documentation, including CAD drawings, performance data, and certification information, please consult our official website or product catalog. Staying informed about product updates and best practices will help you maximize the benefits of your Piston Pneumatic Cylinder system.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static bubble wrap and placed inside a custom-fitted foam insert to prevent movement and damage. The product is then enclosed in a sturdy, corrugated cardboard box designed to withstand shocks and impacts.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Depending on your location and preference, we offer various shipping methods including standard, expedited, and express services. All packages are labeled clearly with handling instructions and product information to facilitate smooth customs clearance and delivery.
We prioritize quality and customer satisfaction, ensuring that your Piston Pneumatic Cylinder arrives in perfect condition, ready for immediate use in your applications.
