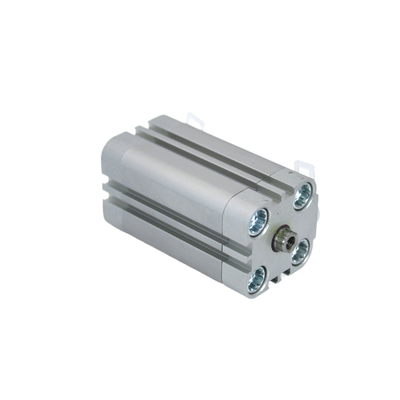

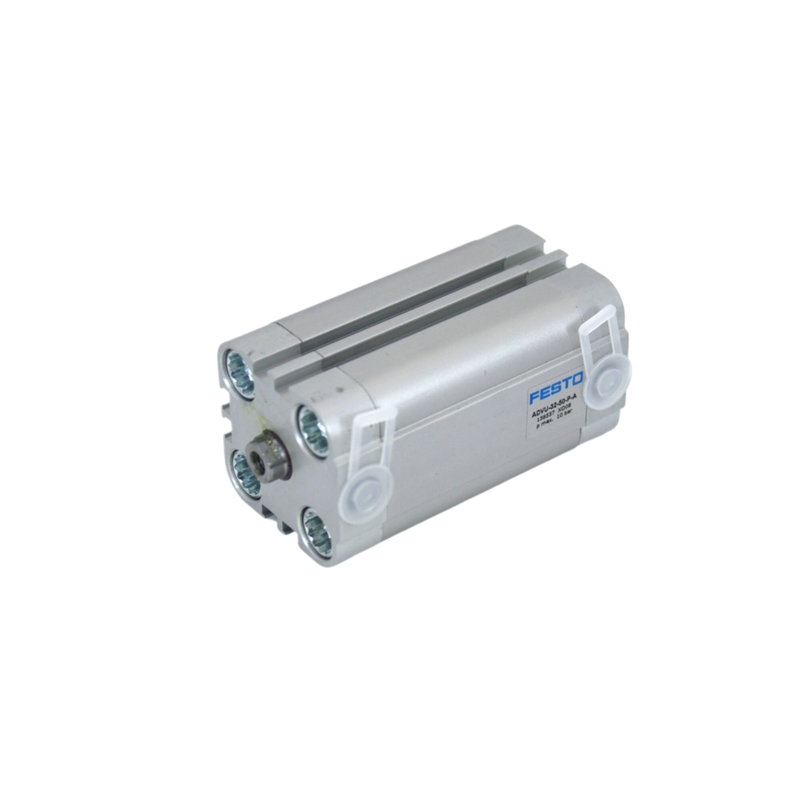

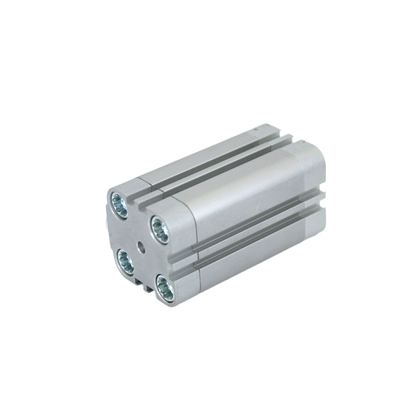

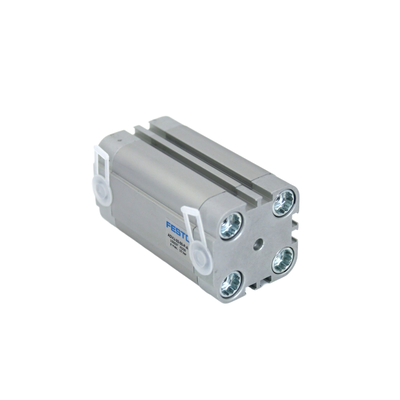

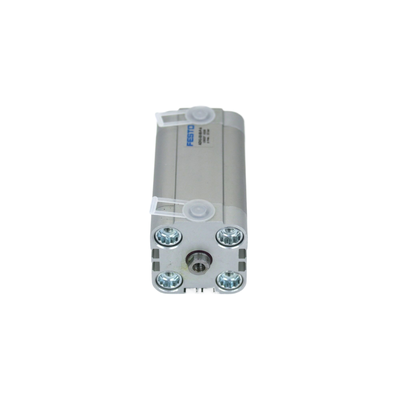

Fast Cycling M5 Port External Thread 25mm Bore 15mm Stroke FESTO ADVU-25-15-A-P-A 156610 Pneumatic Rod Cylinder Double-Acting with Magnetic Ring ISO 6432 for Assembly Line Stopper

Product Description:

The Festo ADVU-25 series consists of compact double-acting pneumatic cylinders featuring a bore size of 25mm. These cylinders come with standard stroke lengths of 5, 10, 15, 20, and 25 millimeters, providing flexibility to suit various application requirements.

There are two available sensor mounting versions for these cylinders: P-A and A-P-A. Designed with a short block and compact structure, the cylinders boast a lightweight aluminum alloy body that ensures durability while maintaining easy handling.

Offering a stable output force, the ADVU-25 series cylinders include interchangeable spare parts, which make maintenance and replacements straightforward. They are widely employed as pneumatic linear drive units in automated machinery across different industries.

The original Festo genuine compact cylinder part numbers associated with this series include 156522, 156523, 156524, 156525, 156526, 156608, 156609, 156610, 156611, and 156612.

Features:

The ultra-compact block structure of this cylinder results in a shorter installation length compared to standard cylinders. This design helps save valuable internal space within equipment, making it ideal for applications with space constraints.

Featuring a double-acting drive design, the cylinder provides a stable push and pull output force. Its piston moves smoothly with low friction, ensuring reliable and efficient operation.

There are two main model variations available: the P-A (basic) and the A-P-A, which includes an integrated sensor groove designed for proximity switches. These options allow for flexible customization based on application needs.

Constructed from high-strength anodized aluminum, the cylinder barrel is both anti-corrosive and wear-resistant. This durability contributes to an extended service life, reducing the need for frequent replacements.

The cylinder features a standard bore size of 25mm with a comprehensive range of stroke lengths including 5, 10, 15, 20, and 25mm. Unified installation dimensions make it straightforward to replace or upgrade existing components.

Utilizing genuine Festo standard spare parts and universal sealing elements, maintenance is convenient and hassle-free. This ensures consistent performance and easy servicing.

Designed to operate across a wide range of working pressures, the cylinder maintains stable performance even during frequent high-speed reciprocating cycles, making it suitable for demanding industrial environments.

With a standard mounting hole layout, the cylinder supports multi-directional installation. This flexibility enhances adaptability in automated equipment layouts, optimizing space and function.

Technical Parameters:

Applications:

Automated assembly lines benefit greatly from the use of short-stroke drives for various operations such as clamping, positioning, pushing, and ejecting small workpieces with precise linear actions. These drives contribute to efficient handling and processing of components in high-speed production environments.

In packaging machinery, short-stroke drives are essential for tasks like bag cutting, box pressing, label pressing, and material feeding. Their compact size and rapid movement capabilities enable accurate and consistent packaging processes.

Electronic equipment manufacturing utilizes these drives for activities including PCB fixture clamping, component pick and place, and small jig positioning. The precision provided ensures reliable assembly and testing of electronic parts.

Printing and labeling machines employ short-stroke drives to control film tension adjustment, print head pressing, and conveyor stop limits. This enhances print quality and operational control within the production line.

In the food processing industry, small material sorting, bottle positioning, and cover pressing mechanisms rely on short-stroke drives. These applications demand hygiene and precision, which these drives effectively deliver.

Automation test equipment uses short-stroke drives for fixture clamping, limit positioning, and small displacement testing drives. These ensure accurate and repeatable testing procedures necessary for quality control.

Textile machinery incorporates short-stroke drives for fabric clamping, yarn tension adjustment, and small cutting actuators. This enables smooth and precise operations critical to fabric processing and manufacturing.

Lastly, medical automation equipment benefits from short-stroke drives for small jig positioning and the assembly of disposable products through short-stroke motion. This facilitates delicate and hygienic handling required in medical device production.
