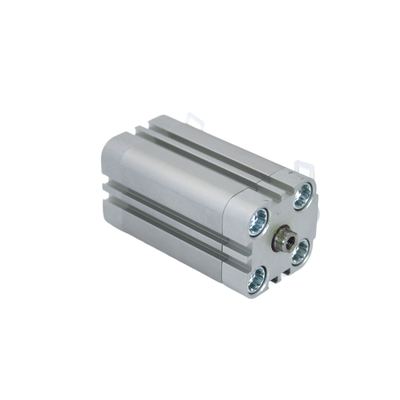

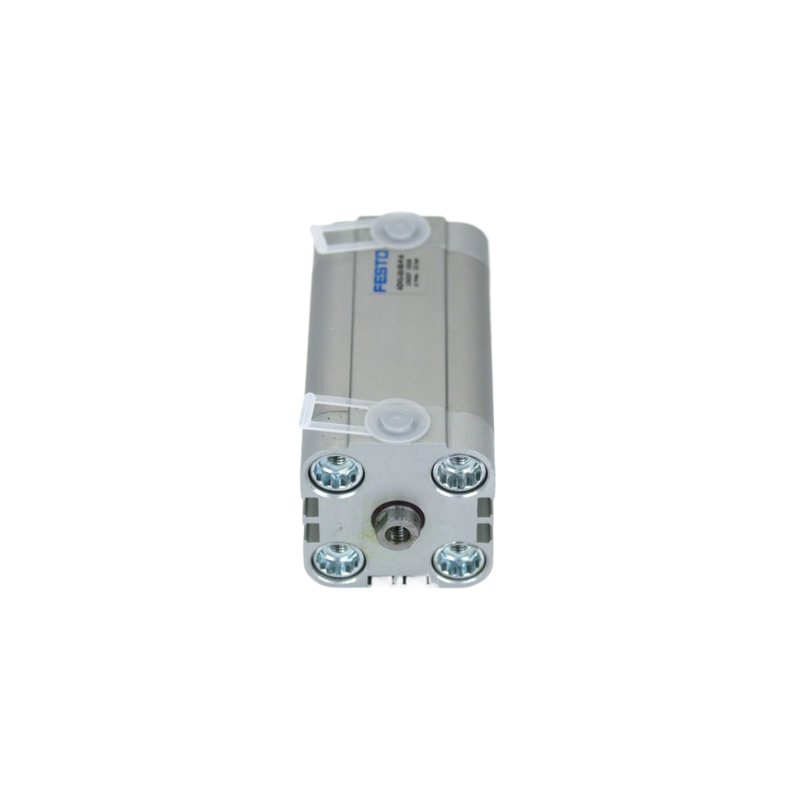

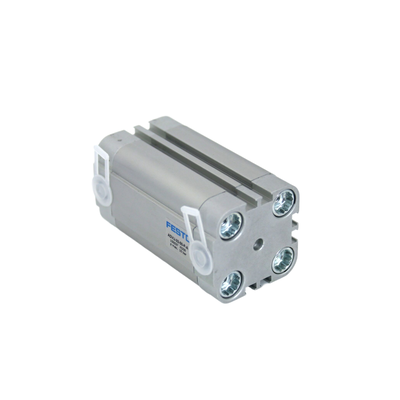

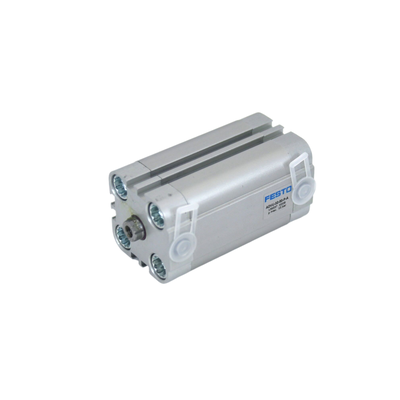

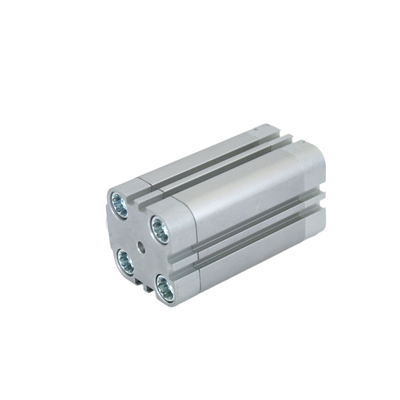

Product Description:
The Festo ADVU-25 series is a compact double-acting pneumatic cylinder designed with a bore size of 25mm. It offers standard stroke lengths of 5mm, 10mm, 15mm, 20mm, and 25mm to accommodate various application needs.
This series features two versions, P-A and A-P-A, which support sensor mounting for enhanced operational control. Its short block compact design and lightweight aluminum alloy construction contribute to a stable output force while maintaining durability.
The components are interchangeable, making maintenance and replacement straightforward. This pneumatic linear drive unit is widely utilized in automated machinery due to its reliable performance and versatility.
The original Festo genuine compact cylinder part numbers for this series include 156522, 156608, 156523, 156609, 156524, 156610, 156525, 156611, 156526, and 156612.
Features:
The ultra-compact block structure offers a shorter installation length compared to standard cylinders, effectively saving internal space within equipment. This design is ideal for environments where space is at a premium.
Featuring a double-acting drive design, the cylinder delivers stable push and pull output forces. The piston moves smoothly with low friction, ensuring reliable and efficient performance during operation.
There are two main model variants available: the P-A (basic) version and the A-P-A version, which includes an integrated sensor groove designed for proximity switches. These options provide flexibility to meet various application needs.
Constructed from high-strength anodized aluminum, the cylinder barrel is both corrosion-resistant and wear-resistant, contributing to a long service life even in demanding conditions.
The standard bore size is 25mm, with a full range of stroke lengths including 5, 10, 15, 20, and 25mm. The unified installation dimensions allow for easy replacement and compatibility across different setups.
Equipped with standard genuine Festo spare parts and universal sealing components, the cylinder is designed for convenient maintenance and reliability, reducing downtime.
It operates effectively over a wide working pressure range and maintains stable performance under frequent high-speed reciprocating cycles, making it suitable for demanding industrial applications.
Additionally, the cylinder features a standard mounting hole layout which supports multi-directional installation, providing enhanced flexibility for automated equipment layouts.
Technical Parameters:
| Drive Type |
Double Acting |
| Model Versions |
P-A (Standard) / A-P-A (With Sensor Groove) |
| Working Pressure Range |
0.2 ~ 1.0 MPa |
| Bore Size |
25 Mm |
| Product Series |
Festo ADVU Compact Pneumatic Cylinder |
| Ambient Temperature |
-20°C ~ +80°C |
Applications:
Automated assembly lines utilize various mechanisms for tasks such as clamping, positioning, pushing, and ejecting small workpieces. These operations often involve precise linear movements to ensure efficiency and accuracy.
In packaging machinery, short-stroke drives are commonly employed for functions like bag cutting, box pressing, label pressing, and material feeding. These drives enable fast and reliable packaging processes.
Electronic equipment manufacturing involves the use of specialized components for PCB fixture clamping, component pick-and-place operations, and small jig positioning. These applications demand high precision to maintain quality standards.
Printing and labeling machines require accurate control for film tension adjustment, print head pressing, and conveyor stop limits. These tasks ensure consistent print quality and proper material handling.
Food processing machinery incorporates mechanisms for small material sorting, bottle positioning, and cover pressing. These systems are designed to handle delicate products with care and efficiency.
Automation test equipment is equipped with fixture clamping, limit positioning, and small displacement testing drives to conduct precise and repeatable tests on various components.
Textile machinery benefits from fabric clamping, yarn tension adjustment, and small cutting actuators, contributing to improved fabric handling and production accuracy.
Medical automation equipment uses small jig positioning and short-stroke motion capabilities for assembling disposable products, ensuring hygiene and precise assembly processes.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation, it is important to follow the recommended installation, maintenance, and troubleshooting guidelines.
Installation: Before installation, verify that the cylinder specifications match your application requirements. Mount the cylinder securely, ensuring proper alignment to prevent side loads that may cause premature wear. Connect the pneumatic lines according to the schematic, and check for any leaks.
Maintenance: Regular maintenance is crucial for extending the life of your pneumatic cylinder. Periodically inspect the cylinder for signs of wear, damage, or leaks. Lubricate moving parts as recommended in the product manual to reduce friction and prevent corrosion. Replace seals and other consumable parts as needed to maintain optimal performance.
Troubleshooting: Common issues with pneumatic cylinders include air leaks, reduced speed, and sticking or binding. Check all connections for tightness and inspect seals for damage. Ensure the air supply is clean and dry, and that the pressure is within the specified range. If performance issues persist, consult the detailed troubleshooting section in the product documentation.
For additional support, refer to the product manual and technical datasheets provided with your Piston Pneumatic Cylinder. Our technical support team is available to assist with complex issues and provide guidance on custom applications.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any damage or scratches. It is then placed in a sturdy, custom-fitted cardboard box that provides cushioning and support.
For added safety, foam inserts or padding materials are used inside the box to minimize movement and absorb shocks. The packaging is sealed securely with reinforced tape and labeled with handling instructions such as “Fragile” and “This Side Up.”
Shipping is carried out through reliable courier services that offer tracking and timely delivery. We provide multiple shipping options including standard, expedited, and express services to meet customer needs. All shipments include a detailed packing list and a certificate of quality inspection.
For bulk orders, pallets are used with shrink wrap and corner protectors to ensure stability and protection during large-scale transportation. We also comply with international shipping standards and documentation to facilitate smooth customs clearance.
Our commitment is to deliver the piston pneumatic cylinders in perfect condition, ready for immediate installation and use.
