For Automatic Dispensing – ADVU-25-10-A-P-A FESTO 156609 25x10mm Male Thread Compact Circular Cylinder M5 Port Double-Acting Magnetic Piston for Sensor Feedback ISO 6432

Product Description:

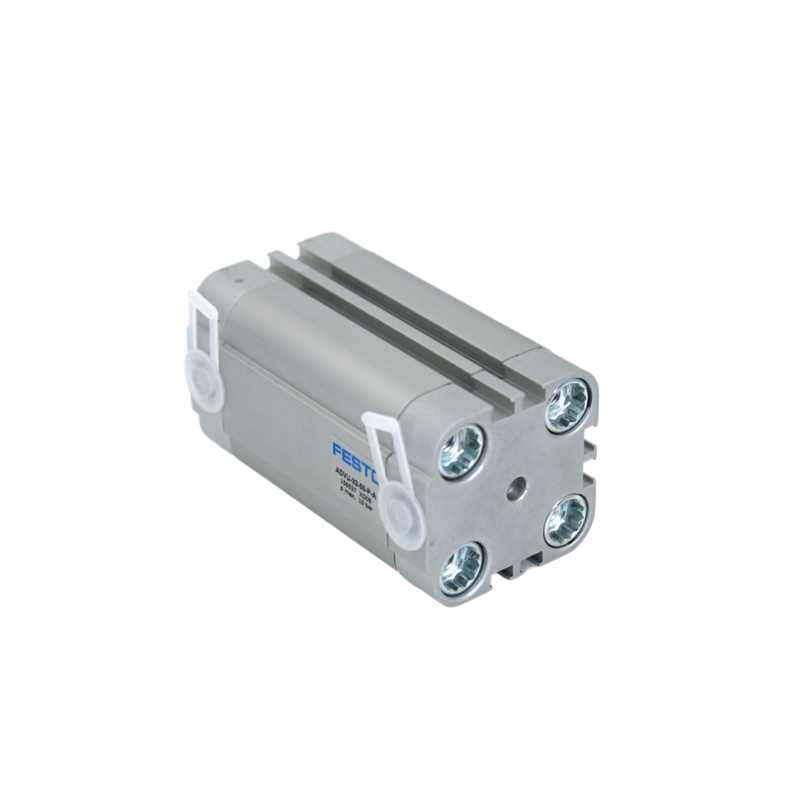

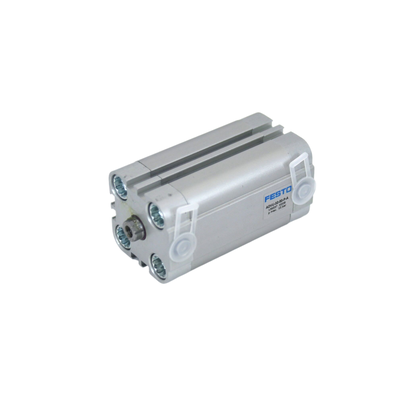

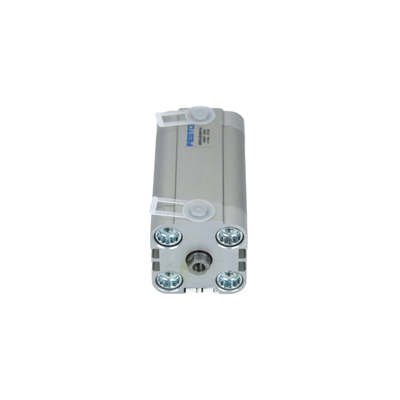

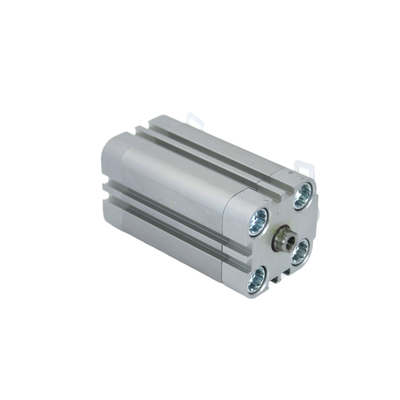

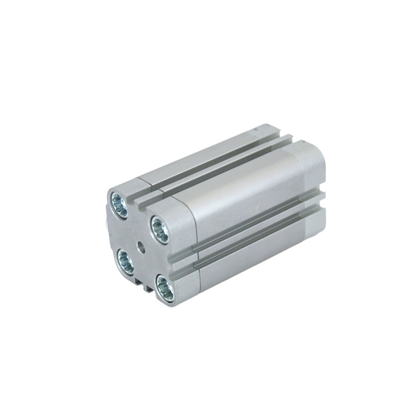

The Festo ADVU-25 series features a compact, double-acting pneumatic cylinder designed with a bore size of 25mm. This series offers standard stroke lengths of 5, 10, 15, 20, and 25 millimeters, catering to various application needs.

There are two available versions for sensor mounting: P-A and A-P-A. The cylinder's short block and compact design, combined with its lightweight aluminum alloy construction, ensure a stable output force for reliable performance in automated systems.

This pneumatic cylinder benefits from interchangeable spare parts, enhancing maintenance efficiency. It is commonly used as a pneumatic linear drive unit in a wide range of automated machinery.

The original Festo genuine compact cylinder part numbers for the ADVU-25 series include: 156522, 156523, 156524, 156525, 156526, 156608, 156609, 156610, 156611, and 156612.

Features:

This product features an ultra-compact block structure, resulting in a shorter installation length compared to standard cylinders. This design effectively saves internal space within the equipment, making it ideal for applications with limited room.

It employs a double-acting drive mechanism that delivers a stable push and pull output force. The piston movement is smooth and benefits from low friction, ensuring reliable and efficient operation over time.

There are two mainstream model variants available: the P-A (basic) model and the A-P-A model, which includes an integrated sensor groove tailored for proximity switches. This flexibility allows users to select the most suitable option according to their needs.

Constructed with a high-strength anodized aluminum cylinder barrel, the product boasts anti-corrosion and wear-resistant properties. These features contribute to a long service life, enhancing durability in various industrial environments.

The standard bore size is 25mm, with a comprehensive range of stroke options including 5mm, 10mm, 15mm, 20mm, and 25mm. Additionally, unified installation dimensions facilitate easy replacement and compatibility with existing systems.

Equipped with standard Festo genuine spare parts and universal sealing components, maintenance is convenient and straightforward. This ensures the longevity and consistent performance of the product.

Designed to operate within a wide working pressure range, the cylinder maintains stable functionality even under frequent high-speed reciprocating cycles, making it suitable for demanding industrial applications.

The standard mounting hole layout supports multi-directional installation, providing great flexibility for automated equipment layouts. This adaptability simplifies integration into diverse machinery setups.

Technical Parameters:

Applications:

Automated assembly lines benefit greatly from precision mechanisms that handle tasks such as clamping, positioning, pushing, and ejecting small workpieces. These actions often require linear movements to ensure accuracy and efficiency throughout the production process.

In the realm of packaging machinery, components are used for processes like bag cutting, box pressing, label application, and material feeding. These operations typically involve short-stroke drives which enable quick and reliable motions for high-speed packaging lines.

Electronic equipment manufacturing utilizes automation elements for PCB fixture clamping, component pick and place actions, as well as small jig positioning. These precise movements are crucial for assembling delicate electronic parts efficiently.

Printing and labeling machines incorporate automation to manage film tension adjustments, print head pressing, and conveyor stop limits. Such mechanisms are essential for maintaining the quality and consistency of printed materials.

Food processing machinery employs automated solutions for tasks like small material sorting, bottle positioning, and cover pressing mechanisms. These applications often require gentle but precise handling to maintain product integrity.

Automation test equipment relies on fixture clamping, limit positioning, and small displacement testing drives to conduct accurate and repeatable measurements. This ensures that products meet quality standards before reaching the market.

Textile machinery implements automation in fabric clamping, yarn tension adjustments, and small cutting actuators. These functions help enhance production efficiency and maintain consistency in textile manufacturing.

Medical automation equipment utilizes small jig positioning and short-stroke motions for assembling disposable products. Precision and reliability in these applications are critical to ensure the safety and effectiveness of medical devices.
