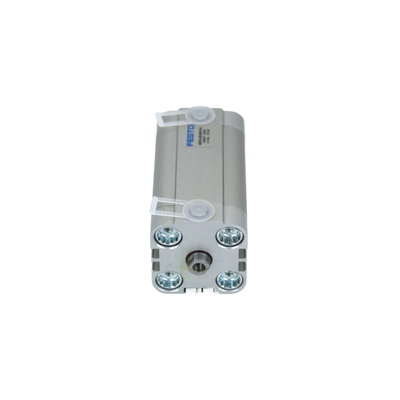

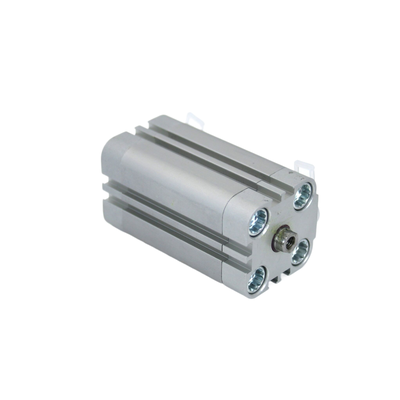

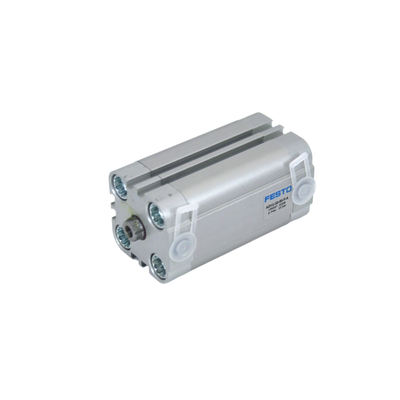

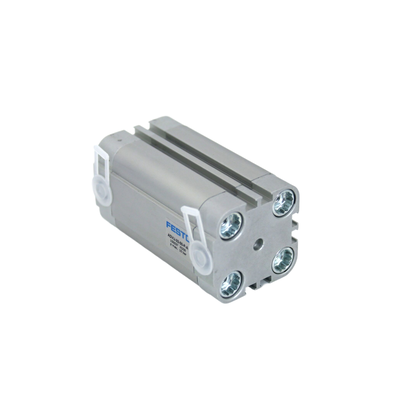

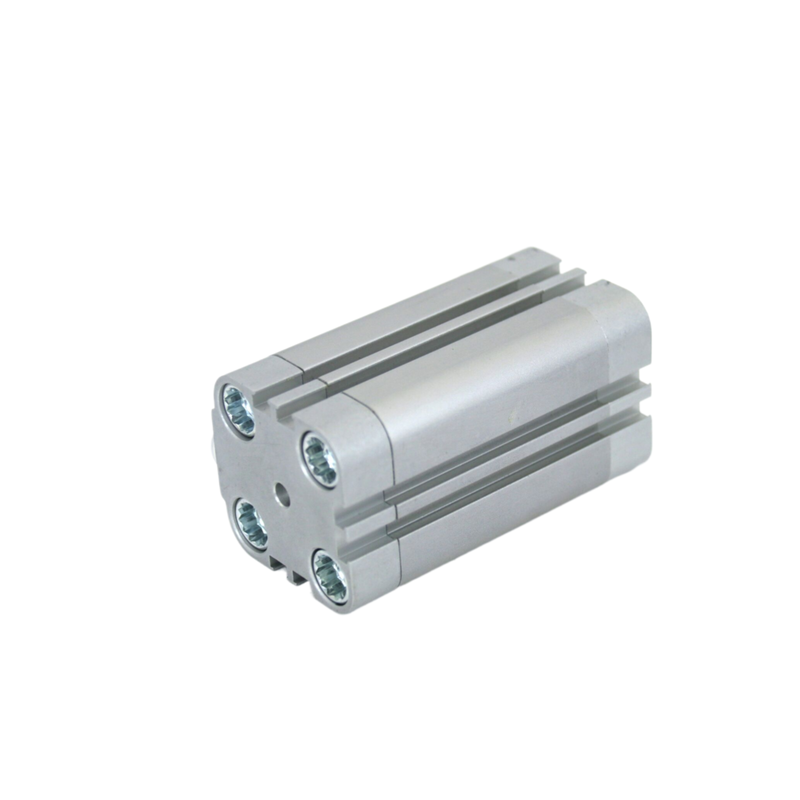

M5 Port FESTO ADVU-25-5-A-P-A 156608 25mm Bore 5mm Stroke Male Thread Miniature Double-Acting Cylinder with Magnetic Piston for Pick-and-Place ISO 6432

Product Description:

The Festo ADVU-25 series features a compact double-acting pneumatic cylinder with a bore size of 25mm. It offers standard stroke lengths of 5, 10, 15, 20, and 25mm, catering to various application needs. This series is available in two different versions, P-A and A-P-A, which support sensor mounting options for enhanced control and monitoring.

Designed with a short block and compact structure, the cylinder boasts a lightweight aluminum alloy body. This construction not only ensures durability but also delivers stable output force during operation. The cylinder’s design allows for easy interchangeability of spare parts, making maintenance and replacements efficient and cost-effective.

The ADVU-25 series is widely used in automated machinery as a pneumatic linear drive unit, providing reliable performance in numerous industrial applications. These original Festo genuine compact cylinders come with part numbers 156522, 156608, 156523, 156609, 156524, 156610, 156525, 156611, 156526, and 156612, ensuring authenticity and quality assurance.

Features:

The ultra-compact block structure of this cylinder offers a significantly shorter installation length compared to standard cylinders. This design effectively saves internal space within the equipment, making it ideal for applications where space is limited.

Featuring a double-acting drive design, the cylinder provides stable push and pull output forces. Its piston moves smoothly with low friction, ensuring efficient and reliable operation throughout its usage.

There are two main model variants available: the P-A (basic version) and the A-P-A, which includes an integrated sensor groove designed for proximity switches. This versatility allows users to choose the model that best fits their sensing requirements.

Constructed with a high-strength anodized aluminum cylinder barrel, the product offers excellent resistance to corrosion and wear. This durable material contributes to the long service life of the cylinder, even in demanding environments.

The cylinder comes with a standard bore of 25mm and offers a complete range of stroke options including 5, 10, 15, 20, and 25mm. The unified installation dimensions facilitate easy replacement and compatibility across different setups.

Utilizing genuine Festo standard spare parts and universal sealing components, the cylinder ensures convenient maintenance and availability of replacements. This standardization helps minimize downtime during servicing.

It supports a wide working pressure range and maintains stable operation during frequent high-speed reciprocating cycles. This makes it suitable for dynamic automated systems that require consistent performance under demanding conditions.

The standard mounting hole layout allows for multi-directional installation, providing flexibility in configuring automated equipment layouts. This feature enhances adaptability within various industrial automation setups.

Technical Parameters:

Applications:

In automated assembly lines, various tasks such as clamping, positioning, pushing, and ejection of small workpieces are efficiently executed using linear motion mechanisms. These precise actions help streamline production processes and improve overall operational efficiency.

Packaging machinery utilizes short-stroke drives for functions like bag cutting, box pressing, label pressing, and material feeding. These compact and reliable drives ensure accurate and consistent packaging operations essential for product integrity.

Within the field of electronic equipment, automation components play a critical role in PCB fixture clamping, component pick-and-place operations, as well as positioning of small jigs. These applications demand high precision and repeatability in electronic manufacturing.

Printing and labeling machines depend on specialized mechanisms for tasks such as adjusting film tension, pressing the print head, and controlling conveyor stops with limit functions. These features contribute to maintaining print quality and production flow.

Food processing machinery incorporates automation for small material sorting, bottle positioning, and cover pressing mechanisms. These actions are vital to ensure consistent product handling and hygiene standards within the food industry.

Automation test equipment employs fixture clamping, limit positioning, and small displacement testing drives to accurately evaluate product specifications. This precision testing is essential for maintaining quality control across various manufacturing sectors.

In textile machinery, automated processes include fabric clamping, yarn tension adjustment, and activation of small cutting actuators. These mechanisms improve the efficiency and quality of textile production operations.

Medical automation equipment benefits from precise small jig positioning and short-stroke motion used in the assembly of disposable products. These technologies ensure reliability and hygiene in the production of medical devices.
