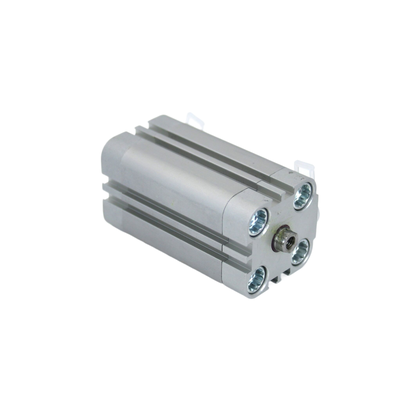

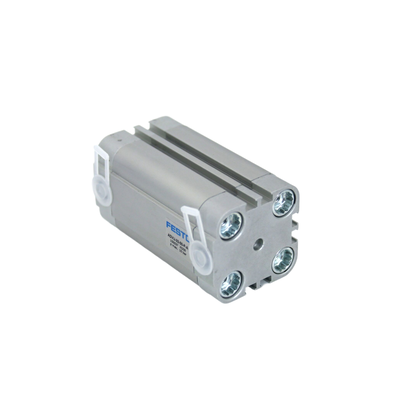

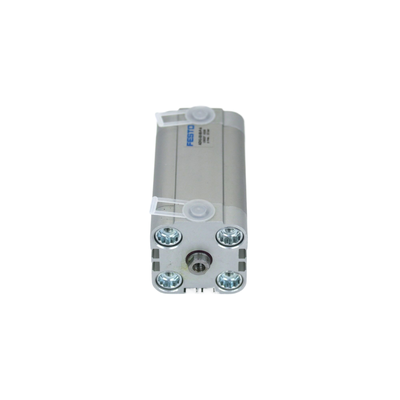

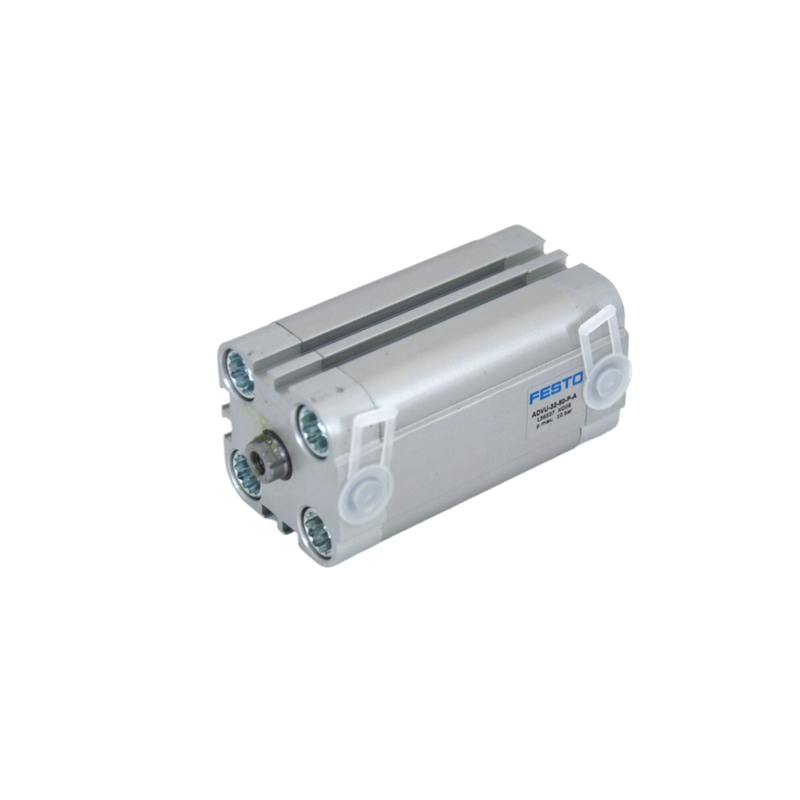

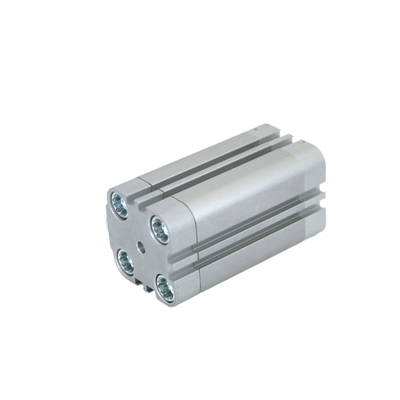

25mm Bore 5mm Stroke FESTO ADVU-25-5-P-A 156522 Internal Thread Compact Pneumatic Linear Cylinder for Parts Clamping M5 Port Double-Acting Magnetic Piston ISO 6432

Product Description:

The Festo ADVU-25 series is a line of compact, double-acting pneumatic cylinders designed for efficient linear motion applications. Featuring a bore size of 25mm, these cylinders come with standard stroke options of 5mm, 10mm, 15mm, 20mm, and 25mm, allowing for versatile use in various automated machinery setups.

Available in two sensor mounting versions—P-A and A-P-A—these cylinders offer flexibility for integration with different sensor configurations. Their short block, compact design is built with a lightweight aluminum alloy body, providing a stable output force while maintaining a low overall weight.

Parts within the ADVU-25 series are interchangeable, making maintenance and replacements straightforward. Due to their reliable performance and design quality, these cylinders are widely utilized as pneumatic linear drive units in a variety of automated industrial applications.

The original Festo genuine parts are identified with the following part numbers: 156522, 156608, 156523, 156609, 156524, 156610, 156525, 156611, 156526, and 156612, ensuring authenticity and compatibility for all users.

Features:

This cylinder features an ultra-compact block structure, which results in a shorter installation length compared to standard cylinders. This design helps save valuable internal space within equipment.

It is built with a double-acting drive mechanism that provides a stable push and pull output force. The piston moves smoothly with low friction, ensuring reliable and efficient operation.

There are two main model variants available: the P-A which is the basic version, and the A-P-A that comes with an integrated sensor groove designed for proximity switches.

The cylinder barrel is made from high-strength anodized aluminum, offering excellent corrosion resistance and wear protection. This enhances the durability and extends the overall service life of the cylinder.

With a standard bore size of 25mm, the cylinder offers a full range of stroke options including 5, 10, 15, 20, and 25mm. All models share unified installation dimensions, making replacements straightforward.

The cylinder uses genuine Festo spare parts and universal sealing components, which facilitates easy maintenance and ensures compatibility.

It supports a wide working pressure range and remains stable even during frequent high-speed reciprocating cycles, making it suitable for demanding applications.

Finally, the standardized mounting hole layout allows for multi-directional installation, providing great flexibility when configuring automated equipment setups.

Technical Parameters:

Applications:

Automated assembly lines often rely on precise linear actions such as clamping, positioning, pushing, and ejecting small workpieces. These movements ensure accuracy and efficiency in handling components throughout the production process.

In packaging machinery, short-stroke drives play a vital role in operations like bag cutting, box pressing, label pressing, and material feeding. These rapid and repetitive motions contribute to smooth and consistent packaging workflows.

Electronic equipment manufacturing utilizes mechanisms such as PCB fixture clamping, component pick and place, and small jig positioning. These functions are essential for the delicate handling and assembly of electronic parts.

Printing and labeling machines require precise adjustments including film tension control, print head pressing, and conveyor stop limiting. These actions help maintain print quality and proper material alignment during the production cycle.

Food processing machinery benefits from components that facilitate small material sorting, bottle positioning, and cover pressing. These mechanisms help maintain hygiene standards while ensuring efficient handling of food products.

Automation test equipment incorporates fixture clamping, limit positioning, and small displacement testing drives. These features enable accurate and repeatable testing procedures for quality assurance purposes.

Textile machinery involves fabric clamping, yarn tension adjustments, and small cutting actuators. These capabilities allow for consistent fabric handling and precise cutting necessary in textile manufacturing.

Medical automation equipment relies on small jig positioning and short-stroke motions for assembling disposable products. These precise movements ensure proper assembly and maintain hygiene standards required in medical environments.
