Product Description:
Product Description

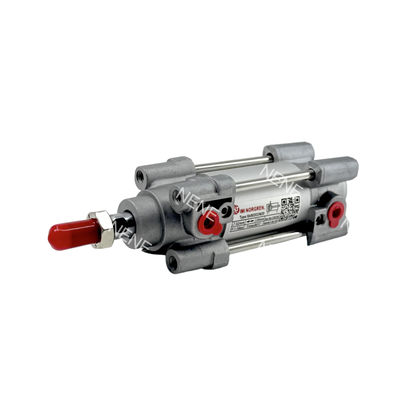

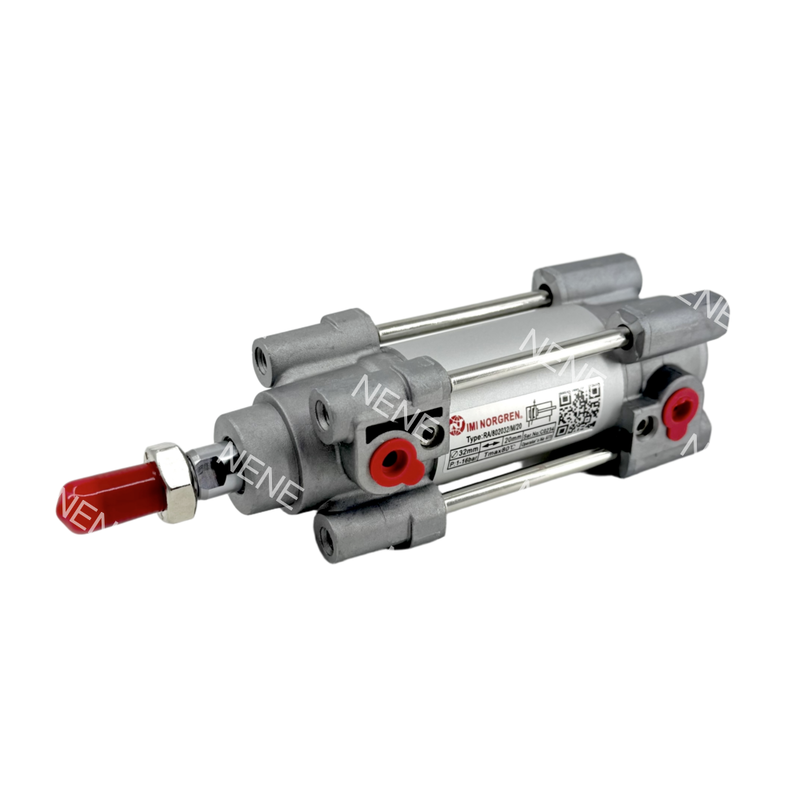

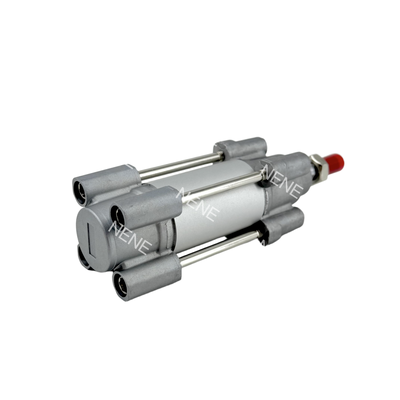

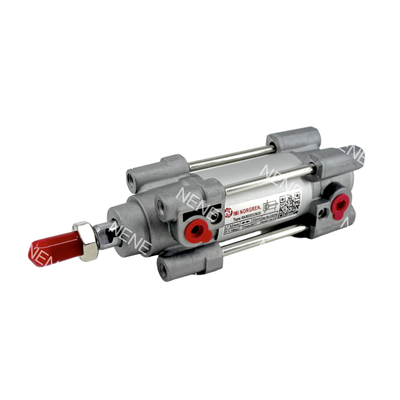

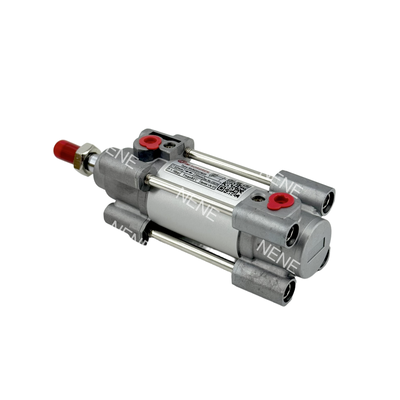

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the esteemed ISOLine lineup, this double-acting cylinder boasts a 32mm bore diameter and comes in an extensive range of stroke lengths spanning from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it an ideal choice for diverse industrial automation tasks.
Central to this cylinder’s design is the cutting-edge Adaptive Cushioning System (ACS). This smart system automatically adjusts cushioning parameters based on varying load conditions, removing the requirement for manual adjustments of the cushion screws or expert intervention. The benefits include smoother and safer operation, lower maintenance expenses, and a prolonged service lifespan.
Constructed with a sturdy round barrel and external tie rods, the RA/802032/M series is built to withstand demanding environments with enhanced durability. Additionally, it features a magnetic piston as standard, which allows for straightforward position detection when paired with compatible reed or solid-state sensors. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards ensures this cylinder is interchangeable and meets international quality requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning according to varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation at all times.
ISO 15552 Compliance
This product complies with international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such adherence guarantees global interchangeability and seamless integration in various systems.
Robust Construction
Featuring a round barrel design equipped with external tie rods, the construction offers superior durability and reliability. It is well-suited to withstand demanding and aggressive environments.
Magnetic Piston
The standard magnetic piston facilitates easy position sensing using reed or solid-state switches, enhancing precision and control during operation.
Wide Operating Pressure Range
Designed to operate efficiently within a pressure range of 1 to 16 bar, this system caters to a broad variety of applications across different industries.
Versatile Stroke Selection
A diverse array of both standard and custom stroke lengths are available, providing flexibility to meet specific application requirements.
Low Maintenance
Utilization of polyurethane seals ensures low-friction operation and extends the service life, resulting in minimal maintenance needs and greater reliability.
Shock and Vibration Tested
The product has undergone rigorous shock and vibration testing in accordance with EN 61373 Category 1, Class A + B standards, making it especially suitable for railway applications.
Multiple Variants Available
There are multiple variants offered, including options for different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing for customization to specific operational demands.
Technical Parameters:
| Brand |
IMI Norgren |
| Series |
RA/802000 - ISOLine |
| Cylinder Bore |
32 Mm |
| Operation |
Double Acting |
| Standard |
ISO 15552 |
| Type |
Standard Cylinder (Round Barrel) |
Applications:
Industrial Automation
This includes broad applications in factory automation such as assembly lines and equipment used for material handling. These systems enhance efficiency and streamline manufacturing processes.
Packaging Machinery
Equipment in this category is designed for tasks like product sorting, pushing, and precise positioning. Such machinery plays a crucial role in ensuring smooth and accurate packaging operations.
Automotive Industry
In this sector, the focus is on assembling components, utilizing testing fixtures, and automating production lines. These technologies contribute to increased productivity and quality control in vehicle manufacturing.
Railway Applications
Products used in railway environments are rigorously tested for shock and vibration in compliance with EN 61373 standards, specifically Category 1, Class A and B. This ensures reliability under demanding conditions.
Food & Beverage
The equipment is compatible with compressed air that may be filtered, lubricated, or non-lubricated, making it suitable for various applications within the food and beverage industry where hygiene and safety are paramount.
Electronics Manufacturing
Precision is key in electronics production. Machinery here provides accurate positioning and careful handling of components, supporting the manufacture of high-quality electronic devices.
Mechanical Engineering
This field involves general linear actuation applications used in machine building and customized special-purpose machinery, enabling diverse operational capabilities.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. To ensure optimal operation, please follow the installation and maintenance guidelines provided in the user manual.
For technical support, our team of experts is available to assist with troubleshooting, product selection, and application advice. We recommend regular inspection and lubrication of the cylinder to maintain its longevity and performance.
Replacement parts and accessories are available to support your maintenance needs. Please refer to the product documentation for part numbers and specifications.
We also offer customized solutions and services to meet specific operational requirements. Contact our support team to discuss your application and get personalized assistance.
