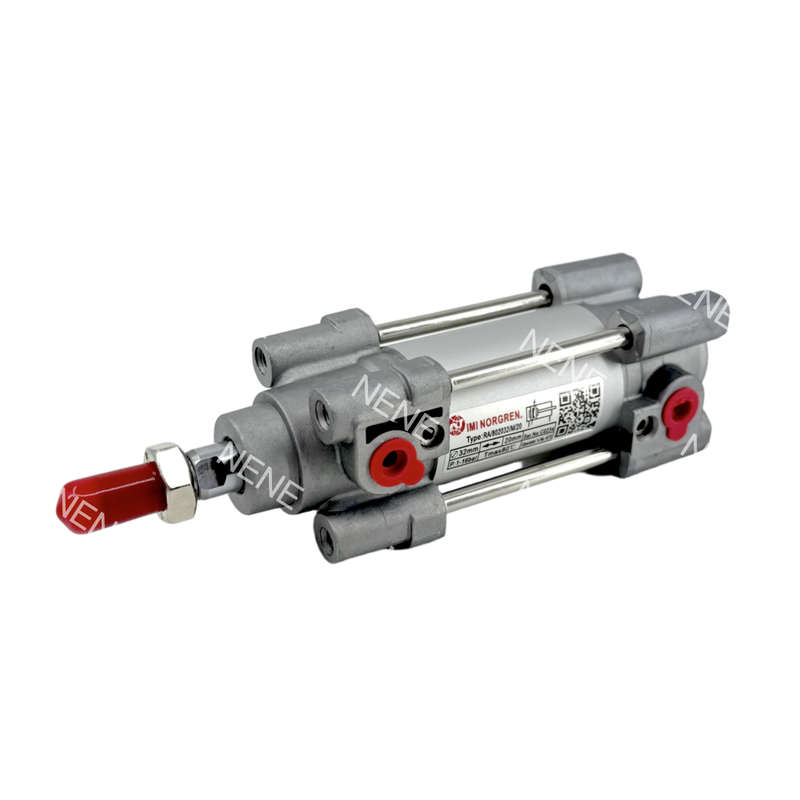

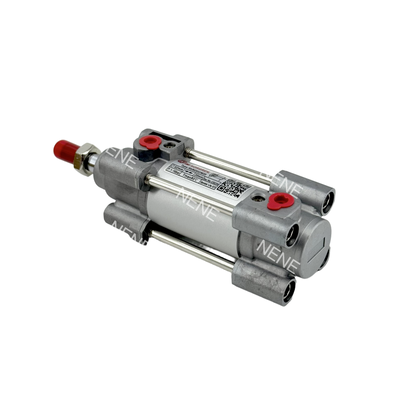

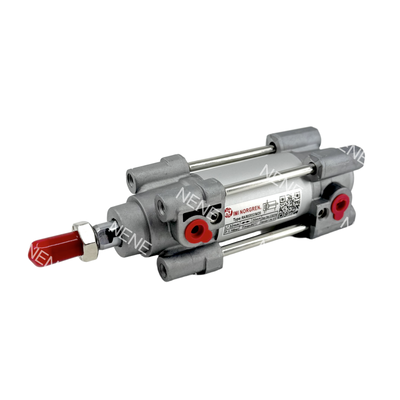

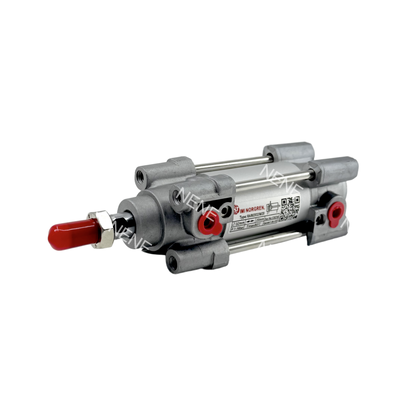

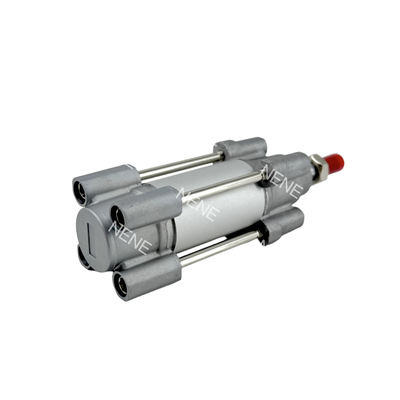

Versatile Double Acting Cylinder RA/802032/M/175 Norgren ISO 15552 for General Assembly

Product Description:

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that complies with the ISO 15552 standard. As part of the esteemed ISOLine collection, this double-acting cylinder features a bore diameter of 32mm and offers a wide range of stroke lengths varying from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it suitable for diverse industrial automation tasks.

Central to this cylinder’s design is the innovative Adaptive Cushioning System (ACS). This smart mechanism automatically adjusts the cushioning effect in response to varying loads, eliminating the requirement for manual adjustments of cushion screws or specialized operator expertise. This leads to smoother and safer operational performance, lowers maintenance expenses, and extends the overall lifespan of the equipment.

Constructed with a sturdy round barrel and reinforced by external tie rods, the RA/802032/M Series ensures exceptional durability, enabling it to withstand demanding industrial conditions. Additionally, the cylinder is equipped with a magnetic piston as a standard feature, facilitating easy and accurate position sensing when used in conjunction with compatible reed or solid-state switches. Compliant with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and adheres to international quality protocols.

Features:

The Adaptive Cushioning System (ACS) automatically adjusts the cushioning according to different load conditions. This eliminates the need for manual adjustments and guarantees smooth and safe operation under varying circumstances.

This product complies with the ISO 15552 standard, as well as VDMA 24562 and NFE 49-003-1 standards, ensuring global interchangeability and compatibility across various international markets.

Featuring a round barrel design equipped with external tie rods, this construction offers exceptional durability, making it ideal for use in aggressive and demanding industrial environments.

Equipped with a standard magnetic piston, the system facilitates easy position sensing when used with reed or solid-state switches, enabling efficient monitoring and control.

The device operates effectively within a pressure range of 1 to 16 bar, which makes it adaptable for a wide variety of applications, catering to diverse operational needs.

Available in an extensive selection of both standard and custom stroke lengths, this product offers flexibility suited to different application requirements.

Utilization of polyurethane seals ensures a low-friction operation and contributes to a prolonged service life, thereby reducing maintenance efforts and costs.

The product has undergone rigorous shock and vibration testing according to EN 61373 Category 1, Class A + B standards, confirming its reliability for rail applications.

A range of variants is offered to meet specific requirements, including options for different piston rod materials, specialized wipers, low friction seals, and extended piston rods.

Technical Parameters:

Applications:

This sector involves the automation of general factory processes, including assembly lines and material handling systems. The focus is on improving efficiency and productivity through advanced automated solutions.

Equipment in this category is designed for operations such as product sorting, pushing, and precise positioning. These machines ensure smooth and accurate packaging workflows.

The automotive sector utilizes automation for component assembly, the implementation of testing fixtures, and streamlining production lines. These practices enhance reliability and speed in manufacturing vehicles.

Devices used in railway systems are rigorously tested for shock and vibration, adhering to the EN 61373 standard, specifically Category 1, Class A + B. This ensures durability and safety in demanding environments.

Automation equipment suitable for this industry is compatible with compressed air that may be filtered, lubricated, or non-lubricated. This versatility supports hygienic and efficient processing operations.

Precision in positioning and careful component handling are crucial in electronics production. Automated systems in this field are designed to meet these stringent requirements.

This field involves the application of general linear actuation for machine building and the development of specialized machinery. Automation enhances the performance and functionality of various mechanical engineering applications.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. To ensure optimal operation, it is important to follow the recommended installation, usage, and maintenance guidelines provided in the product manual.

For technical support, please refer to the detailed troubleshooting section in the documentation. Common issues such as air leaks, reduced cylinder speed, or improper piston movement can often be resolved by checking fittings, seals, and air supply pressure.

Regular maintenance is essential for prolonging the life of the pneumatic cylinder. This includes periodic inspection of seals and rods, lubrication as specified in the manual, and ensuring the air supply is clean and dry to prevent contamination.

We also offer comprehensive after-sales services including repair, replacement of parts, and expert consultation to help you maximize the performance of your piston pneumatic cylinder. Our technical team is committed to supporting you throughout the product lifecycle.

Packing and Shipping:

Product Packaging and Shipping

The Piston Pneumatic Cylinder is carefully packaged to ensure safe delivery and maintain product integrity. Each cylinder is securely wrapped with protective materials to prevent damage during transit. The packaging includes a sturdy cardboard box with internal cushioning to absorb shocks and vibrations.

For shipping, we offer multiple options including standard ground, expedited air freight, and international delivery. All shipments are tracked and insured to guarantee timely and secure arrival. Customers will receive a tracking number once the order has been dispatched.

Please ensure that the receiving personnel inspect the package upon delivery for any visible damage. In case of any issues, contact our customer service immediately for prompt assistance.

We are committed to providing reliable packaging and shipping solutions to ensure your Piston Pneumatic Cylinder arrives in perfect condition and ready for use.
