Product Description:
Product Description

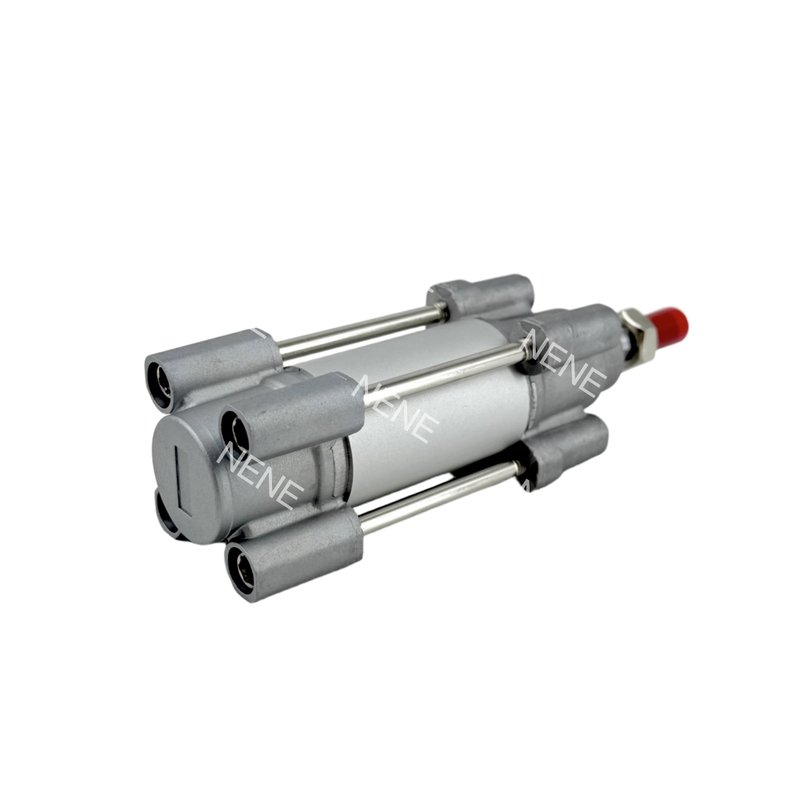

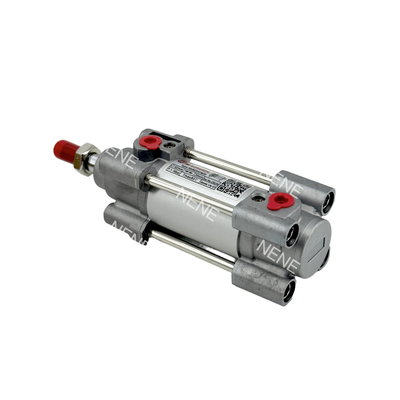

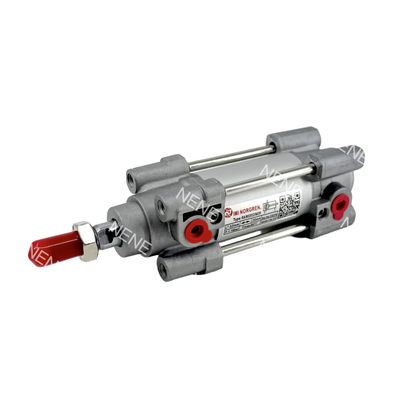

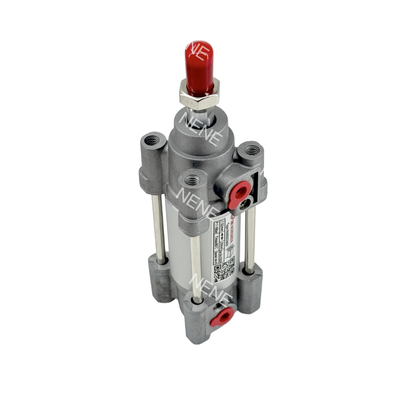

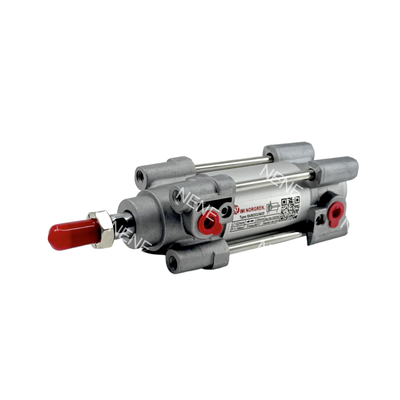

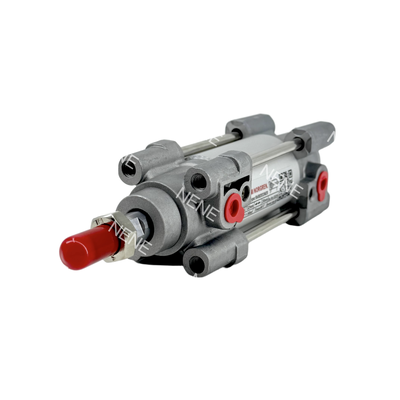

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the well-established ISOLine collection, this double-acting cylinder features a bore diameter of 32mm and offers a wide range of stroke lengths, from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it an ideal choice for various industrial automation applications.
Central to the design of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adapts the cushioning effect according to changing load conditions. As a result, it removes the necessity for manual cushion screw adjustments or specialized expertise. The benefits of this system include smoother operations, enhanced safety, lower maintenance requirements, and a longer overall service life.
Constructed with a sturdy round barrel and reinforced with external tie rods, the RA/802032/M Series delivers exceptional durability and is well-suited for demanding and harsh environments. Additionally, the cylinder is equipped with a magnetic piston, facilitating simple and accurate position detection when paired with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and worldwide acceptance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation under different working conditions.
ISO 15552 Compliance
This product complies with international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such compliance guarantees global interchangeability and adherence to quality and safety requirements.
Robust Construction
Featuring a round barrel design with external tie rods, the construction provides enhanced durability. This makes the product particularly suited for aggressive and demanding environments.
Magnetic Piston
The standard magnetic piston facilitates easy position sensing using reed or solid-state switches, contributing to reliable and accurate operation monitoring.
Wide Operating Pressure Range
Operating efficiently within a pressure range from 1 to 16 bar, this product is versatile enough to cater to a variety of applications.
Versatile Stroke Selection
It is available in a broad selection of standard and custom stroke lengths, allowing adaptation to specific application requirements.
Low Maintenance
Equipped with polyurethane seals, the system ensures low-friction operation and boasts a long service life, minimizing maintenance efforts.
Shock and Vibration Tested
The product has been thoroughly tested according to EN 61373 Category 1, Class A + B standards, making it suitable for demanding rail applications that involve shock and vibration.
Multiple Variants Available
A variety of options are available, including different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to meet diverse needs.
Technical Parameters:
| Type | Standard Cylinder (Round Barrel) |
| Series | RA/802000 - ISOLine |
| Standard | ISO 15552 |
| Brand | IMI Norgren |
| Cylinder Bore | 32 Mm |
| Operation | Double Acting |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the automation of assembly lines and material handling equipment. These systems are designed to optimize production efficiency and streamline manufacturing processes.
Packaging Machinery
In packaging machinery, operations such as product sorting, pushing, and precise positioning are critical. These tasks ensure that products are handled correctly and prepared efficiently for packaging.
Automotive Industry
The automotive industry utilizes these technologies for component assembly, the implementation of testing fixtures, and overall production line automation, enhancing accuracy and throughput in vehicle manufacturing.
Railway Applications
Equipment designed for railway applications undergoes rigorous shock and vibration testing according to EN 61373 standards, specifically Category 1, Class A + B, to ensure durability and reliable performance in demanding environments.
Food & Beverage
Products used in the food and beverage sector are suitable for operation with compressed air that can be filtered, lubricated, or non-lubricated, maintaining hygiene and effectiveness in various processes.
Electronics Manufacturing
Precision positioning and careful component handling are essential in electronics manufacturing, where high accuracy is required to assemble intricate devices and circuit boards.
Mechanical Engineering
This field involves general linear actuation applied in machine building and the development of special-purpose machinery, enabling versatile mechanical movements required for diverse engineering tasks.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and reliability in various industrial applications. For technical support, please refer to the product manual for installation guidelines, operating instructions, and maintenance tips to ensure optimal functionality and longevity.
If you encounter any issues or require assistance with troubleshooting, our support team is available to help diagnose and resolve problems related to the cylinder’s performance, air pressure requirements, and compatibility with your pneumatic system.
We also offer a range of services including customization options, repair and refurbishment, and replacement parts to keep your pneumatic cylinders operating efficiently. Regular maintenance services are recommended to prevent downtime and extend the service life of the product.
For detailed technical specifications, CAD drawings, and application notes, please visit our product resources section. We are committed to providing comprehensive support to maximize the benefits of your Piston Pneumatic Cylinder investment.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam or bubble wrap to prevent any damage or scratches. It is then placed inside a sturdy cardboard box with additional cushioning materials such as foam inserts or packing peanuts to absorb shocks and vibrations.
The packaging is designed to keep the cylinder secure and stable, minimizing movement within the box. For larger orders, multiple units are packed in reinforced cartons and secured with strapping to prevent shifting. All packages are clearly labeled with product information, handling instructions, and shipping details.
Shipping is carried out through reliable carriers with options for express, standard, or freight delivery depending on the order size and destination. We ensure timely dispatch and provide tracking information to keep customers informed throughout the shipping process. Special care is taken for international shipments to comply with customs regulations and to ensure safe arrival.
Overall, our packaging and shipping process guarantees that the piston pneumatic cylinder reaches you in perfect working condition, ready for immediate installation and use.
