Product Description:
Product Description

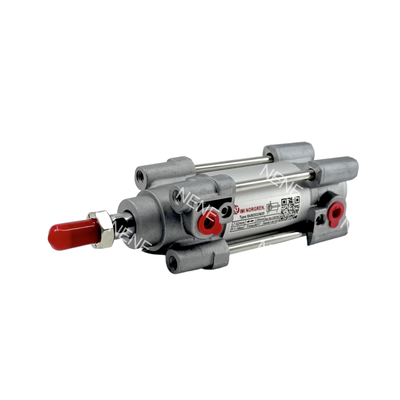

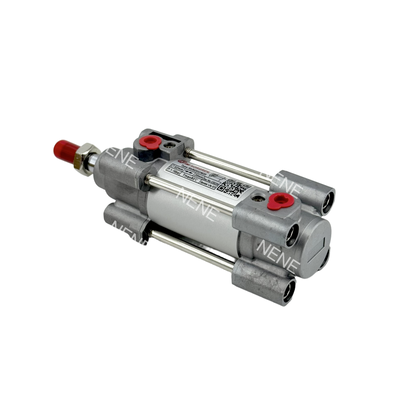

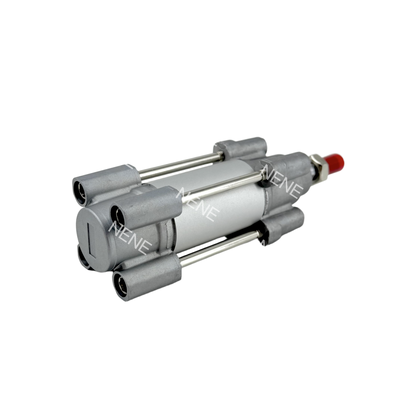

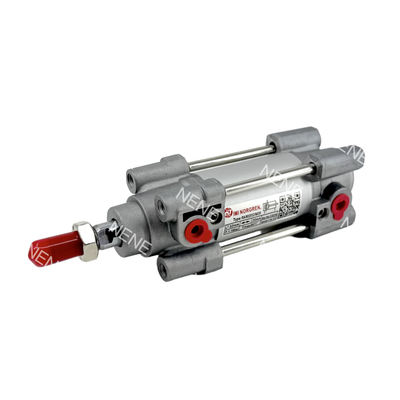

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. It is part of the well-regarded ISOLine range and features a bore diameter of 32mm. This versatile cylinder is available in a wide range of stroke lengths, spanning from 20mm up to 1000mm, making it suitable for various industrial automation tasks that require reliable and efficient linear motion.
Central to this model is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning to match fluctuating load conditions, thereby eliminating the need for manual adjustments of cushion screws or specialized expertise. Thanks to this feature, the operation becomes smoother and safer, maintenance efforts and costs are reduced, and the overall service life of the cylinder is extended.
Constructed with a sturdy round barrel design complemented by external tie rods, the RA/802032/M series offers enhanced durability and is well-suited for demanding or harsh environments. Additionally, it comes equipped with a magnetic piston as standard, which facilitates straightforward position sensing when used in conjunction with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and meets global regulatory requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and guarantees smooth and safe operation under different conditions.
ISO 15552 Compliance
This product complies with international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such compliance ensures global interchangeability and reliable performance across different markets.
Robust Construction
Featuring a round barrel design with external tie rods, the construction provides exceptional durability. This robust design is well-suited for aggressive and demanding environments.
Magnetic Piston
The standard magnetic piston allows for easy position sensing using reed or solid-state switches, enhancing the accuracy and efficiency of position detection.
Wide Operating Pressure Range
Operating within a pressure range from 1 to 16 bar, this product is suitable for a wide variety of applications, offering flexibility to meet diverse operational requirements.
Versatile Stroke Selection
A broad selection of both standard and non-standard stroke lengths is available, providing versatility to adapt to specific application needs.
Low Maintenance
Equipped with polyurethane seals, the system ensures low-friction operation and a prolonged service life, minimizing maintenance efforts and costs.
Shock and Vibration Tested
Tested according to EN 61373 Category 1, Class A + B standards, this product is qualified for rail applications, assuring resistance to shocks and vibrations in demanding environments.
Multiple Variants Available
Several variants are offered, compatible with options such as different piston rod materials, special wipers, low-friction seals, and extended piston rods to cater to specific requirements.
Technical Parameters:
| Brand |
IMI Norgren |
| Series |
RA/802000 - ISOLine |
| Type |
Standard Cylinder (Round Barrel) |
| Cylinder Bore |
32 mm |
| Operation |
Double Acting |
| Standard |
ISO 15552 |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the operation of assembly lines and material handling equipment. These automated systems enhance efficiency and streamline production processes in various manufacturing environments.
Packaging Machinery
Packaging machinery involves tasks such as product sorting, pushing, and precise positioning operations. These functions are critical for ensuring that products are accurately packaged and prepared for distribution.
Automotive Industry
In the automotive sector, automation plays a vital role in component assembly and testing fixtures. Production line automation helps increase speed and maintain consistent quality throughout the manufacturing process.
Railway Applications
Equipment used in railway applications is rigorously tested for shock and vibration according to the EN 61373 standard, specifically Category 1, Class A and B. This ensures durability and reliable performance under harsh operating conditions.
Food & Beverage
The food and beverage industry requires equipment that is compatible with filtered, lubricated, or non-lubricated compressed air. This compatibility supports hygienic and efficient processing in production lines.
Electronics Manufacturing
This field demands high precision in positioning and component handling. Automation solutions are designed to meet these stringent requirements to support delicate and accurate assembly processes.
Mechanical Engineering
Mechanical engineering applications benefit from general linear actuation used in machine building and special-purpose machinery. These actuators provide reliable motion control for a wide range of mechanical systems.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation and longevity of the cylinder, we offer comprehensive technical support and services.
Technical support includes assistance with installation, operation, troubleshooting, and maintenance of the pneumatic cylinder. Our team of experts is available to guide you through system integration, help select the right cylinder specifications for your application, and provide solutions to any technical challenges you may encounter.
We also provide detailed product documentation, including user manuals, installation guides, and maintenance instructions to help you maximize the performance and durability of your piston pneumatic cylinder.
In addition, our maintenance services include routine inspections, repair services, and replacement of worn or damaged components to ensure your pneumatic cylinders continue to operate smoothly and efficiently.
For customers requiring customization, we offer tailored solutions to meet specific requirements, including modifications in size, stroke length, and mounting options.
Our commitment is to deliver high-quality support and services to enhance your experience with our piston pneumatic cylinder products and ensure your operations run without interruption.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure it arrives in perfect condition. The product is first wrapped in protective foam to prevent any damage during transit. It is then placed inside a sturdy cardboard box with internal padding to minimize movement.
For bulk orders, cylinders are packed in multiple layers within reinforced cartons, separated by cushioning materials to avoid contact and impact. All packages are clearly labeled with product information, handling instructions, and shipping details.
We offer various shipping options including standard ground, expedited air freight, and courier services to meet customer needs. Shipments are tracked and monitored until delivery to guarantee timely and safe arrival.
Before dispatch, each piston pneumatic cylinder undergoes quality inspection and testing to ensure functionality and reliability. Our packaging and shipping process is designed to maintain product integrity and provide a seamless customer experience.
