Product Description:
Product Description

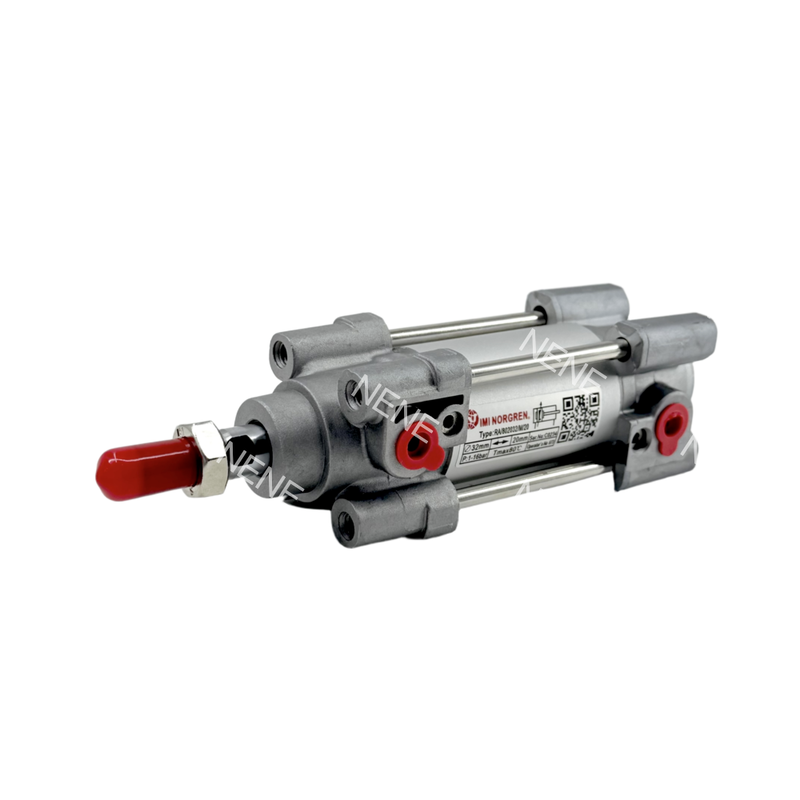

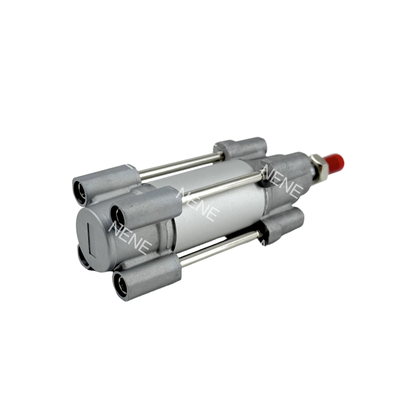

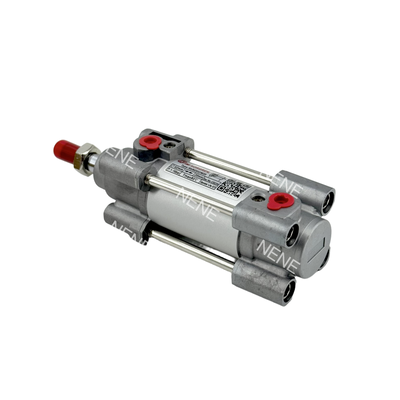

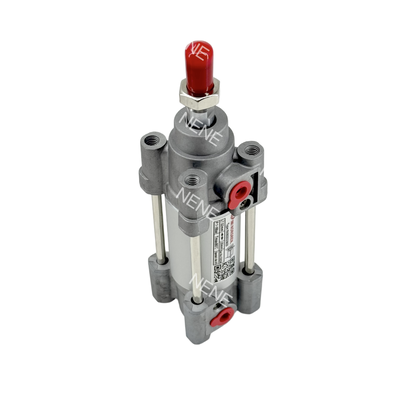

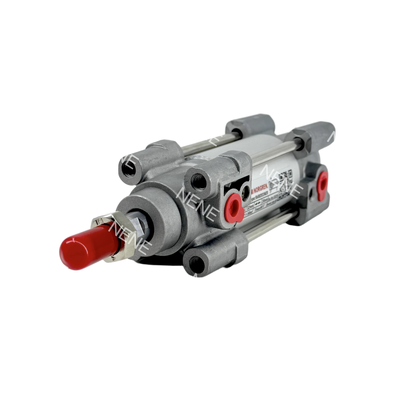

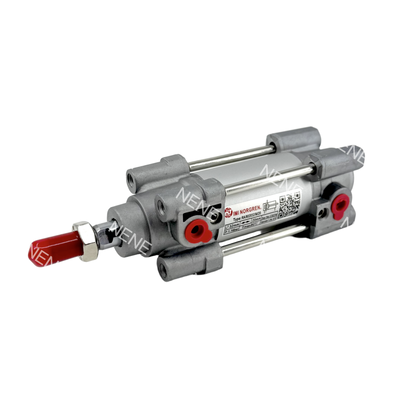

The IMI Norgren RA/802032/M Series is a top-tier double-acting pneumatic cylinder that adheres to the ISO 15552 standard. Part of the esteemed ISOLine collection, this cylinder boasts a 32mm bore diameter and is available in an extensive range of stroke lengths, spanning from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it ideal for numerous industrial automation processes.
Central to its design is the cutting-edge Adaptive Cushioning System (ACS). This smart mechanism automatically fine-tunes the cushioning performance to suit varying load conditions, thereby eliminating the necessity for manual adjustments of cushion screws or specialized expertise. This innovation ensures smoother and safer operation while reducing maintenance requirements and significantly extending the cylinder’s operational lifespan.
Constructed with a strong round barrel and external tie rods, the RA/802032/M Series delivers exceptional durability, making it suitable for harsher operational environments. It is equipped with a standard magnetic piston, facilitating easy position detection through compatible reed or solid-state switches. Conforming to international standards such as ISO 15552, VDMA 24562, and NFE 49-003-1, this cylinder guarantees interchangeability and worldwide compliance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning to accommodate varying loads. This innovation eliminates the need for manual adjustments and guarantees a smooth and safe operation under different conditions.
Compliance with International Standards
This product meets the requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance ensures global interchangeability and compatibility across different markets and applications.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers enhanced durability. This robust design is especially suited to withstand aggressive and demanding environments.
Magnetic Piston for Easy Position Sensing
The standard magnetic piston facilitates easy position sensing. It supports the use of reed or solid-state switches, improving monitoring and control capabilities.
Wide Operating Pressure Range
Designed to operate within a pressure range of 1 to 16 bar, this product is versatile enough for a wide variety of applications, accommodating different operational requirements.
Versatile Stroke Lengths
The system is available in an extensive range of both standard and non-standard stroke lengths, ensuring it can meet diverse customer needs and specific application demands.
Low Maintenance and Long Service Life
Equipped with polyurethane seals, the unit offers low-friction operation and requires minimal maintenance. These features collectively contribute to a long and reliable service life.
Rigorous Shock and Vibration Testing
It has been tested according to EN 61373 Category 1, Class A + B standards, making it ideal for use in rail applications where shock and vibration resistance are critical.
Multiple Variants Available
The product supports multiple variants, including options for different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to specific needs.
Technical Parameters:
| Standard |
ISO 15552 |
| Series |
RA/802000 - ISOLine |
| Cylinder Bore |
32 Mm |
| Operation |
Double Acting |
| Type |
Standard Cylinder (Round Barrel) |
| Brand |
IMI Norgren |
Applications:
Industrial Automation
This category includes general automation tasks within factories, such as assembly lines and material handling equipment. These systems help streamline manufacturing processes and improve efficiency.
Packaging Machinery
Packaging machinery involves various operations like product sorting, pushing, and precise positioning. These functions ensure that products are packaged accurately and efficiently.
Automotive Industry
In the automotive sector, automation plays a vital role in component assembly, the use of testing fixtures, and overall production line automation, enhancing both quality and productivity.
Railway Applications
Equipment designed for railway applications is rigorously tested for shock and vibration according to the EN 61373 standard, specifically Category 1, Class A + B, ensuring reliability under harsh conditions.
Food & Beverage
Automation solutions in the food and beverage industry are compatible with filtered, lubricated, or non-lubricated compressed air, making them suitable for maintaining hygiene and operational standards.
Electronics Manufacturing
Precision positioning and component handling are critical in electronics manufacturing to guarantee the accuracy and functionality of delicate electronic parts.
Mechanical Engineering
General linear actuation is commonly used in mechanical engineering for machine building and in creating special-purpose machinery, facilitating a wide range of automated movements.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal operation, regular maintenance and proper installation are essential.
If you encounter any issues with the piston pneumatic cylinder, please consult the product manual for troubleshooting tips and guidelines. Common issues such as air leakage, reduced speed, or unusual noises can often be resolved by checking connections, seals, and lubrication.
For installation, ensure that the cylinder is mounted securely and aligned properly to avoid undue stress on the piston rod and seals. Use compatible fittings and maintain clean air supply to prevent contamination and premature wear.
We offer comprehensive technical support to assist with product selection, installation guidance, and troubleshooting. Our team of experts is available to provide detailed information on specifications, performance parameters, and customization options tailored to your application needs.
Additionally, we provide maintenance services and replacement parts to extend the life of your piston pneumatic cylinder. Routine inspection of seals, rods, and mounting components helps maintain efficiency and prevent unexpected downtime.
For detailed service manuals, installation instructions, and maintenance schedules, please refer to the documentation provided with your purchase or visit our official website.
Our goal is to ensure that your piston pneumatic cylinder operates smoothly and contributes to the productivity and safety of your operations.
