Product Description:
Product Description

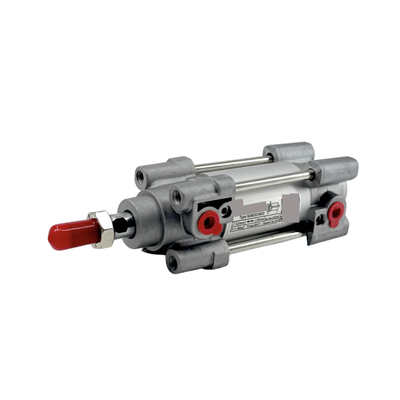

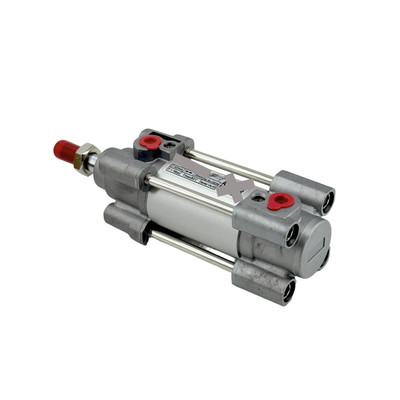

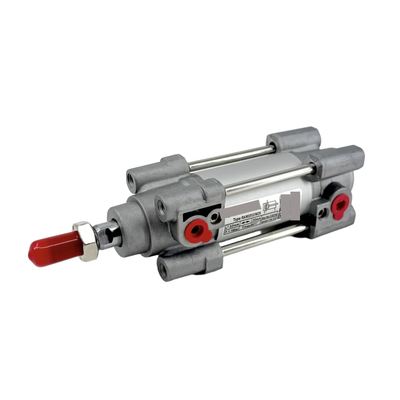

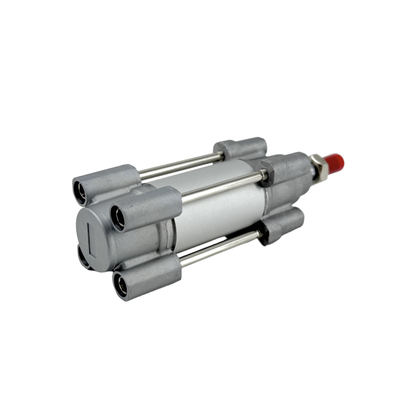

The IMI Norgren RA/802032/M Series represents a high-quality, double-acting pneumatic cylinder that adheres to the ISO 15552 standard. This product is part of the well-respected ISOLine series and features a bore diameter of 32mm. It is available in a wide range of stroke lengths, spanning from 20mm to 1000mm, making it a versatile choice for various industrial automation tasks requiring reliable and efficient linear motion.
A standout feature of this cylinder is its Adaptive Cushioning System (ACS). This advanced technology intelligently modifies the cushioning performance to suit varying load conditions. By doing so, it removes the necessity of manually adjusting cushion screws and eliminates the need for specialized expertise. This innovation ensures smoother operation, enhances safety, lowers maintenance expenses, and prolongs the cylinder’s operational lifespan.
Constructed with a sturdy round barrel design and reinforced with external tie rods, the RA/802032/M Series is engineered to withstand demanding environments. Additionally, the cylinder is equipped with a magnetic piston as a standard feature, which facilitates straightforward position sensing when used in conjunction with compatible reed or solid-state switches. Compliance with international standards such as ISO 15552, VDMA 24562, and NFE 49-003-1 guarantees interchangeability and adherence to global quality requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments and guarantees smooth as well as safe operation under different conditions.
ISO 15552 Compliance
This product complies fully with the ISO 15552 standard, along with VDMA 24562 and NFE 49-003-1 standards. Such compliance ensures global interchangeability, providing users with confidence in compatibility across various markets.
Robust Construction
Featuring a round barrel design equipped with external tie rods, the construction of this product offers exceptional durability. This robust build makes it suitable for use in aggressive environments where reliability is critical.
Magnetic Piston
The standard magnetic piston incorporated in the design allows for easy position sensing. It is compatible with both reed and solid-state switches, enabling precise monitoring of piston location.
Wide Operating Pressure Range
Capable of operating within a pressure range from 1 to 16 bar, this product accommodates a broad spectrum of applications. Its flexibility makes it an ideal choice for diverse operational requirements.
Versatile Stroke Selection
Users can select from a wide variety of stroke lengths, including both standard and non-standard options. This versatility ensures the product can be tailored to meet specific application needs.
Low Maintenance
Equipped with polyurethane seals, the product promises efficient, low-friction operation and an extended service life. These seals reduce maintenance demands, saving time and costs over the long term.
Shock and Vibration Tested
The product has undergone rigorous testing in accordance with EN 61373, meeting Category 1, Class A + B requirements. This certification confirms its suitability for rail applications where shock and vibration resistance are essential.
Multiple Variants Available
A range of variants is offered, including options with different piston rod materials, specialized wipers, low friction seals, and extended piston rods. This variety allows customization to fit a wide array of operational contexts.
Technical Parameters:
| Standard |
ISO 15552 |
| Brand |
IMI Norgren |
| Cylinder Bore |
32 Mm |
| Series |
RA/802000 - ISOLine |
| Type |
Standard Cylinder (Round Barrel) |
| Operation |
Double Acting |
Applications:
Industrial Automation
This includes general factory automation processes, such as assembly lines and equipment used for material handling. These systems improve efficiency and accuracy in manufacturing environments.
Packaging Machinery
Packaging operations often involve product sorting, pushing, and precise positioning. Advanced machinery is designed to handle these tasks effectively, ensuring smooth packaging workflows.
Automotive Industry
The automotive sector benefits from component assembly lines, testing fixtures, and comprehensive production line automation to maintain high quality and streamline manufacturing processes.
Railway Applications
Equipment used in railway systems undergoes rigorous shock and vibration testing, conforming to the EN 61373 standard, specifically Category 1, Class A + B, to ensure durability and reliability.
Food & Beverage
This industry utilizes machinery compatible with compressed air that can be filtered, lubricated, or non-lubricated, meeting hygiene and safety standards required for food processing.
Electronics Manufacturing
Precision is crucial in electronics production, where machinery handles exact positioning and the careful manipulation of components during assembly.
Mechanical Engineering
Within mechanical engineering, general linear actuation is widely applied in machine building as well as in the creation of special-purpose machinery tailored to specific tasks.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation. Our services include detailed product documentation, expert consultation, and tailored solutions to meet your specific requirements. We are committed to helping you maximize the lifespan and efficiency of your pneumatic cylinder through continuous support and service excellence.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Our piston pneumatic cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is individually wrapped with anti-static foam and placed in a sturdy, custom-sized cardboard box to prevent movement and damage.
All packaging materials are designed to withstand shocks, vibrations, and moisture, ensuring the product arrives in perfect working condition.
For shipping, we offer multiple options including standard ground, expedited air, and international freight services. Each shipment is tracked and insured for your peace of mind.
Bulk orders are palletized and shrink-wrapped for added stability and ease of handling. We also provide clear labeling with product details, handling instructions, and destination information to facilitate smooth delivery.
Your piston pneumatic cylinder will be delivered safely and promptly, ready for immediate installation and use.
