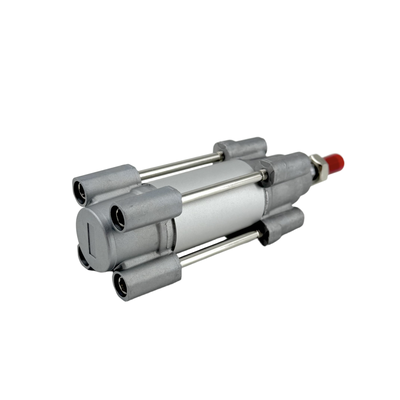

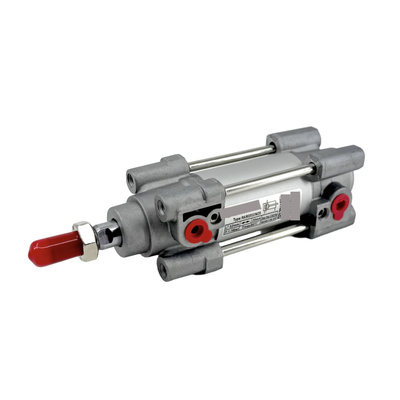

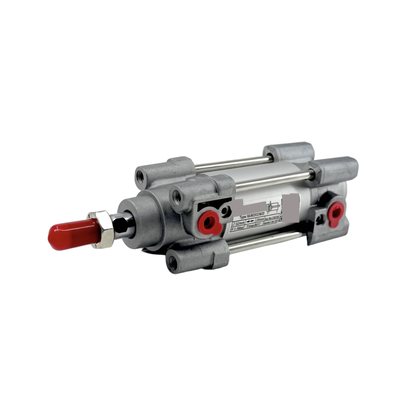

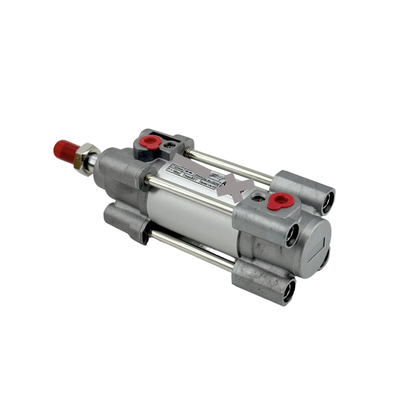

IMI Norgren RA/802032/M/25 Compact Air Cylinder Double Acting 1 to 16 bar for Tight Spaces

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the respected ISOLine collection, this double-acting cylinder features a bore diameter of 32mm and is available in a wide range of stroke lengths, spanning from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion across various industrial automation uses.

Central to the design of this cylinder is the Advanced Adaptive Cushioning System (ACS). This smart mechanism automatically fine-tunes the cushioning to adapt to variable loads, removing the necessity for manual adjustments of cushion screws or specialized technical knowledge. The benefits include smoother and safer operational performance, lower maintenance requirements, and a longer operational lifespan.

Constructed with a sturdy round barrel and reinforced by external tie rods, the RA/802032/M Series is built to withstand demanding environments. It comes standard with a magnetic piston, facilitating effortless position detection when used with suitable reed or solid-state switches. Fully compliant with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and meets global industry requirements.

The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation under different working conditions.

This product meets the requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing global interchangeability and adherence to international quality benchmarks.

Featuring a round barrel design with external tie rods, the construction offers exceptional durability, making it ideally suited for use in harsh and demanding environments.

Equipped with a standard magnetic piston, the system facilitates easy position sensing utilizing reed or solid-state switches, enhancing operational efficiency.

The actuator functions effectively across a broad pressure range from 1 to 16 bar, making it adaptable for a variety of applications and industry requirements.

It is available in an extensive range of both standard and custom stroke lengths, allowing for flexibility to meet specific application demands.

The use of polyurethane seals ensures low-friction operation, which contributes to reduced maintenance needs and extends the overall service life of the equipment.

This product has undergone rigorous testing according to EN 61373 Category 1, Class A + B standards, particularly for rail applications, confirming its reliability under shock and vibration conditions.

A variety of options are available to customize the product, including different piston rod materials, special wipers, low friction seals, and extended piston rods, ensuring suitability for diverse operational requirements.

This sector encompasses general factory automation, including assembly lines and equipment for handling materials. These systems are designed to optimize production efficiency and ensure smooth operation of manufacturing processes.

Packaging machines perform a variety of tasks such as product sorting, pushing, and positioning. These operations are essential to maintain the accuracy and speed required in packaging lines.

The automotive sector utilizes these technologies extensively for component assembly, testing fixtures, and automating production lines. This integration enhances the precision and reliability of vehicle manufacturing.

Equipment used in railway environments undergoes rigorous shock and vibration testing in accordance with EN 61373 Category 1, Class A + B standards, ensuring durability and safety under demanding conditions.

Systems in the food and beverage industry are designed to operate effectively with compressed air that may be filtered, lubricated, or non-lubricated, meeting hygiene and performance requirements.

Precision positioning and careful handling of components are critical in electronics production, making these technologies vital for maintaining quality and consistency.

In mechanical engineering, general linear actuation is applied in building machinery and creating special-purpose equipment, contributing to versatile and efficient mechanical solutions.
