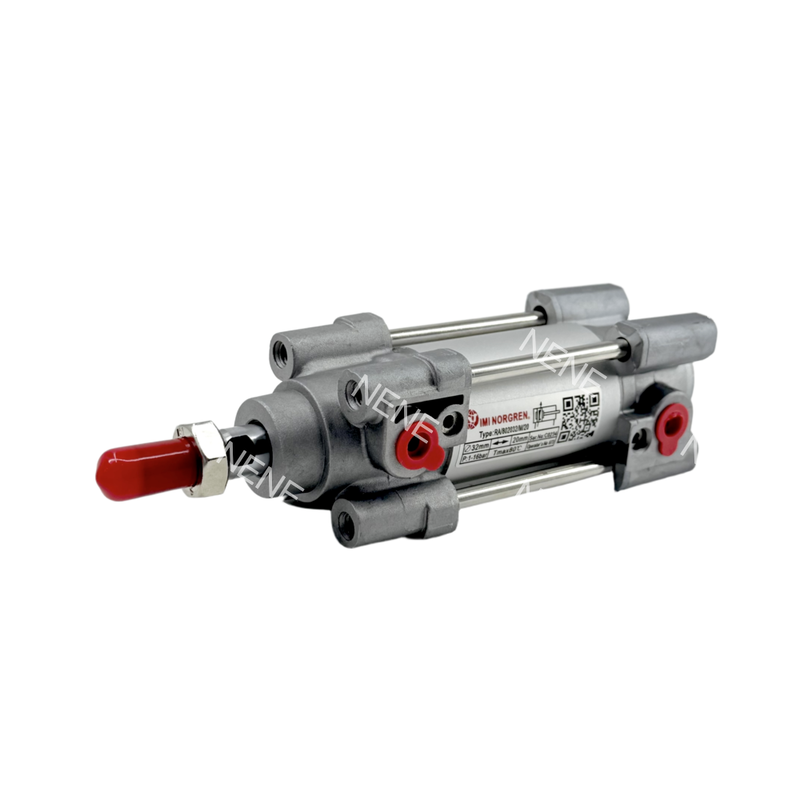

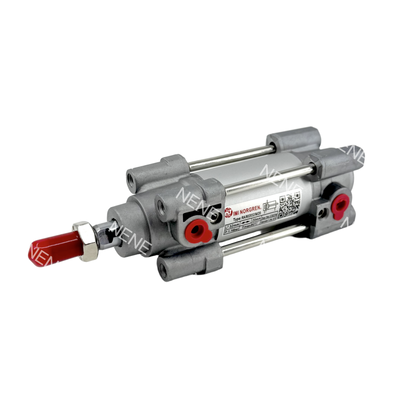

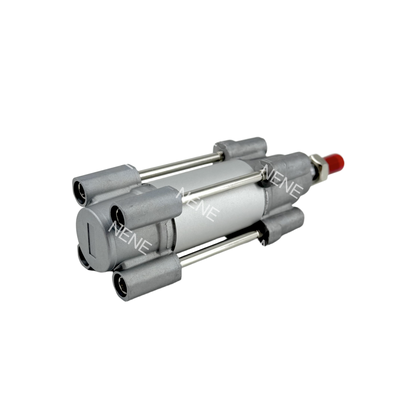

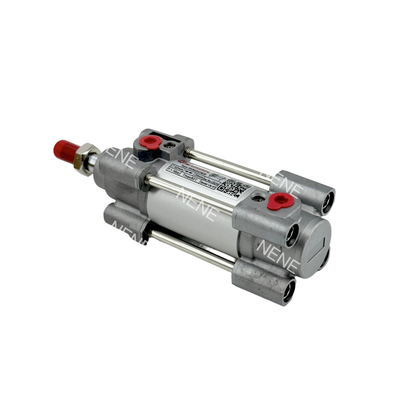

IMI Norgren RA/802032/M/1000 Pneumatic Cylinder ISO 15552 Double Acting with ACS Cushioning for Heavy Duty Automation

Product Description:

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder designed to meet ISO 15552 standards. As part of the well-known ISOLine range, this double-acting cylinder features a 32mm bore diameter and is available with a wide array of stroke lengths ranging from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, suitable for numerous industrial automation uses.

Central to this cylinder’s design is the state-of-the-art Adaptive Cushioning System (ACS). This smart mechanism automatically adapts the cushioning effect to suit varying load conditions, thereby removing the necessity for manual adjustment of cushion screws or specialized expertise. This innovation contributes to smoother and safer operation, minimizes maintenance requirements, and extends the overall service life of the cylinder.

Constructed with a sturdy round barrel and equipped with external tie rods, the RA/802032/M series ensures enhanced durability and is capable of performing in harsher environments. Additionally, it includes a magnetic piston by default, allowing for easy position detection when paired with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and adherence to global quality regulations.

Features:

The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments, thereby ensuring smooth and safe operation under different working conditions.

This product meets the stringent requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and reliability across international applications.

Designed with a round barrel and external tie rods, the product offers exceptional durability. This robust construction makes it highly suitable for aggressive and demanding environments.

Equipped with a standard magnetic piston, it facilitates easy position sensing through compatible reed or solid-state switches, enhancing operational precision.

The device operates efficiently within a broad pressure range from 1 to 16 bar, making it adaptable for a variety of applications.

It is available in an extensive range of stroke lengths, including both standard and non-standard options, catering to diverse customer needs.

Utilizing polyurethane seals, the product ensures low-friction performance and a long service life, which results in reduced maintenance requirements.

Tested according to EN 61373 Category 1, Class A + B standards, it is certified for reliable performance in rail applications subject to shock and vibration.

The product offers compatibility with various options such as different piston rod materials, special wipers, low friction seals, and extended piston rods, providing flexibility to meet specific application demands.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial automation applications. For technical support, please refer to the user manual included with your product for detailed installation, operation, and maintenance instructions.

If you encounter any issues during installation or operation, ensure that all connections are secure and that the cylinder is compatible with your system specifications. Regular maintenance, including lubrication and inspection for wear or damage, will help prolong the life of your pneumatic cylinder.

We offer comprehensive after-sales services, including troubleshooting assistance, replacement parts, and repair services to ensure your equipment operates smoothly. Our technical support team is equipped to provide guidance on product selection, system integration, and optimization to meet your specific needs.

For further information on product specifications, performance data, and application guidance, please consult the technical documentation provided or visit our website. We are committed to supporting your operations with high-quality products and responsive customer service.

Packing and Shipping:

Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any surface damage. It is then placed inside a custom-fitted foam insert within a sturdy corrugated cardboard box. All packaging materials are designed to absorb shocks and vibrations, ensuring the product arrives in perfect condition. Additionally, the box is sealed with tamper-evident tape and clearly labeled with product information and handling instructions.

Shipping: We offer reliable shipping options to deliver your Piston Pneumatic Cylinder safely and promptly. Products are shipped via trusted courier services with tracking available for every order. Standard shipping typically takes 5-7 business days, while expedited options are available for faster delivery. We ensure that all shipments comply with international shipping regulations and include necessary documentation for smooth customs clearance. Customers will receive a confirmation email with tracking details once the order has been dispatched.
