Product Description:

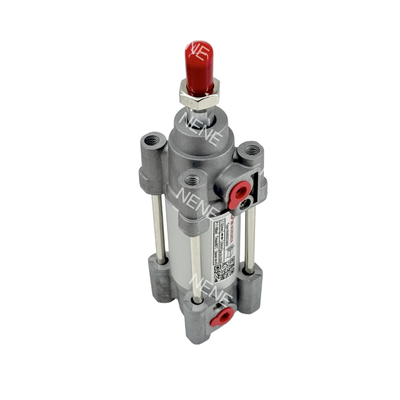

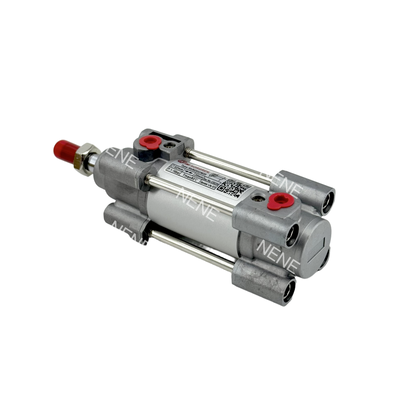

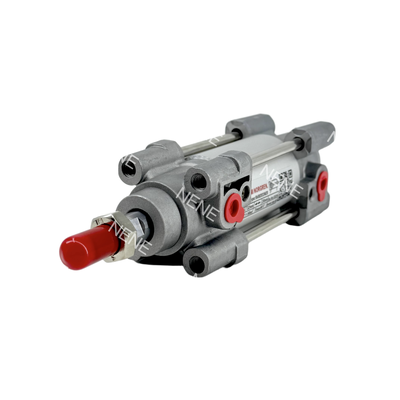

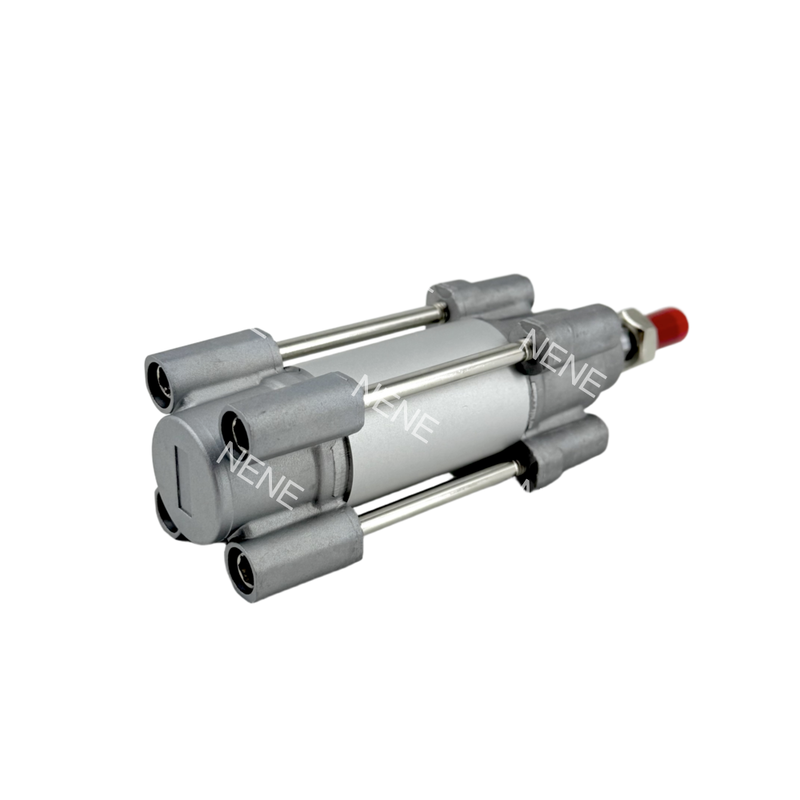

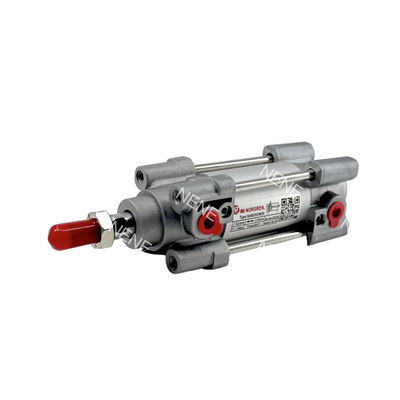

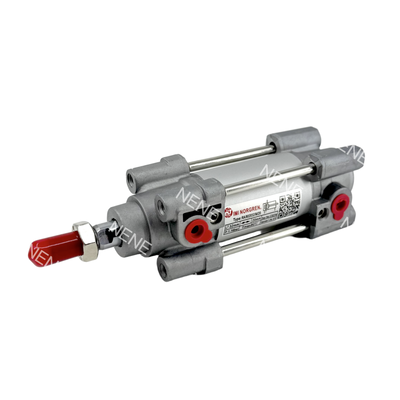

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the distinguished ISOLine range, this double-acting cylinder features a 32mm bore diameter. It is available in a wide variety of stroke lengths, ranging from 20mm to 1000mm, making it an ideal solution for delivering reliable and efficient linear motion across numerous industrial automation applications.
One of the standout features of this cylinder is its innovative Adaptive Cushioning System (ACS). This smart mechanism automatically adjusts cushioning performance based on changing load conditions. By doing so, it eliminates the need for manual cushion screw adjustments and specialized expertise. This leads to smoother and safer operation, lowers maintenance needs, and extends the overall service life of the cylinder.
Constructed with a rugged round barrel and equipped with external tie rods, the RA/802032/M series is built to provide exceptional durability even in harsh environments. Additionally, the cylinder includes a magnetic piston as a standard feature, which facilitates easy position sensing by using compatible reed or solid-state switches. Complying with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and meets global quality requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning according to changing loads. This eliminates the need for manual adjustments and ensures smooth and safe operation under varying conditions.
ISO 15552 Compliance
This product complies with international standards such as ISO 15552, VDMA 24562, and NFE 49-003-1. These certifications guarantee global interchangeability and compatibility.
Robust Construction
Featuring a round barrel design with external tie rods, the construction provides exceptional durability, making it well-suited for harsh and aggressive environments.
Magnetic Piston
The standard magnetic piston allows for simple and reliable position sensing using reed switches or solid-state sensors, enhancing operational precision.
Wide Operating Pressure Range
It operates efficiently within a pressure range of 1 to 16 bar, making it adaptable to a wide variety of applications and requirements.
Versatile Stroke Selection
A broad selection of both standard and custom stroke lengths is available, providing flexibility to meet specific application needs.
Low Maintenance
Equipped with polyurethane seals, the system ensures low friction and reliable performance, contributing to an extended service life with minimal maintenance.
Shock and Vibration Tested
The unit has undergone rigorous testing in accordance with EN 61373 Category 1, Class A + B standards, making it suitable for demanding rail applications.
Multiple Variants Available
Various configurations are offered, including options for different piston rod materials, specialized wipers, low friction seals, and extended piston rods, allowing customization based on specific operational requirements.
Technical Parameters:
| Standard |
ISO 15552 |
| Cylinder Bore |
32 mm |
| Brand |
IMI Norgren |
| Operation |
Double Acting |
| Type |
Standard Cylinder |
| Port Size |
G1/8 |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the management of assembly lines and the operation of equipment designed for handling materials efficiently.
Packaging Machinery
In packaging processes, machinery is utilized for tasks such as sorting products, pushing them along the line, and accurately positioning items to ensure smooth workflow.
Automotive Industry
The automotive sector relies heavily on automation for component assembly, conducting tests with specialized fixtures, and streamlining production line activities to boost efficiency.
Railway Applications
Equipment used in railway environments is rigorously tested for shock and vibration according to the EN 61373 standards, specifically meeting Category 1, Class A and B requirements, ensuring reliability under harsh conditions.
Food & Beverage
Applications in the food and beverage industry require compatibility with compressed air systems, whether the air is filtered, lubricated, or non-lubricated, maintaining hygiene and operational integrity.
Electronics Manufacturing
Precision is paramount in electronics manufacturing, where equipment is tasked with exact positioning and careful handling of delicate components throughout the production process.
Mechanical Engineering
Mechanical engineering involves the use of linear actuators for general motion control within machine construction and bespoke machinery designed for specific functions.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.
We offer detailed product documentation, including user manuals, datasheets, and CAD models to help you integrate the pneumatic cylinder seamlessly into your systems. Our support team is knowledgeable in addressing common issues such as air leakage, cylinder sticking, and performance inconsistencies.
Regular maintenance services are recommended to prolong the life of your pneumatic cylinder. This includes routine inspection of seals, lubrication of moving parts, and verification of mounting hardware. We also provide repair and replacement services for worn or damaged components to minimize downtime.
For custom applications, our engineering team can assist with cylinder sizing, stroke length adjustments, and special configurations to meet your specific requirements. We are committed to delivering high-quality support and services to ensure your satisfaction and the success of your projects.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent moisture and dust ingress. It is then securely placed in a custom-fitted foam insert that cushions against shocks and vibrations.
The foam-protected cylinder is placed inside a sturdy corrugated cardboard box designed to withstand rough handling. The box is sealed with high-quality packing tape and clearly labeled with handling instructions and product details.
For shipping, we use reliable carriers with tracking capabilities to ensure timely and safe delivery. All shipments include insurance coverage for added security. We also offer expedited shipping options upon request to meet urgent project deadlines.
Upon receipt, customers are advised to inspect the packaging for any signs of damage before opening and to report any issues immediately to our customer service team for prompt resolution.
