Product Description:

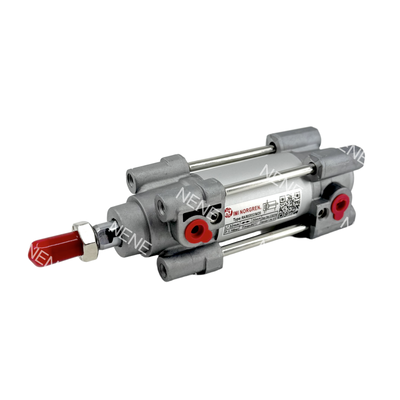

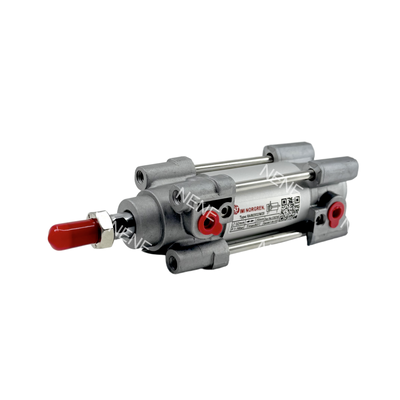

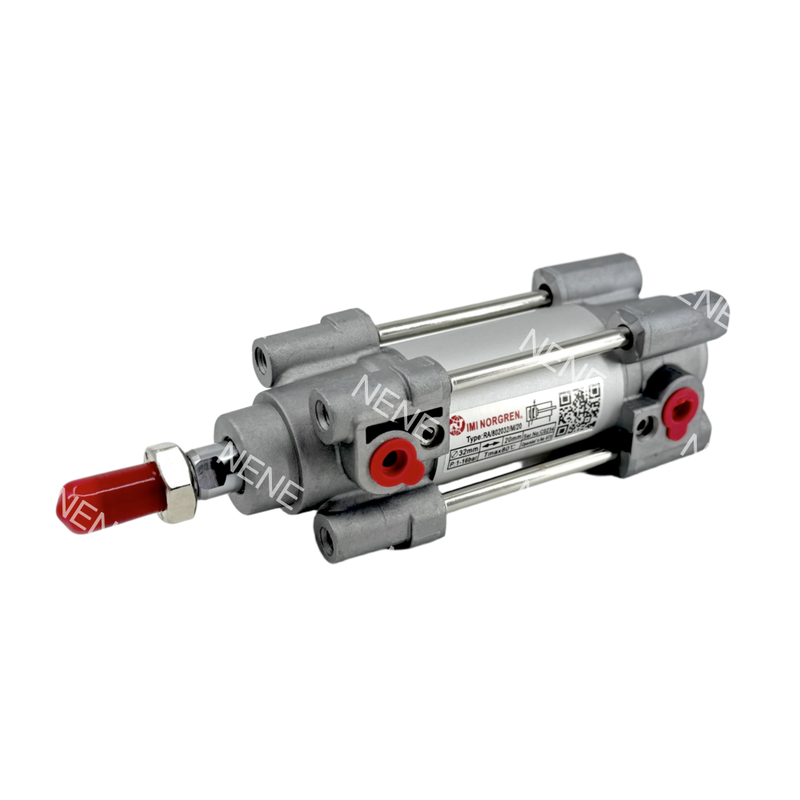

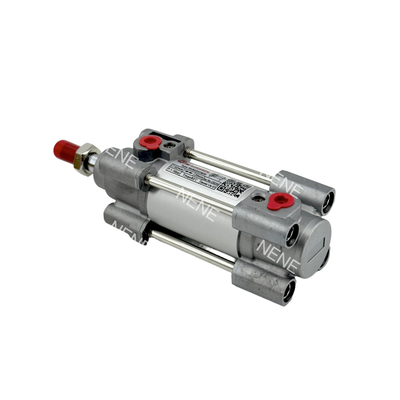

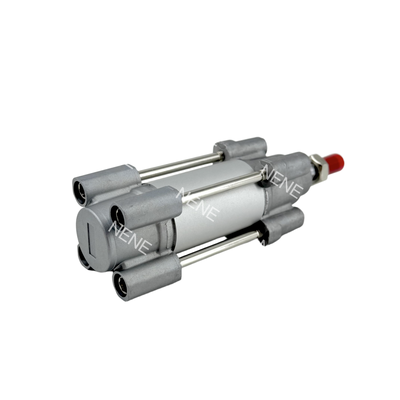

The IMI Norgren RA/802032/M Series represents a high-performance double-acting pneumatic cylinder, engineered to meet the ISO 15552 standard. Part of the esteemed ISOLine family, this cylinder features a 32mm bore diameter and is offered in a wide range of stroke lengths, spanning from 20mm up to 1000mm. It is specially designed to provide reliable and efficient linear motion across diverse industrial automation applications.
Central to this cylinder’s outstanding performance is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adapts the cushioning effect based on varying load conditions, entirely removing the need for manual adjustments of cushion screws or specialized technical knowledge. Consequently, this leads to smoother and safer operations, decreases maintenance requirements, and extends the overall service life of the cylinder.
Constructed with a sturdy round barrel and reinforced by external tie rods, the RA/802032/M Series boasts exceptional durability, making it well-suited for demanding and harsh industrial environments. Additionally, it is equipped with a magnetic piston as standard, allowing for straightforward position sensing when used with compatible reed or solid-state switches. Compliance with standards such as ISO 15552, VDMA 24562, and NFE 49-003-1 ensures that this cylinder maintains interchangeability and meets global quality and safety benchmarks.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying load conditions. This eliminates the need for manual adjustments and guarantees smooth and safe operation under different working loads.
Compliance with International Standards
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, ensuring global interchangeability and adherence to rigorous quality and safety requirements.
Durable Construction
Featuring a round barrel design complemented by external tie rods, the construction offers superior durability, making it ideal for use in aggressive and demanding environments.
Magnetic Piston for Position Sensing
The standard magnetic piston facilitates easy and reliable position sensing through the use of reed or solid-state switches, enhancing monitoring and control capabilities.
Wide Operating Pressure Range
Capable of functioning within a pressure range of 1 to 16 bar, this actuator is suitable for a diverse array of applications across different industries.
Flexible Stroke Options
A wide selection of both standard and custom stroke lengths are available, allowing for versatile application and precise adaptation to specific requirements.
Low Maintenance Design
Equipped with polyurethane seals, the device ensures low-friction operation and contributes to an extended service life while minimizing maintenance efforts.
Shock and Vibration Resistance
Tested according to EN 61373 Category 1, Class A + B standards, this product meets stringent criteria for shock and vibration resistance, making it suitable for rail and other rigorous environments.
Variety of Available Variants
Multiple variants are offered to suit specific needs, including options for different piston rod materials, special wiper configurations, low friction seals, and extended piston rods to accommodate various application demands.
Technical Parameters:
| Brand |
IMI Norgren |
| Port Size |
G1/8 |
| Operation |
Double Acting |
| Cylinder Bore |
32 Mm |
| Type |
Standard Cylinder |
| Standard |
ISO 15552 |
Applications:
Industrial Automation
This sector encompasses a wide range of applications including general factory automation, the operation of assembly lines, and the management of material handling equipment. These systems streamline production processes and enhance efficiency.
Packaging Machinery
Packaging machinery involves tasks such as product sorting, pushing, and precise positioning. These operations are critical to ensuring products are handled correctly and prepared for distribution.
Automotive Industry
Within the automotive sector, automation plays a key role in component assembly, testing fixtures, and overall production line automation. These technologies contribute to improved accuracy and higher throughput.
Railway Applications
Railway equipment is designed to meet stringent standards, having undergone shock and vibration testing according to EN 61373 Category 1, Class A + B. This ensures durability and reliable performance in demanding environments.
Food & Beverage
Equipment used in the food and beverage industry is suitable for operation with compressed air, whether filtered, lubricated, or non-lubricated, maintaining hygiene and performance standards.
Electronics Manufacturing
In electronics manufacturing, precision positioning and component handling are essential. Automation solutions provide the accuracy required for delicate and intricate assembly processes.
Mechanical Engineering
Mechanical engineering applications benefit from general linear actuation technologies used in machine building and the development of special-purpose machinery. These actuators enable versatile and efficient motion control.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure you have the model number, specifications, and details of the issue ready when seeking assistance.
We offer comprehensive services including installation guidance, maintenance advice, troubleshooting assistance, and replacement parts information. Our support team is equipped to help you optimize the use of your pneumatic cylinder and resolve any operational problems promptly.
Regular maintenance is recommended to ensure the longevity and optimal functioning of the piston pneumatic cylinder. This includes checking for air leaks, inspecting seals and rods for wear, and ensuring proper lubrication.
For technical documentation, manuals, and detailed product specifications, please refer to the product resources provided with your purchase or visit our official website.
We are committed to providing excellent customer service and support to help you achieve the best performance from your pneumatic systems.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. The cylinder is first wrapped in protective foam to prevent scratches and damage during transit. It is then placed inside a sturdy, custom-fitted cardboard box designed to minimize movement and absorb shocks.
For added safety, the box is sealed with heavy-duty tape and labeled with handling instructions such as "Fragile" and "Handle with Care". Multiple boxes are securely packed into a larger shipping carton with cushioning materials to further protect the products during shipping.
We offer various shipping options to meet your delivery needs, including standard, expedited, and freight services. All shipments are tracked and insured to provide peace of mind. Upon receiving your order, please inspect the packaging and product carefully and report any damages immediately.
