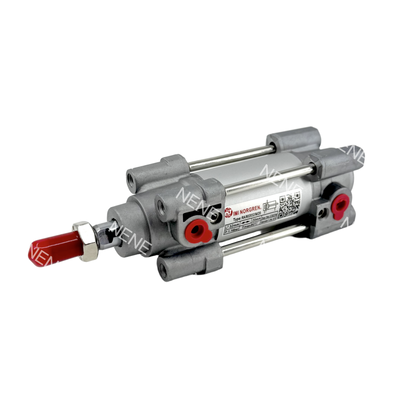

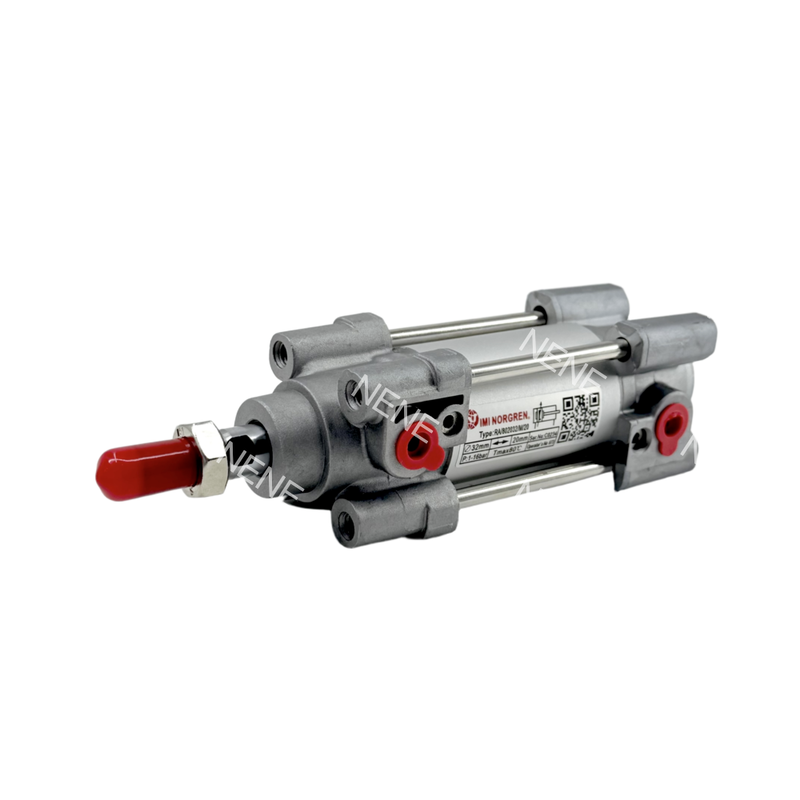

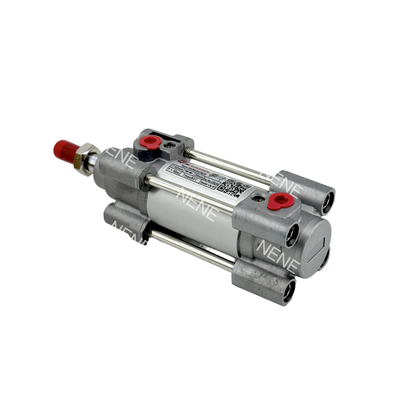

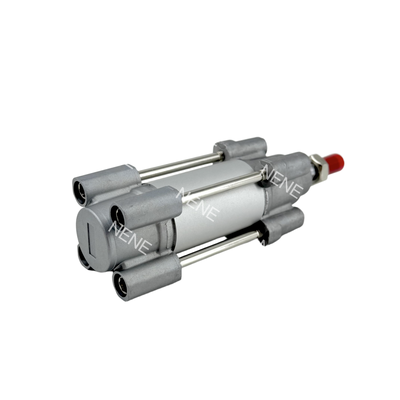

For Material Push Applications RA/802032/M/700 Norgren ISO Cylinder 700mm G1/8

Product Description:

The IMI Norgren RA/802032/M Series represents a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. Part of the esteemed ISOLine range, this cylinder features a 32mm bore diameter and is offered in an extensive range of stroke lengths, from 20mm up to 1000mm. It is engineered to provide reliable and efficient linear motion suitable for a diverse array of industrial automation tasks.

Central to the design of this cylinder is the cutting-edge Adaptive Cushioning System (ACS). This smart technology automatically modifies the cushioning effect in response to varying load conditions, removing the need for manual adjustments of cushion screws or specialized expertise. As a result, operations become smoother and safer, maintenance efforts and costs are lowered, and the overall service life of the cylinder is significantly prolonged.

Constructed with a sturdy round barrel and external tie rods, the RA/802032/M series is built to withstand demanding environments, offering exceptional durability. It also includes a magnetic piston as a standard feature, which facilitates straightforward position sensing when used with compatible reed or solid-state switches. Compliant with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and meets global quality benchmarks.

Features:

The Adaptive Cushioning System (ACS) automatically adjusts cushioning based on varying loads. This innovation eliminates the need for manual adjustments, ensuring smooth and safe operation under different working conditions.

This product adheres to the ISO 15552 standard, as well as VDMA 24562 and NFE 49-003-1 standards. Compliance with these regulations guarantees global interchangeability and compatibility.

The round barrel design, reinforced with external tie rods, offers exceptional durability. This robust construction makes the product ideal for use in aggressive and demanding environments.

Equipped with a standard magnetic piston, the product facilitates easy position sensing. It is compatible with both reed and solid-state switches, providing versatility in monitoring applications.

Capable of operating within a wide pressure range from 1 to 16 bar, this product is suitable for a diverse array of applications, meeting various performance requirements.

A broad selection of stroke lengths is available, including both standard and non-standard options, allowing customization to fit specific application needs.

Featuring polyurethane seals, the product ensures efficient, low-friction operation and a long service life while minimizing maintenance requirements.

The product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, making it highly reliable for rail applications subjected to shock and vibration.

Various product variants are offered, allowing compatibility with different piston rod materials, special wipers, low friction seals, and extended piston rods to meet specialized application demands.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinders are designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please ensure you have the model number, specifications, and operating conditions of your cylinder available when seeking assistance.

We offer comprehensive troubleshooting guidance, maintenance tips, and repair services to help maximize the lifespan and performance of your pneumatic cylinder. Our support team can assist with installation instructions, system integration advice, and replacement part identification to ensure optimal operation.

For service and maintenance, regular inspection of seals, rods, and mounting components is recommended to prevent leaks and wear. Lubrication schedules should be followed according to the product manual to maintain smooth operation. In case of any operational issues, such as air leaks, unusual noises, or performance degradation, please refer to the troubleshooting section of the product documentation.

We also provide customized solutions and technical consultation to meet specific application requirements. Our engineering team is available to assist with design modifications, sizing, and compatibility questions to ensure the pneumatic cylinder meets your exact needs.

For warranty and repair services, please follow the procedures outlined in the warranty policy. Proper packaging and shipping instructions must be adhered to when returning products for service to prevent damage during transit.

We are committed to supporting our customers with high-quality products and responsive technical service to ensure your operations run smoothly and efficiently.
