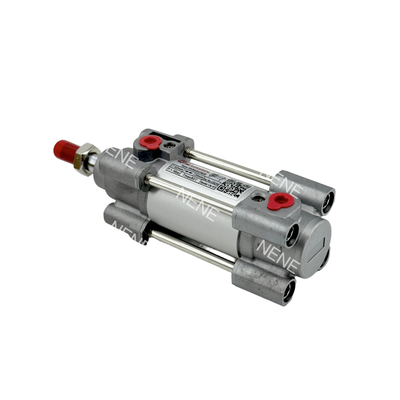

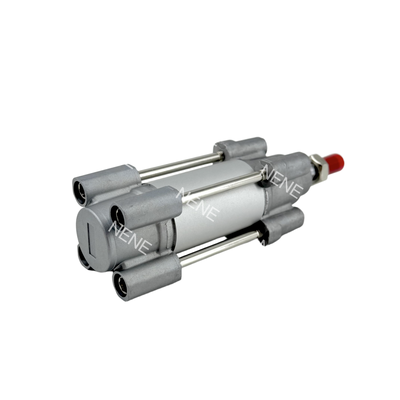

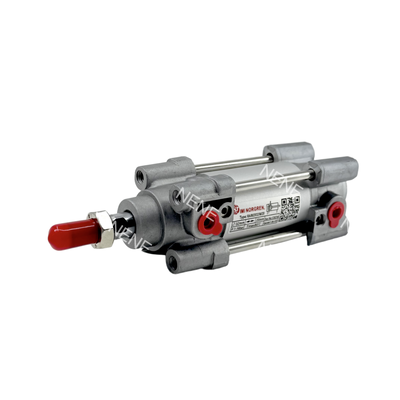

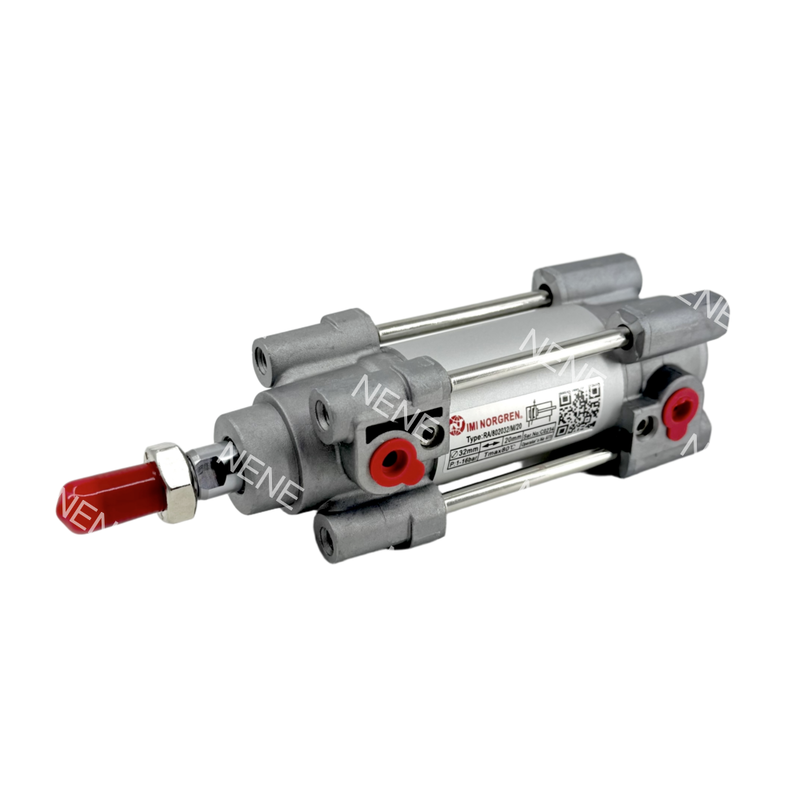

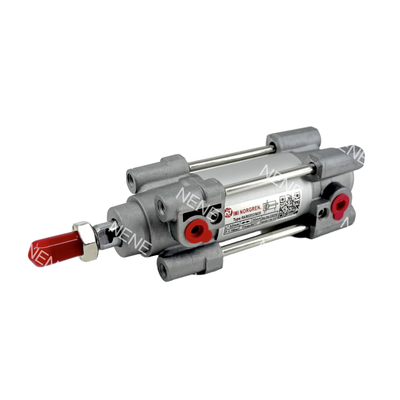

ISO 15552 RA/802032/M/500 Air Cylinder Norgren 500mm Stroke 1 to 16 bar for General Automation

Product Description:

The IMI Norgren RA/802032/M Series belongs to the distinguished ISOLine collection and represents a high-performance double-acting pneumatic cylinder that complies with the ISO 15552 standard. It features a bore diameter of 32mm and is available in an extensive range of stroke lengths spanning from 20mm up to 1000mm. This versatility makes it ideal for delivering dependable and efficient linear motion across a broad spectrum of industrial automation tasks.

Central to the design of this cylinder is the cutting-edge Adaptive Cushioning System (ACS). This smart technology dynamically adjusts the cushioning to suit varying load conditions, thereby removing the necessity for manual adjustments of cushion screws or the requirement of specialized expertise. As a result, users benefit from smoother and safer operation, decreased maintenance needs, and a prolonged operational lifespan.

Constructed with a solid round barrel and equipped with external tie rods, the RA/802032/M Series ensures enhanced durability, making it well-suited for harsher environmental conditions. The cylinder is equipped with a standard magnetic piston which facilitates straightforward position sensing when paired with compatible reed or solid-state switches. Meeting the ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this product guarantees interchangeability and worldwide compliance.

Features:

The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation under different conditions.

This product adheres to the ISO 15552 standard as well as VDMA 24562 and NFE 49-003-1. Such compliance guarantees global interchangeability and reliability.

Featuring a round barrel design with external tie rods, the construction offers exceptional durability. It is specifically engineered to withstand aggressive environments.

Equipped with a standard magnetic piston, it facilitates easy and precise position sensing. This is compatible with reed or solid-state switches for efficient operation.

The device operates efficiently within a broad pressure range from 1 to 16 bar, making it suitable for a variety of applications.

Available in numerous standard and non-standard stroke lengths, it offers great flexibility to meet diverse operational requirements.

Utilizing polyurethane seals, the system ensures low-friction performance and a long service life, minimizing the need for frequent maintenance.

The product has undergone rigorous testing according to EN 61373 Category 1, Class A + B standards, confirming its suitability for rail applications with high shock and vibration demands.

Several variants are offered to cater to specific needs, including options for different piston rod materials, special wipers, low friction seals, and extended piston rods.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient performance in a variety of industrial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal operation of your pneumatic cylinder.

We recommend regular inspection and lubrication to extend the lifespan of the cylinder. Ensure that the pneumatic connections are secure and that the cylinder is operated within the specified pressure and temperature ranges.

If you encounter any issues, please refer to the user manual for detailed troubleshooting steps. Common issues such as air leaks, unusual noises, or reduced performance can often be resolved by checking seals, fittings, and alignment.

Our technical support team is available to assist with complex problems, custom configurations, and replacement parts to minimize downtime and maintain productivity.

Additionally, we offer maintenance and repair services to keep your pneumatic cylinders operating at peak efficiency. Regular maintenance contracts can be arranged to suit your operational needs.

For optimal results, always use genuine replacement parts and adhere to the recommended service intervals.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

Each piston pneumatic cylinder is carefully packaged to ensure safe delivery and to prevent damage during transit. The cylinder is first wrapped in protective foam or bubble wrap to safeguard against scratches and impacts. It is then placed inside a sturdy cardboard box, with additional cushioning materials such as air pillows or packing peanuts added to minimize movement within the box.

For bulk orders, individual cylinders are packed in separate boxes and then consolidated into larger cartons or wooden crates, depending on the size and quantity. All packaging materials used are of high quality to maintain the integrity of the product throughout the shipping process.

Shipping options include air freight, sea freight, and express courier services, tailored to meet customer requirements for speed and cost efficiency. Each shipment is labeled clearly with handling instructions and product details to facilitate smooth customs clearance and delivery.

We ensure timely dispatch and provide tracking information for all shipments so customers can monitor their orders until arrival. Proper care in packaging and shipping guarantees that the piston pneumatic cylinders arrive in perfect working condition, ready for immediate use.
