Product Description:

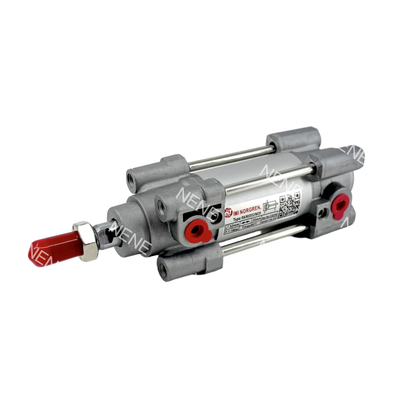

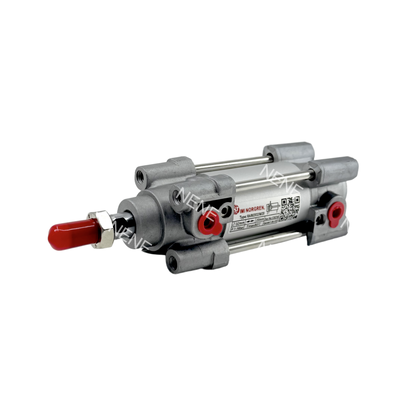

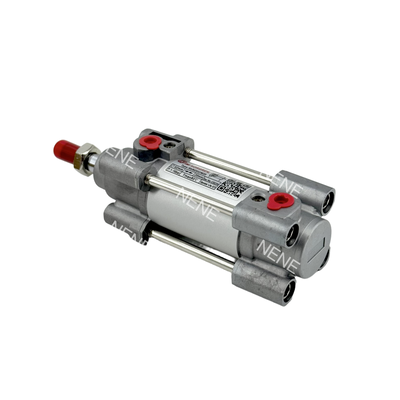

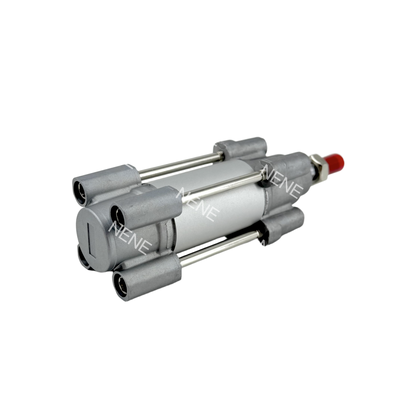

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder designed in accordance with the ISO 15552 standard. It is part of the well-known ISOLine product range and features a 32mm bore diameter. With an extensive variety of stroke lengths available, ranging from 20mm to 1000mm, this double-acting cylinder is engineered to provide consistent and efficient linear motion. It is ideal for a broad spectrum of industrial automation tasks, ensuring dependable operation in diverse applications.
A key feature of this cylinder is the advanced Adaptive Cushioning System (ACS). This smart technology automatically modifies the cushioning performance based on varying load conditions, removing the necessity for manual adjustments of cushion screws or specialized expertise. Consequently, the system facilitates smoother and safer operation, lowers maintenance expenses, and helps extend the overall lifespan of the cylinder.
Constructed with a sturdy round barrel and reinforced by external tie rods, the RA/802032/M Series is built to withstand demanding environments and maintain durability over time. Each cylinder is equipped with a magnetic piston, allowing for straightforward position sensing when used with compatible reed or solid-state switches. Compliance with international standards such as ISO 15552, VDMA 24562, and NFE 49-003-1 guarantees interchangeability and worldwide acceptance, making this series a reliable choice for global industrial automation needs.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and ensures smooth and safe operation under different working conditions.
Compliance with International Standards
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing global interchangeability and adherence to recognized industry benchmarks.
Robust and Durable Construction
Featuring a round barrel design with external tie rods, the construction offers superior durability and is well-suited for use in aggressive and demanding environments.
Magnetic Piston for Easy Position Sensing
Equipped with a standard magnetic piston, it allows for effortless position sensing by utilizing reed or solid-state switches, enhancing functionality and monitoring capabilities.
Wide Operating Pressure Range
The system operates efficiently within a broad pressure range from 1 to 16 bar, making it adaptable for a variety of applications and industries.
Versatile Stroke Length Options
Available in numerous standard and non-standard stroke lengths, the product provides versatility to meet different operational requirements.
Low Maintenance Design
The use of polyurethane seals ensures low-friction performance and a long service life, reducing maintenance needs and enhancing reliability.
Shock and Vibration Resistance
Tested according to EN 61373 Category 1, Class A + B standards, it is proven suitable for rail applications with high demands on shock and vibration resistance.
Multiple Variants for Customization
A variety of configuration options are available, including different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to specific requirements.
Technical Parameters:
| Brand |
IMI Norgren |
| Type |
Standard Cylinder |
| Standard |
ISO 15552 |
| Cylinder Bore |
32 mm |
| Port Size |
G1/8 |
| Operation |
Double Acting |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the operation of assembly lines and the management of material handling equipment. These systems help streamline production processes and improve overall efficiency.
Packaging Machinery
Packaging machinery involves tasks such as product sorting, pushing, and accurate positioning. These operations ensure that products are handled correctly during the packaging phase.
Automotive Industry
In the automotive sector, automation includes component assembly, the use of testing fixtures, and the overall automation of production lines to enhance manufacturing speed and quality.
Railway Applications
Equipment designed for railway applications is rigorously tested for shock and vibration resistance according to the EN 61373 standard, meeting the requirements of Category 1, Class A and B.
Food & Beverage
Products intended for use in the food and beverage industry are compatible with compressed air systems, whether filtered, lubricated, or non-lubricated, ensuring hygienic and reliable operation.
Electronics Manufacturing
Precision in positioning and component handling is critical in electronics manufacturing, where sophisticated automation contributes to the production of high-quality electronic devices.
Mechanical Engineering
Mechanical engineering applications include general linear actuation utilized in machine building as well as in the creation of specialized machinery tailored for specific purposes.
Support and Services:
Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We offer detailed installation guides, maintenance manuals, and troubleshooting documentation to assist users at every stage of operation.
Technical support is available to address any inquiries related to product specifications, compatibility, and application. Our team of experts is committed to providing timely and accurate solutions to help you maximize the efficiency of your pneumatic systems.
We also provide repair and replacement services for any manufacturing defects or operational issues under the product warranty. Regular maintenance services are recommended to prolong the lifespan of the piston pneumatic cylinders and maintain their reliability in demanding industrial environments.
For customized solutions, we offer consultation services to tailor the piston pneumatic cylinders to your specific application requirements, ensuring seamless integration into your existing systems.
By choosing our Piston Pneumatic Cylinder, you gain access to a full range of support and services designed to enhance your experience and ensure long-term success.
Packing and Shipping:
The Piston Pneumatic Cylinder is carefully packaged to ensure safe delivery and maintain product integrity. Each cylinder is wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during transit. Additional cushioning materials are used to secure the product and minimize movement within the package.
For shipping, we use reliable carriers with tracking options to provide timely and secure delivery. All shipments are inspected before dispatch to guarantee the correct product and quantity. Customers will receive a tracking number once the order has been shipped, allowing them to monitor the delivery status until it reaches their destination.
