Product Description:

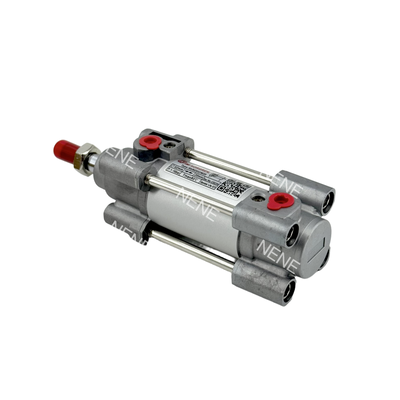

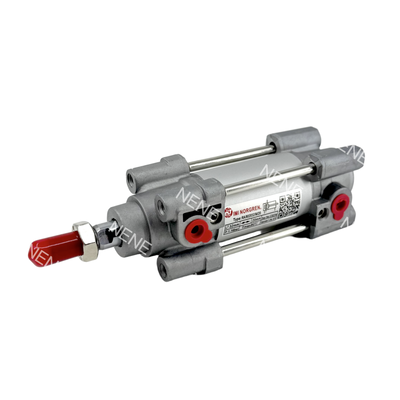

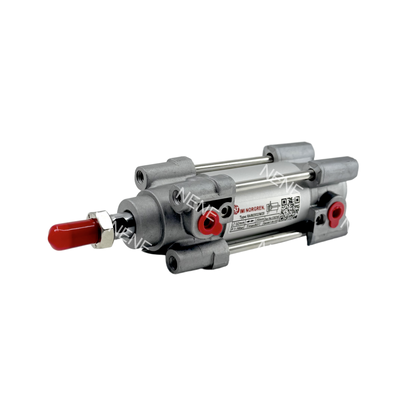

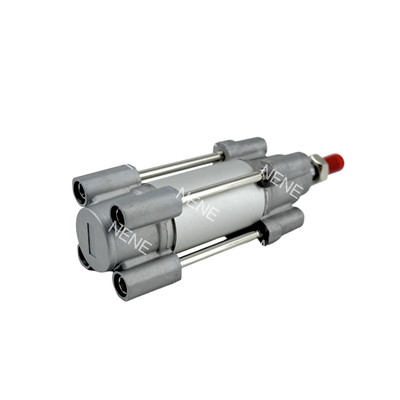

The IMI Norgren RA/802032/M Series represents a high-performance pneumatic cylinder adhering to the ISO 15552 standard. As a member of the esteemed ISOLine range, this double-acting cylinder features a 32mm bore diameter and comes in a wide array of stroke lengths, ranging from 20mm up to 1000mm. It is engineered to provide consistent and efficient linear motion, making it ideal for numerous industrial automation scenarios.
Central to this cylinder’s functionality is the innovative Adaptive Cushioning System (ACS). This smart mechanism automatically adapts the cushioning effect based on varying load conditions, removing the need for manual adjustments or specialized expertise. Consequently, it ensures smoother and safer operation, lowers maintenance requirements, and extends the overall service life of the cylinder.
Constructed with a sturdy round barrel and external tie rods, the RA/802032/M series delivers enhanced durability that is well-suited for demanding and harsh environments. Additionally, the cylinder is equipped with a magnetic piston as a standard feature, facilitating straightforward position sensing with compatible reed or solid-state sensors. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and global acceptance of this product.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning according to varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation in all conditions.
ISO 15552 Compliance
This product meets the standards of ISO 15552, VDMA 24562, and NFE 49-003-1, guaranteeing global interchangeability and compliance with international regulations.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability, making it ideal for use in aggressive and demanding environments.
Magnetic Piston
Equipped with a standard magnetic piston, it facilitates easy position sensing through the use of reed or solid-state switches, enhancing its functionality.
Wide Operating Pressure Range
This equipment operates efficiently within a wide pressure range, from 1 to 16 bar, making it suitable for a variety of applications across industries.
Versatile Stroke Selection
Available in a broad range of both standard and custom stroke lengths, it provides flexibility to meet diverse operational requirements.
Low Maintenance
With polyurethane seals incorporated, the system ensures low-friction operation and extends service life, reducing the need for frequent maintenance.
Shock and Vibration Tested
The product has been rigorously tested to comply with EN 61373 Category 1, Class A + B standards, making it reliable for demanding rail applications.
Multiple Variants Available
A variety of options are offered including different piston rod materials, specialized wipers, low friction seals, and extended piston rods, allowing customization to specific needs.
Technical Parameters:
| Port Size | G1/8 |
| Cylinder Bore | 32 mm |
| Operation | Double Acting |
| Standard | ISO 15552 |
| Brand | IMI Norgren |
| Type | Standard Cylinder |
Applications:
Industrial Automation
This sector includes general factory automation processes, such as assembly lines and equipment designed for efficient material handling. These systems streamline production workflows and enhance overall operational efficiency.
Packaging Machinery
Packaging machinery involves tasks like product sorting, pushing, and precise positioning. These operations are critical to ensuring that packages are assembled correctly and efficiently during the manufacturing process.
Automotive Industry
In the automotive sector, automation is applied in component assembly, testing fixtures, and the automation of production lines. These applications contribute to improved accuracy and productivity in vehicle manufacturing.
Railway Applications
Equipment used in railway applications is rigorously tested for shock and vibration according to the EN 61373 standard, specifically Category 1, Classes A and B, ensuring durability and reliability under harsh conditions.
Food & Beverage
The food and beverage industry utilizes these technologies with compressed air systems that can be filtered, lubricated, or non-lubricated, catering to diverse operational requirements and maintaining hygiene standards.
Electronics Manufacturing
In electronics manufacturing, precision positioning and careful component handling are crucial. Automation solutions are designed to meet these needs, enhancing both accuracy and efficiency in production.
Mechanical Engineering
Mechanical engineering benefits from general linear actuation systems, which are employed in machine construction and special-purpose machinery. These systems enable precise and reliable motion control within various industrial applications.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization.
Our support team is equipped to help you with selecting the right cylinder size and specifications to meet your project requirements. We provide detailed technical documentation, including datasheets, operation manuals, and CAD drawings to assist with your design and integration processes.
We also offer repair and refurbishment services to extend the lifecycle of your pneumatic cylinders. Preventive maintenance advice is available to help you avoid unexpected downtime and ensure consistent operation.
For any operational issues, our experts can assist in diagnosing problems related to air pressure, sealing, wear and tear, and mounting. We recommend regular inspection and proper lubrication to maintain optimal cylinder performance.
Additionally, we provide customization options for special applications, including custom stroke lengths, mounting styles, and materials to suit specific environmental conditions.
Our commitment is to support your needs throughout the product lifecycle, ensuring maximum uptime and productivity with our Piston Pneumatic Cylinder solutions.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and secured with plastic film to prevent dust and moisture damage. It is then placed in a sturdy, custom-fitted cardboard box with additional cushioning materials inside to absorb shocks and vibrations. All packaging materials are eco-friendly and recyclable.
Shipping: We offer reliable shipping options worldwide to deliver your Piston Pneumatic Cylinder safely and on time. Orders are processed within 1-2 business days, and tracking information is provided once the shipment is dispatched. Our logistics partners ensure secure handling and timely delivery, with options for expedited shipping available upon request. For bulk orders, please contact our sales team for customized shipping solutions.
