Product Description:

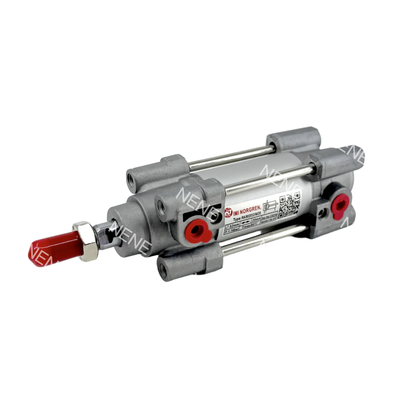

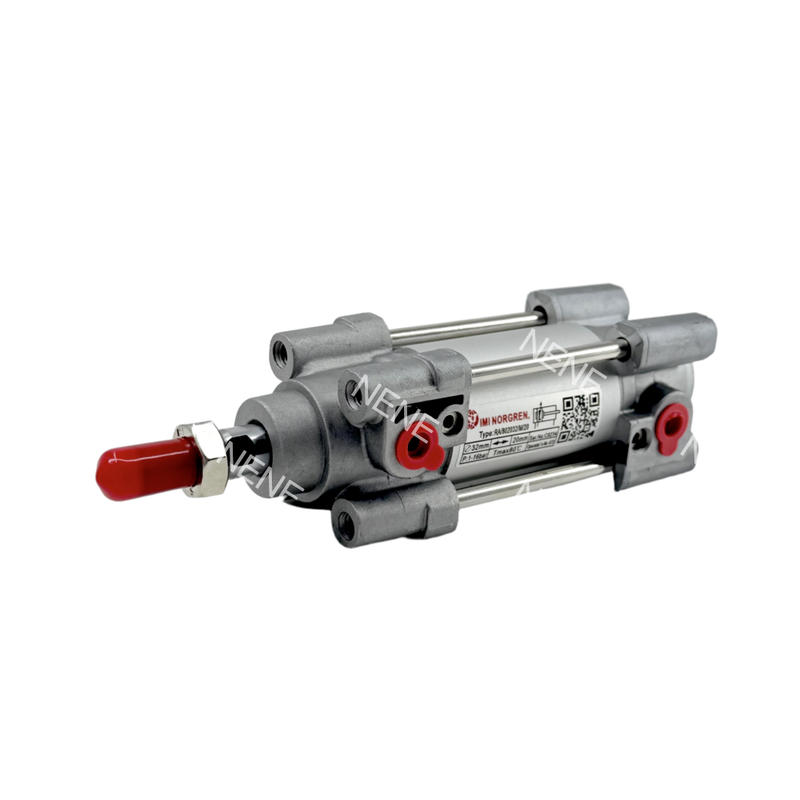

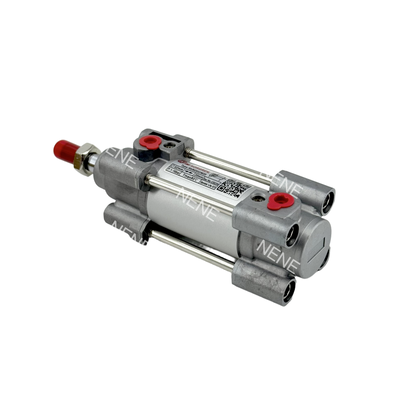

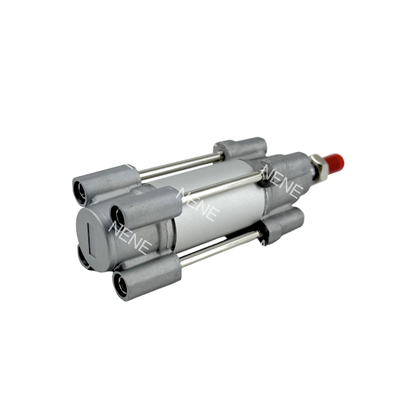

The IMI Norgren RA/802032/M Series represents a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. Part of the well-known ISOLine range, this cylinder features a 32mm bore diameter and is available in an extensive range of stroke lengths, spanning from 20mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it ideal for a broad spectrum of industrial automation tasks.
Central to the design of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart technology automatically modifies the cushioning performance to suit varying load conditions, thereby eliminating the requirement for manual cushion screw adjustments or specialized expertise. The outcome is a smoother and safer operation, lower maintenance expenses, and a prolonged service lifespan.
Constructed with a durable round barrel and external tie rods, the RA/802032/M Series is built to withstand harsh operating environments. Additionally, the cylinder is equipped with a magnetic piston as a standard feature, which facilitates straightforward position sensing when paired with compatible reed or solid-state switches. Compliant with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and meets global quality requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and ensures smooth and safe operation under different conditions.
ISO 15552 Compliance
This product conforms to international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such compliance guarantees compatibility and interchangeability on a global scale.
Robust Construction
Featuring a round barrel design with external tie rods, the construction provides exceptional durability. This makes it well-suited for use in aggressive or demanding environments.
Magnetic Piston
Equipped with a standard magnetic piston, the system allows for easy position sensing through reed or solid-state switches, enhancing operational monitoring and control.
Wide Operating Pressure Range
The device operates effectively within a pressure range from 1 to 16 bar, making it adaptable to a variety of different applications and requirements.
Versatile Stroke Selection
It is available in a wide range of both standard and non-standard stroke lengths, offering versatility to match diverse application needs.
Low Maintenance
Utilizing polyurethane seals, the design ensures low-friction operation and long service life, reducing the need for frequent maintenance.
Shock and Vibration Tested
This product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, confirming its suitability for rail applications subjected to shock and vibration.
Multiple Variants Available
There are multiple variants compatible with different options, including various piston rod materials, special wipers, low friction seals, and extended piston rods, providing customization to specific operational requirements.
Technical Parameters:
| Cylinder Bore |
32 Mm |
| Brand |
IMI Norgren |
| Operation |
Double Acting |
| Port Size |
G1/8 |
| Type |
Standard Cylinder |
| Standard |
ISO 15552 |
Applications:
Industrial Automation
This sector encompasses general automation solutions for factories, including assembly line processes and material handling equipment. These systems are designed to streamline production and increase operational efficiency.
Packaging Machinery
Packaging operations involve functions such as product sorting, pushing, and precise positioning. These automated machinery components improve packaging speed and accuracy.
Automotive Industry
Automation in the automotive sector includes component assembly, testing fixtures, and the optimization of production line workflows. These technologies ensure high-quality manufacturing standards.
Railway Applications
Equipment used in railway applications undergoes rigorous shock and vibration testing in accordance with EN 61373 Category 1, Class A and B standards, guaranteeing durability and reliability under harsh conditions.
Food & Beverage
The machinery designed for the food and beverage industry is compatible with compressed air systems, whether they are filtered, lubricated, or non-lubricated. This adaptability supports hygienic and efficient operation.
Electronics Manufacturing
Precision positioning and careful component handling are critical in electronics manufacturing. Automated solutions cater to these requirements, ensuring accuracy and reducing the risk of damage.
Mechanical Engineering
In mechanical engineering, general linear actuation plays a vital role in machine building as well as the development of special-purpose machinery. These actuators provide the necessary movement and control for various applications.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial applications. We offer comprehensive technical support to ensure optimal operation and maintenance of the cylinder.
Technical support includes assistance with installation, troubleshooting, and system integration to help you achieve the best results. Our experts are available to provide guidance on selecting the right cylinder size, stroke length, and mounting options based on your specific requirements.
We also provide detailed product documentation, including user manuals, maintenance guidelines, and safety instructions to help you properly operate and care for your pneumatic cylinder.
In addition to technical support, we offer a range of services such as custom modifications, repair, and replacement parts to extend the lifespan and enhance the performance of your pneumatic cylinder.
Our commitment is to deliver high-quality support and service to ensure your pneumatic systems operate smoothly and efficiently, minimizing downtime and maximizing productivity.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and enclosed in a sturdy, custom-fitted cardboard box to prevent any damage from shocks or vibrations.
For added security, the boxes are sealed with tamper-evident tape and clearly labeled with handling instructions and product details. Multiple units are then placed in larger cartons with cushioning materials to avoid movement.
We offer reliable shipping options worldwide, including standard and expedited services. All shipments are tracked and insured to guarantee safe and timely delivery to your specified location.
Upon receiving your Piston Pneumatic Cylinder, please inspect the package for any signs of damage and contact our support team immediately if any issues are found. Your satisfaction is our priority.
