Product Description:

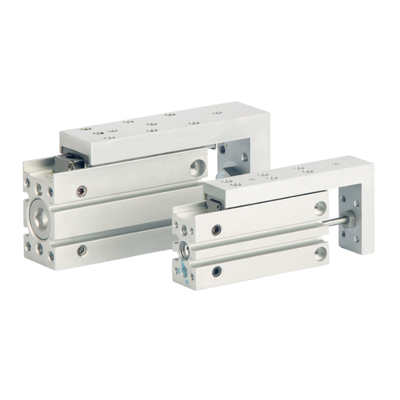

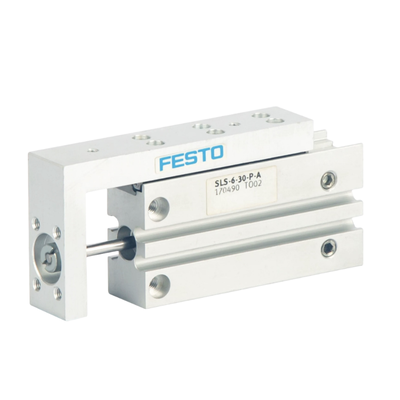

The FESTO SLS Series represents the original slim double-acting mini slide cylinders developed by Festo. This comprehensive series features three different bore sizes: 6mm, 10mm, and 16mm. Users can select from various stroke lengths ranging from 5mm up to 30mm, allowing for versatile application options.
These mini slide cylinders are equipped with an integrated ball cage precision linear guide, ensuring smooth and accurate motion. Additionally, they include built-in elastic end cushioning on both sides, which helps to absorb shock and enhance durability during operation.
A notable feature of the SLS Series is the integrated yoke slide that contains an embedded permanent magnet. This design enables position feedback through magnetic proximity sensors, providing reliable and precise monitoring of the slide’s position.
With a slim and compact profile, the cylinders are designed with standard M5 air ports and offer three universal mounting surfaces located on the housing, slide, and yoke plate. This makes them ideal as standard pneumatic actuators for micro precision linear motion applications, especially in environments where space is limited in miniature automation systems.
Features:
The product offers a comprehensive range of specifications, featuring bore sizes of 6mm, 10mm, and 16mm. It also provides flexible options for stroke lengths, including 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, allowing users to select the most suitable configuration for their specific needs.
Equipped with standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is made from aluminum alloy, paired with a stainless steel guide shaft that delivers excellent resistance against wear and corrosion, enhancing the product’s durability and lifespan.
The linear guide utilizes a rigid ball cage structure, which provides outstanding resistance to side loads and torque. This design ensures a high repeat positioning accuracy of ±0.01mm, resulting in smooth and stable motion during operation.
Additionally, the yoke slide incorporates a built-in permanent magnet that is compatible with magnetic proximity switches. This feature enables precise detection of piston positions without the need for extra magnet accessories, simplifying installation and maintenance.
Technical Parameters:
| Operating Pressure |
0.15 MPa ... 1 MPa |
| Piston Diameter |
6 mm |
| Mounting Position |
Any |
| Stroke |
5 mm |
| Temperature Range |
-20 °C ... 60 °C |
| Mode of Operation |
Double-acting |
Applications:
3C Electronics Automation
Our automation solutions for 3C electronics encompass a range of processes including transfer, feeding, and precise positioning. We specialize in material stopping and micro pressing functions tailored for tiny components used in mobile phones and chips.
Semiconductor Precision Testing
We provide advanced modules designed for semiconductor precision testing. These include probe lifting mechanisms, fine lens adjustment systems, wafer sorting capabilities, and micro component feeding units to ensure accuracy and efficiency.
Medical Device Cleanroom Lines
Our cleanroom line solutions for medical devices focus on precise micro reagent delivery, mini fixture positioning, and the sorting of medical consumables. These drives help maintain high standards of cleanliness and accuracy required in medical environments.
Compact Food Packaging Equipment
The equipment we offer for compact food packaging includes material separation and stopping functions, sealing assistance systems, as well as lightweight small part sorting and feeding technologies to optimize your packaging processes.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient pneumatic power for a wide range of industrial applications. For technical support, please refer to the product manual included with your purchase, which contains detailed information on installation, operation, and maintenance procedures.
If you encounter any issues during installation or operation, ensure that all connections are secure and that the cylinder is compatible with your system specifications. Regular maintenance, including lubrication and inspection of seals, will help extend the service life of the cylinder.
We also offer a range of services including troubleshooting assistance, repair, and replacement of parts to ensure minimal downtime. Our technical support team is equipped to help you optimize the performance of your pneumatic cylinder and provide solutions tailored to your specific application needs.
For detailed technical documentation, CAD drawings, and application guides, please visit our website or access the online support portal. We are committed to providing high-quality support and services to help you achieve the best results with your Piston Pneumatic Cylinder.
Packing and Shipping:

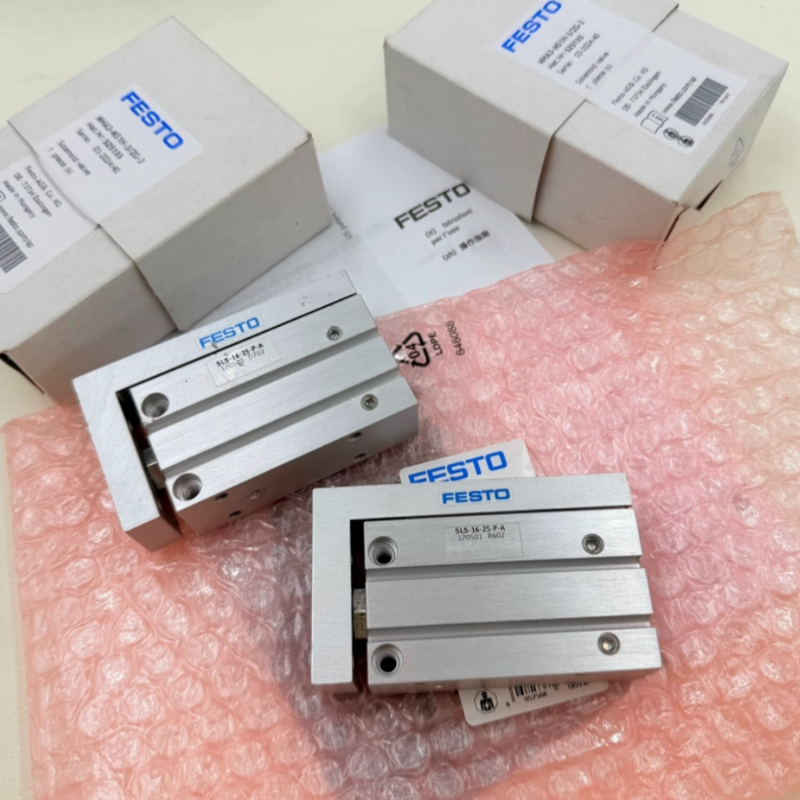

Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped with protective materials to prevent scratches and damage. The product is then placed in a sturdy, corrugated cardboard box with custom foam inserts to keep it stable and cushioned throughout the shipping process.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are clearly labeled with handling instructions and product details to facilitate smooth logistics. We also offer additional packaging options upon request for bulk orders or special shipping requirements.
