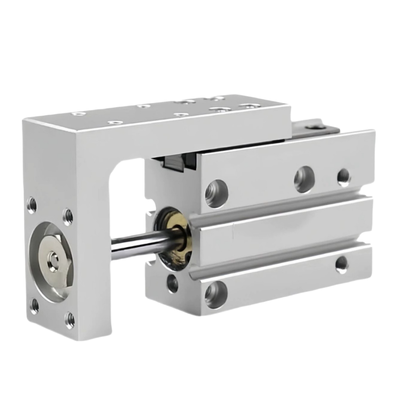

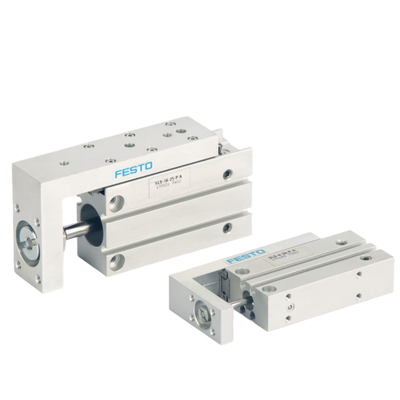

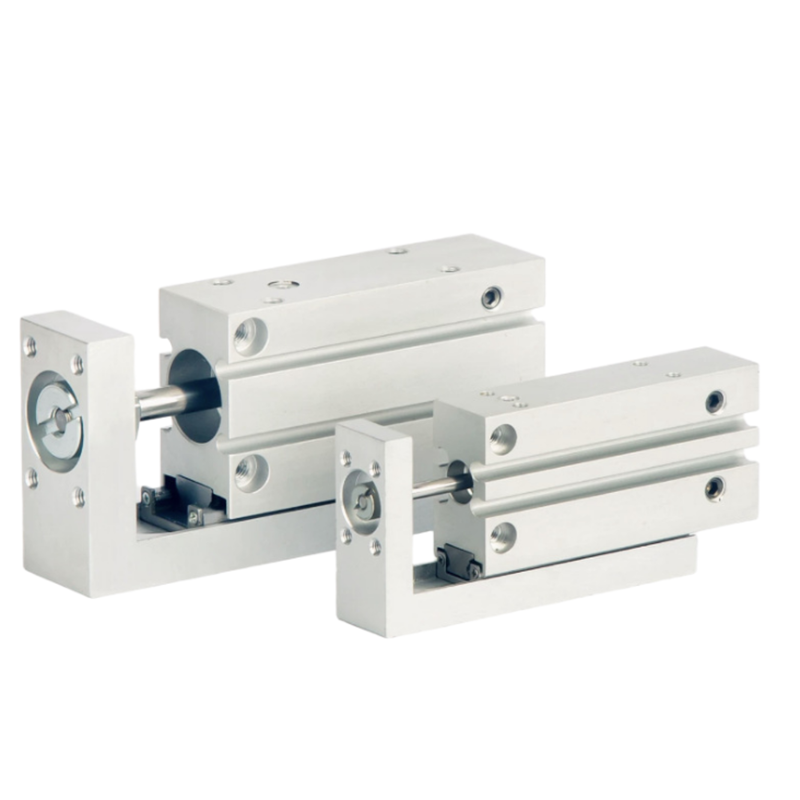

Product Description:
The FESTO SLS Series represents the original slim double-acting mini slide cylinders developed by Festo. This series offers three bore sizes: 6mm, 10mm, and 16mm, providing flexibility to suit various application requirements. Stroke lengths are adjustable, ranging from 5mm up to 30mm, allowing for precise control in different operational settings.
Each cylinder is equipped with an integrated ball cage precision linear guide, ensuring smooth and accurate linear motion. Additionally, the design includes built-in elastic end cushioning on both ends to absorb impact and enhance durability during operation, contributing to reliable performance over time.
A key feature of the integrated yoke slide is the embedded permanent magnet, which enables position feedback through magnetic proximity sensors. This facilitates precise monitoring and control of the cylinder’s position, making it ideal for applications that require exact linear movement.
The SLS Series is characterized by its slim and compact design, which includes standard M5 air ports for easy connection. It also offers three universal mounting surfaces on the housing, slide, and yoke plate, providing versatile installation options. This series is specifically designed to deliver micro precision linear motion within confined spaces, serving as a standard pneumatic actuator solution for miniature automation tasks.
Features:
The complete range of specifications includes bore sizes of 6mm, 10mm, and 16mm, with optional stroke lengths of 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, allowing for flexible selection to suit various application needs.
Equipped with standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is made from aluminum alloy, while the guide shaft is constructed from stainless steel, providing excellent resistance to wear and corrosion for enhanced durability.
The linear guide features a rigid ball cage structure that offers outstanding resistance against side loads and torque. It achieves a repeat positioning accuracy of ±0.01mm, ensuring stable and precise motion throughout its operation.
A built-in permanent magnet is integrated into the yoke slide, making it compatible with magnetic proximity switches. This allows for accurate piston position detection without the need for additional magnet accessories, simplifying installation and maintenance.
Technical Parameters:
| Piston Diameter |
6 mm |
| Stroke |
5 mm |
| Operating Pressure |
0.15 MPa ... 1 MPa |
| Mode of Operation |
Double-acting |
| Mounting Position |
Any |
| Temperature Range |
-20 °C ... 60 °C |
Applications:
3C Electronics Automation
Our automation solutions for 3C electronics encompass various processes such as transfer, feeding, and positioning. We specialize in material stopping and micro pressing techniques tailored for tiny components used in mobile phones and chips, ensuring high precision and efficiency.
Semiconductor Precision Testing
We provide advanced modules dedicated to semiconductor precision testing. These include probe lifting mechanisms, finely adjustable lenses, wafer sorting systems, and micro component feeding units, all designed to meet the stringent demands of semiconductor manufacturing.
Medical Device Cleanroom Lines
Our cleanroom line solutions for medical devices focus on micro reagent delivery and mini fixture positioning. Additionally, we offer drives for sorting medical consumables, ensuring cleanliness and accuracy in sensitive medical manufacturing environments.
Compact Food Packaging Equipment
For the food packaging industry, our compact equipment handles tasks such as material separation and stopping, sealing assistance, as well as sorting and feeding of lightweight small parts. These systems are designed to optimize packaging efficiency and reliability.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and durability in various industrial applications. For technical support, please ensure you have the model number and specifications of your cylinder ready to facilitate efficient assistance. We offer comprehensive troubleshooting guides, maintenance tips, and installation instructions to help you maximize the lifespan and functionality of your pneumatic cylinder.
Services include routine maintenance checks, repair services, and replacement parts supply. Our team of experts can assist with system integration advice and custom configuration to meet your specific operational requirements. We recommend regular inspection of seals, pistons, and rods to prevent leaks and ensure optimal performance.
For detailed technical documentation, including CAD drawings, user manuals, and safety instructions, please refer to our online resources. We are committed to providing prompt and effective support to help you resolve any issues and enhance your experience with our Piston Pneumatic Cylinder products.
Packing and Shipping:

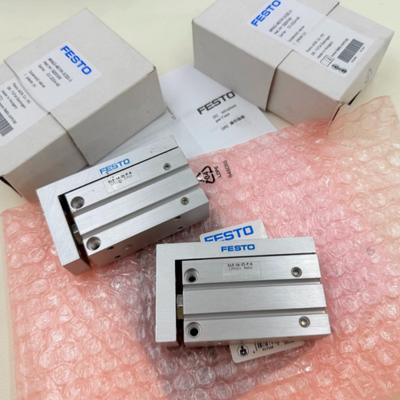

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and sealed in a plastic bag to prevent moisture and dust contamination. It is then placed in a custom-fitted cardboard box with additional cushioning materials to absorb shocks and vibrations.
For shipping, we use sturdy outer cartons with clear labeling indicating the product type and handling instructions. All packages are securely sealed and reinforced with packing tape to withstand handling during transportation. Depending on the destination, products are shipped via reliable courier services with tracking options to ensure timely and safe delivery.
We recommend inspecting the package upon arrival for any visible damage and reporting any issues immediately to our customer service team. Proper packaging and shipping procedures help maintain the quality and performance of the Piston Pneumatic Cylinder until it reaches the customer.
