Product Description:

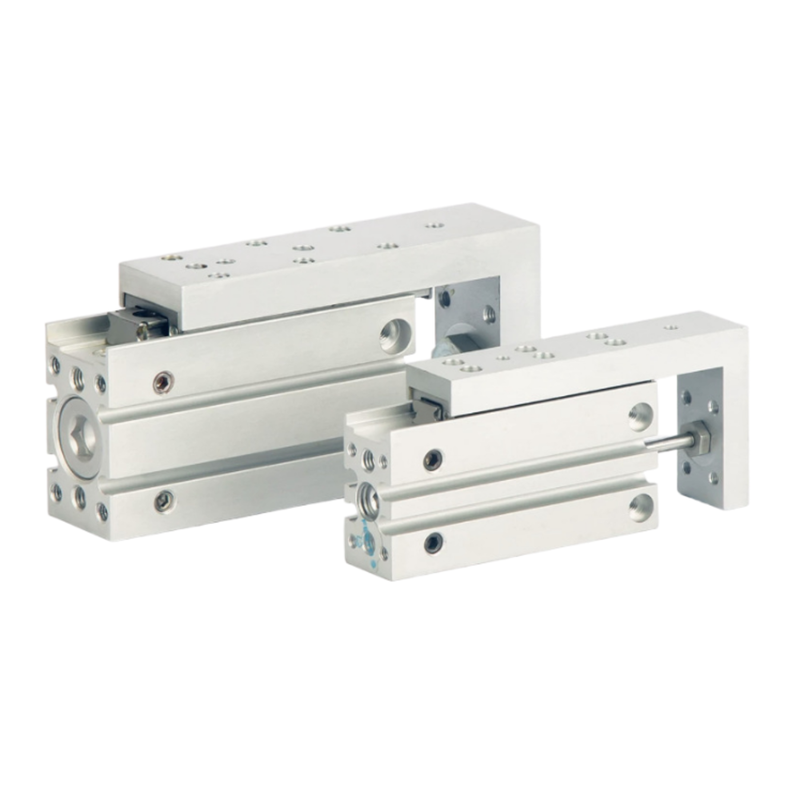

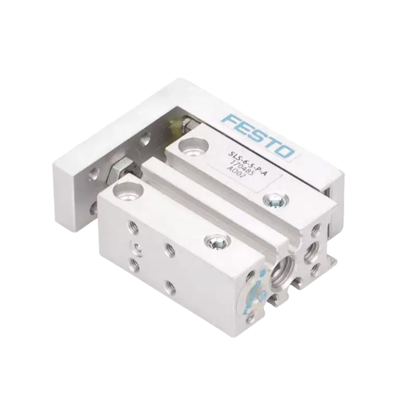

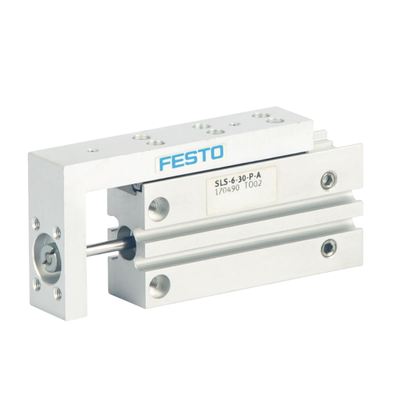

The FESTO SLS Series represents the original slim double-acting mini slide cylinders developed by Festo. This comprehensive series offers three different bore sizes: 6mm, 10mm, and 16mm. Users can choose from a variety of stroke lengths ranging from 5mm up to 30mm, allowing for versatile application possibilities.
Each cylinder is built with an integrated ball cage precision linear guide, ensuring smooth and accurate linear movement. Additionally, both ends feature built-in elastic cushioning to absorb impacts gently, enhancing durability and performance.
A key feature of the SLS Series is the integrated yoke slide that contains an embedded permanent magnet. This design supports position feedback through magnetic proximity sensors, enabling precise control and monitoring of the cylinder's position.
The cylinders boast a slim and compact design with standard M5 air ports. Furthermore, they provide three universal mounting surfaces located on the housing, slide, and yoke plate. This configuration facilitates flexible installation tailored to various automation setups.
Overall, the FESTO SLS Series is engineered as a standard pneumatic actuator for micro precision linear motion applications, particularly suited for miniature automation where space is limited.
Features:
The complete specification range includes bore sizes of 6mm, 10mm, and 16mm. Users can choose from various optional stroke lengths of 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, providing flexibility to suit different application requirements.
Featuring standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is made from aluminum alloy, while the guide shaft is constructed from stainless steel, offering excellent resistance to wear and corrosion for enhanced durability.
This product utilizes a rigid ball cage linear guide, which delivers superior resistance to side loads and torque. It achieves a repeat positioning accuracy of ±0.01mm, ensuring stable and precise motion throughout its operation.
Additionally, there is a built-in permanent magnet integrated into the yoke slide. This design is compatible with magnetic proximity switches, allowing for accurate piston position detection without the need for any extra magnet accessories.
Technical Parameters:
| Mode of operation |
Double-acting |
| Mounting position |
Any |
| Piston diameter |
6mm |
| Operating pressure |
0.15 MPa ... 1 MPa |
| Temperature |
-20 °C ... 60 °C |
| Stroke |
5mm |
Applications:
3C Electronics Automation
Our automation systems for 3C electronics cover a wide range of processes including transfer, feeding, and positioning. They are specifically designed to handle tiny components used in mobile phones and chips with high accuracy. Additionally, these systems incorporate material stopping mechanisms and micro pressing techniques to ensure precise assembly of small parts.
Semiconductor Precision Testing
We provide advanced solutions for semiconductor precision testing, featuring probe lifting and fine lens adjustments. Our modules are capable of wafer sorting and feeding micro components efficiently, enhancing the overall testing workflow and accuracy.
Medical Device Cleanroom Lines
In the medical device sector, our cleanroom production lines support micro reagent delivery and mini fixture positioning. The systems also manage sorting drives for medical consumables with high reliability, ensuring compliance with cleanroom standards.
Compact Food Packaging Equipment
Our compact food packaging equipment includes features for material separating and stopping, as well as sealing assistance. It is optimized for sorting and feeding small, lightweight parts, which contributes to efficient packaging operations.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial automation applications. For technical support, please ensure that you have the product model number and specifications ready to help us assist you promptly.
We offer comprehensive services including installation guidance, troubleshooting assistance, maintenance tips, and replacement parts consultation. Our team of experts is available to help optimize the performance of your pneumatic cylinders and address any operational issues you may encounter.
For maintenance, we recommend regular inspection of seals, rods, and mounting components to ensure long service life and prevent unexpected downtime. Proper lubrication and adherence to operating pressure limits are essential for optimal functionality.
Should you require detailed technical documentation, performance data, or custom solution advice, please refer to our online resources or contact our support team. We are committed to providing timely and effective support to meet your pneumatic cylinder needs.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder

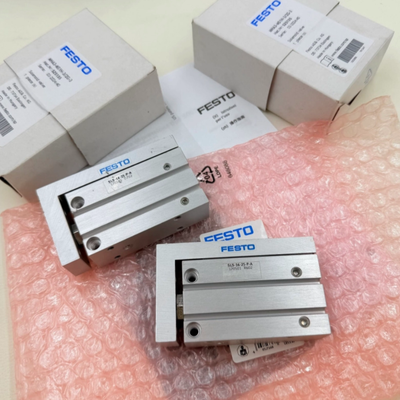

Each piston pneumatic cylinder is carefully packaged to ensure protection during transit. The cylinder is first wrapped in anti-static foam or bubble wrap to prevent any surface damage. It is then placed in a sturdy cardboard box with additional cushioning materials such as foam inserts or packing peanuts to minimize movement and absorb shocks.
For bulk orders, multiple cylinders are packed securely in larger cartons with dividers to avoid contact between individual units. All packages are clearly labeled with product details, handling instructions, and shipping information.
We offer various shipping options including standard ground shipping, expedited air freight, and international shipping to meet customer needs. Shipments are tracked from dispatch to delivery to ensure timely arrival and customer satisfaction.
Special care is taken to comply with all relevant shipping regulations and standards to guarantee safe and reliable delivery of your piston pneumatic cylinders.
