Product Description:

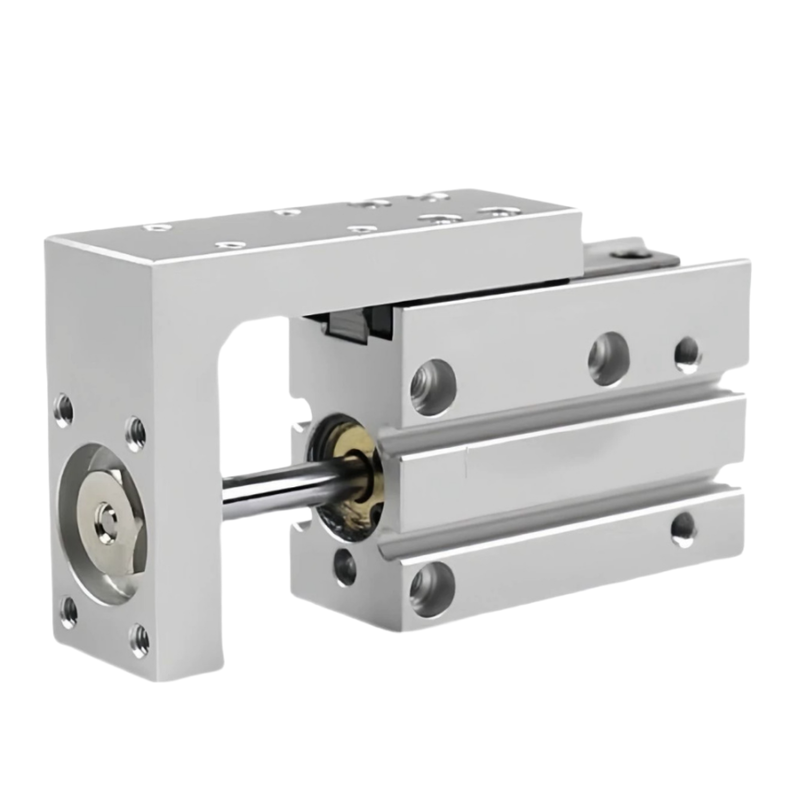

The FESTO SLS Series represents the original slim double-acting mini slide cylinders developed by Festo. This series is designed to provide precise linear motion in a compact form, making it ideal for applications where space is limited.
The lineup consists of three bore sizes: 6mm, 10mm, and 16mm. Users can choose from a variety of stroke lengths ranging from 5mm up to 30mm, allowing for flexibility in different automation scenarios.
Each cylinder features an integrated ball cage precision linear guide, enhancing smooth and accurate movement. Additionally, both ends are equipped with built-in elastic cushioning to ensure gentle stops and reduce impact during operation.
The integrated yoke slide contains an embedded permanent magnet, enabling position feedback through magnetic proximity sensors. This setup supports precise control and monitoring of the cylinder's position.
The SLS Series has a slim and compact design with standard M5 air ports. It offers three universal mounting surfaces, including the housing, slide, and yoke plate, allowing for versatile installation options.
Overall, the FESTO SLS Series is tailored for micro precision linear motion tasks in miniature automation systems, serving as reliable standard pneumatic actuators in confined spaces.
Features:
The complete specification range includes bore sizes of 6mm, 10mm, and 16mm, with optional stroke lengths of 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm. This variety allows for flexible selection to meet different application requirements.
Equipped with standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is made from durable aluminum alloy, while the guide shaft is crafted from stainless steel, providing excellent resistance to wear and corrosion.
The product features a rigid ball cage linear guide that offers outstanding resistance against side loads and torque. It achieves a high repeat positioning accuracy of ±0.01mm, ensuring stable and precise motion during operation.
Additionally, there is a built-in permanent magnet located on the yoke slide. This magnet is compatible with magnetic proximity switches, allowing for accurate detection of the piston position without the need for any extra magnet accessories.
Technical Parameters:
| Mode of operation |
Double-acting |
| Operating pressure |
0.15 MPa ... 1 MPa |
| Piston diameter |
6mm |
| Mounting position |
Any |
| Stroke |
5mm |
| Temperature |
-20 °C ... 60 °C |
Applications:
3C Electronics Automation
Our 3C electronics automation solutions cover a wide range of processes such as transfer, feeding, positioning, material stopping, and micro pressing. These technologies are specifically designed to handle tiny components found in mobile phones and chips, ensuring precision and efficiency throughout the production line.
Semiconductor Precision Testing
We offer advanced modules tailored for semiconductor precision testing. This includes probe lifting mechanisms, fine lens adjustments, wafer sorting systems, and micro component feeding units. Each component is engineered to maintain accuracy and reliability in highly sensitive testing environments.
Medical Device Cleanroom Lines
Our cleanroom automation solutions for medical devices focus on micro reagent delivery, mini fixture positioning, and medical consumable sorting drives. These systems are designed to comply with the strict cleanliness and precision standards required in medical manufacturing processes.
Compact Food Packaging Equipment
In the food packaging sector, we provide compact equipment that facilitates material separation and stopping, sealing assistance, as well as sorting and feeding of lightweight small parts. These features help streamline packaging operations while maintaining product integrity.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a variety of industrial automation applications. For technical support, please ensure you have the model number, specifications, and details of your application ready to help us provide accurate assistance.
We offer comprehensive services including installation guidance, troubleshooting, maintenance tips, and repair support to maximize the lifespan and efficiency of your pneumatic cylinders. Our technical team is equipped to assist with any operational issues, customization requests, and compatibility inquiries.
For optimal performance, regular inspection and maintenance of the piston pneumatic cylinders are recommended. This includes checking for air leaks, lubrication of moving parts, and ensuring the cylinder is operating within the specified pressure and temperature ranges.
Replacement parts and accessories are available to support your maintenance needs. We also provide detailed user manuals and technical documentation to assist with proper installation and operation.
Our commitment is to ensure your pneumatic cylinder operates smoothly and reliably, contributing to the success of your automation systems.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam or bubble wrap to prevent any surface damage. It is then placed in a sturdy, custom-fitted cardboard box that minimizes movement inside the package. For added safety, the box is sealed with reinforced tape and labeled with handling instructions such as “Fragile” and “Handle with Care.” Multiple units are packed in larger cartons with adequate cushioning material to avoid impacts and vibrations.
Shipping: We offer reliable shipping options to deliver your Piston Pneumatic Cylinder promptly and securely. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking information provided. Shipping methods include standard ground, expedited, and express delivery, depending on your location and urgency. For international shipments, all necessary customs documentation is prepared to ensure smooth clearance. We also provide insurance options to cover the shipment against loss or damage during transit.
