Product Description:

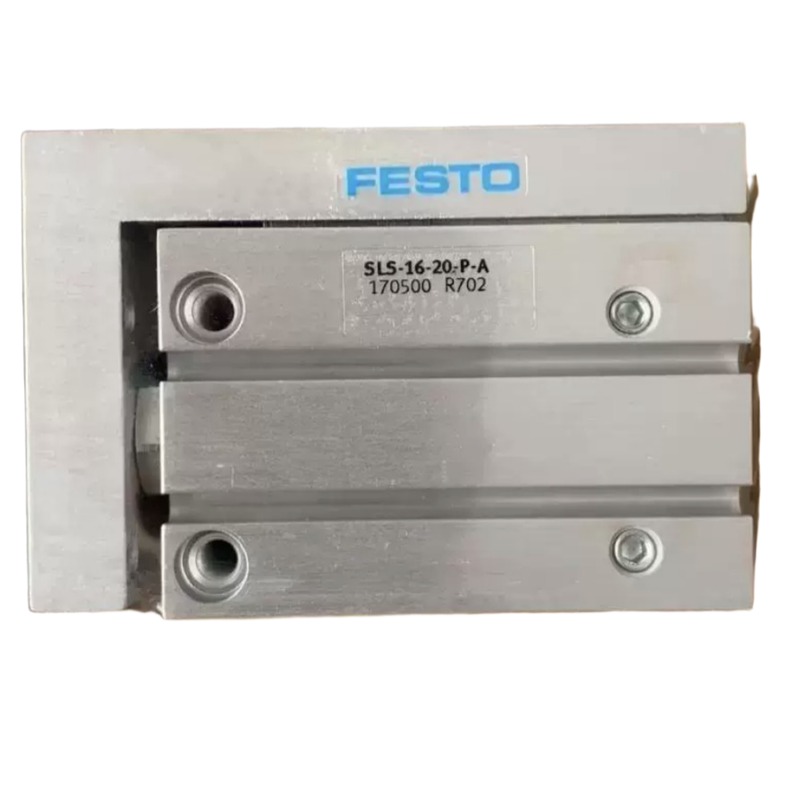

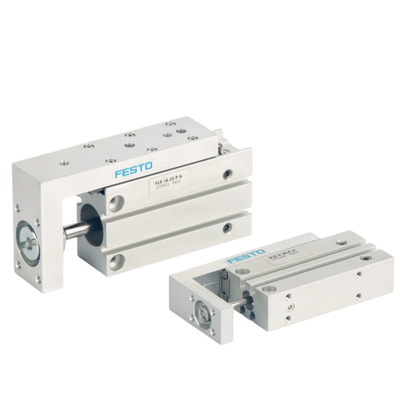

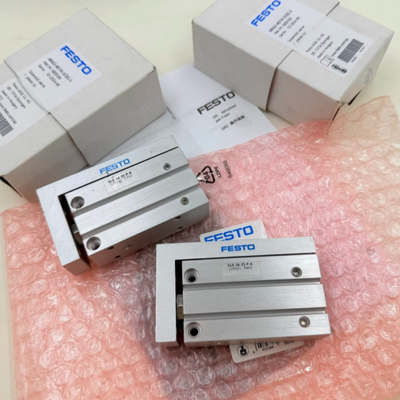

The FESTO SLS Series represents the original slim double-acting mini slide cylinders offered by Festo. This series encompasses three different bore sizes: 6mm, 10mm, and 16mm. Users can select from a range of stroke lengths varying between 5mm and 30mm to best suit their application requirements.
These cylinders feature an integrated ball cage precision linear guide, ensuring smooth and accurate motion. Additionally, they include built-in elastic end cushioning on both ends, which helps to absorb impact and extend the service life of the cylinder.
The integrated yoke slide is equipped with an embedded permanent magnet, enabling seamless position feedback when paired with magnetic proximity sensors. This feature is particularly useful for precise monitoring and control in automated systems.
Designed with a slim and compact profile, the SLS Series includes standard M5 air ports and offers three universal mounting surfaces located on the housing, slide, and yoke plate. These design elements allow for versatile installation options in various setups.
Overall, the FESTO SLS Series serves as a reliable choice for micro precision linear motion in applications where space is limited. It is widely used as a standard pneumatic actuator in miniature automation settings, ensuring high performance in compact environments.
Features:
The product offers a comprehensive specification range, featuring bore sizes of 6mm, 10mm, and 16mm. Additionally, it provides optional stroke lengths of 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, allowing for flexible selection to suit various application requirements.
Equipped with standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is made from aluminum alloy, paired with a stainless steel guide shaft, which together deliver excellent wear resistance and corrosion protection for enhanced durability.
The device incorporates a rigid ball cage linear guide that offers outstanding resistance to side loads and torque. This feature contributes to a highly stable motion with a repeat positioning accuracy of ±0.01mm, making it ideal for precision operations.
Moreover, the yoke slide is integrated with a permanent magnet, making it compatible with magnetic proximity switches. This integration enables precise piston position detection without the need for additional magnet accessories, enhancing convenience and reliability.
Technical Parameters:
| Mode of operation |
Double-acting |
| Stroke |
5mm |
| Temperature |
-20 °C ... 60 °C |
| Mounting position |
Any |
| Piston diameter |
6mm |
| Operating pressure |
0.15 MPa ... 1 MPa |
Applications:
In the realm of 3C electronics automation, advanced processes such as transfer, feeding, and precise positioning are utilized to handle tiny components found in mobile phones and chips. These operations also include material stopping and micro pressing, ensuring accuracy and efficiency in the assembly of miniature electronic parts.
The field of semiconductor precision testing involves sophisticated techniques like probe lifting and fine lens adjustments. Additionally, wafer sorting and micro component feeding modules play a critical role in maintaining high standards of precision and quality control within semiconductor manufacturing.
Medical device cleanroom production lines rely on specialized mechanisms to deliver micro reagents accurately and position mini fixtures with great precision. These lines also incorporate drives designed for sorting medical consumables, contributing to sterile and efficient assembly processes.
Compact food packaging equipment is engineered to handle delicate tasks such as material separation and stopping at designated points. It supports sealing operations and facilitates the sorting and feeding of lightweight small parts, optimizing packaging workflows in the food industry.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.
If you encounter any issues with the piston pneumatic cylinder, ensure that the cylinder is installed correctly and that all connections are secure. Regular maintenance, including checking for air leaks and lubrication of moving parts, will help extend the product's lifespan.
We offer comprehensive services including troubleshooting assistance, repair, and replacement parts to keep your pneumatic systems running smoothly. Our technical support team is equipped to help diagnose problems and provide solutions tailored to your specific application needs.
For optimal performance, always use the piston pneumatic cylinder within the specified pressure and temperature ranges as outlined in the product specifications. Avoid exposure to corrosive environments unless the product variant is rated for such conditions.
Additional resources such as FAQs, product datasheets, and instructional videos are available to help you maximize the use of your piston pneumatic cylinder.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent scratches and dust accumulation. It is then securely placed in a custom-fitted foam insert within a sturdy corrugated cardboard box to absorb shocks and vibrations.
For added safety, multiple layers of packaging material are used depending on the cylinder size and weight. All packaging complies with international shipping standards to guarantee product integrity.
Shipping is carried out through reliable courier services with tracking options available. We offer standard and expedited shipping methods to meet customer requirements. Each package is clearly labeled with handling instructions and product information to facilitate smooth delivery.
Upon receipt, customers are advised to inspect the package for any signs of damage and report immediately if any issues are found. Our packaging and shipping process is designed to deliver your Piston Pneumatic Cylinder in perfect condition, ready for installation and use.
