Product Description:

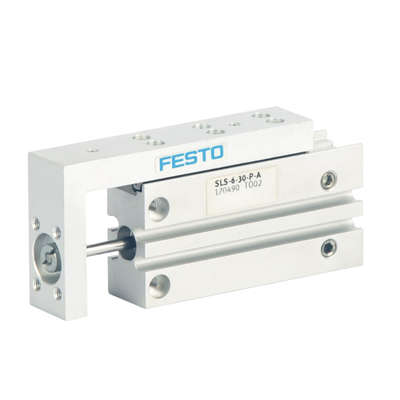

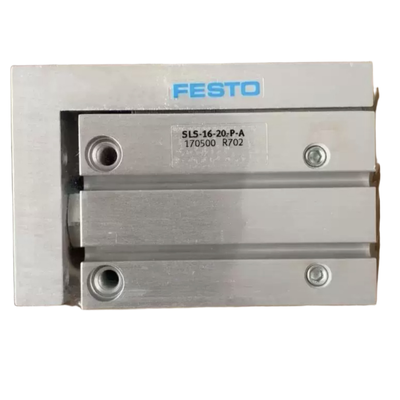

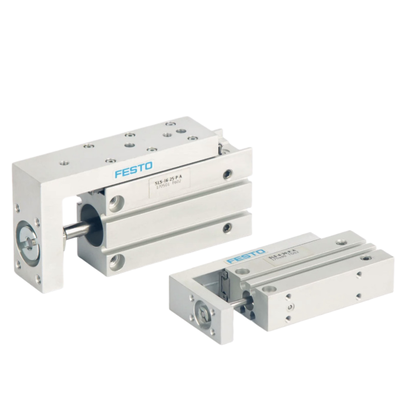

The FESTO SLS Series consists of original slim double-acting mini slide cylinders manufactured by Festo. This series offers three different bore sizes: 6mm, 10mm, and 16mm. Users can select stroke lengths ranging from 5mm up to 30mm to meet various application needs.
These cylinders feature an integrated ball cage precision linear guide that ensures smooth and accurate motion. Additionally, they are equipped with built-in elastic end cushioning on both ends, which helps to reduce impact and extend the service life of the cylinder.
The integrated yoke slide includes an embedded permanent magnet, enabling precise position feedback when used with magnetic proximity sensors. This design allows for reliable monitoring and control within automation systems.
With a slim and compact profile, the SLS Series is designed to fit into tight spaces. Standard M5 air ports facilitate easy connection, and three universal mounting surfaces — on the housing, slide, and yoke plate — provide versatile installation options. These cylinders are ideal for micro precision linear motion applications in miniature automation environments, serving as standard pneumatic actuators.
Features:
The product offers a comprehensive range of specifications, featuring bore sizes of 6mm, 10mm, and 16mm. Users can choose from multiple stroke options including 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, allowing for flexible configuration to meet various application needs.
Equipped with standard M5 threaded air ports, the design enables a neat and organized tubing setup. The housing is constructed from durable aluminum alloy, paired with a stainless steel guide shaft that provides excellent resistance to wear and corrosion, ensuring long-lasting performance.
The linear guide incorporates a rigid ball cage design, which offers superior resistance to side loads and torque. This results in highly stable motion with a repeat positioning accuracy of ±0.01mm, making it ideal for precision applications.
Additionally, a built-in permanent magnet is integrated into the yoke slide. This feature is compatible with magnetic proximity switches, enabling precise detection of the piston position without the need for extra magnet accessories, thus simplifying installation and improving reliability.
Technical Parameters:
|
Piston Diameter
|
6mm
|
|
Mounting Position
|
Any
|
|
Stroke
|
5mm
|
|
Operating Pressure
|
0.15 MPa ... 1 MPa
|
|
Mode of Operation
|
Double-acting
|
|
Temperature
|
-20 °C ... 60 °C
|
Applications:
3C Electronics Automation
Our automation solutions for 3C electronics include efficient processes such as transfer, feeding, and precise positioning. We also specialize in material stopping and micro pressing techniques tailored for tiny components found in mobile phones and chips.
Semiconductor Precision Testing
We provide high-precision testing equipment for the semiconductor industry. This includes probe lifting mechanisms, fine lens adjustments, wafer sorting systems, and specialized feeding modules designed for handling micro components with utmost accuracy.
Medical Device Cleanroom Lines
Our cleanroom line solutions for medical devices focus on precision and cleanliness. We offer micro reagent delivery systems, mini fixture positioning technology, and sorting drives designed specifically for medical consumables to ensure safe and accurate production processes.
Compact Food Packaging Equipment
In the food packaging sector, our compact equipment facilitates efficient material separation and stopping. We also provide assistance for sealing processes and lightweight sorting and feeding of small parts, optimizing packaging line performance.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial applications. For optimal operation, ensure proper installation according to the provided specifications and use clean, dry compressed air within the recommended pressure range. Regular maintenance includes periodic inspection of seals and rods for wear, lubrication of moving parts as needed, and checking for any air leaks to maintain efficiency.
If you experience any issues with the piston pneumatic cylinder, consult the troubleshooting section in the product manual for guidance on common problems such as air leakage, reduced stroke, or inconsistent movement. Replacement parts and repair kits are available to extend the service life of your cylinder.
For advanced support, technical documentation, and service options, please refer to our online resources or authorized service centers. Our technical support team is committed to providing timely assistance to ensure your pneumatic systems operate smoothly and effectively.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure it arrives in perfect condition. The cylinder is first wrapped with protective foam or bubble wrap to prevent any scratches or damage during transit. It is then placed inside a sturdy cardboard box that is appropriately sized to minimize movement within the box.
For added protection, the box is filled with cushioning materials such as air pillows or packing peanuts. The packaging is sealed securely with industrial-grade tape and labeled clearly with product details and handling instructions.
We offer multiple shipping options to accommodate your delivery needs, including standard ground shipping, expedited shipping, and express courier services. All shipments are tracked and insured to provide peace of mind.
Bulk orders are packed in larger cartons or crates, with additional internal supports to prevent shifting and damage during transportation. We also comply with all applicable shipping regulations to ensure safe and timely delivery.
If you have special packaging or shipping requirements, please contact our customer service team to discuss customized solutions.
