Product Description:

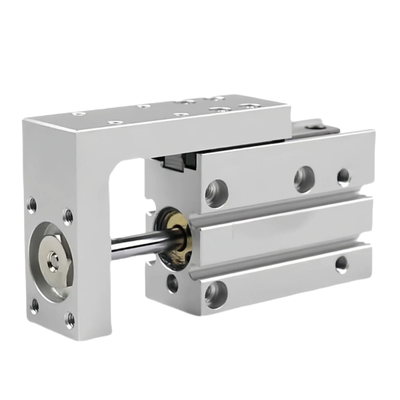

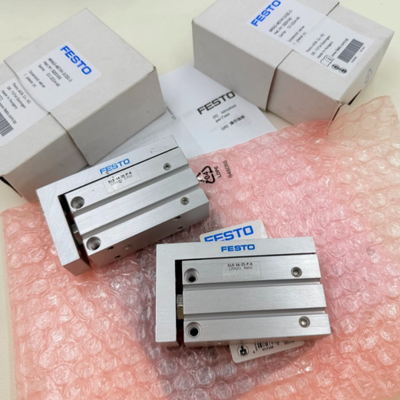

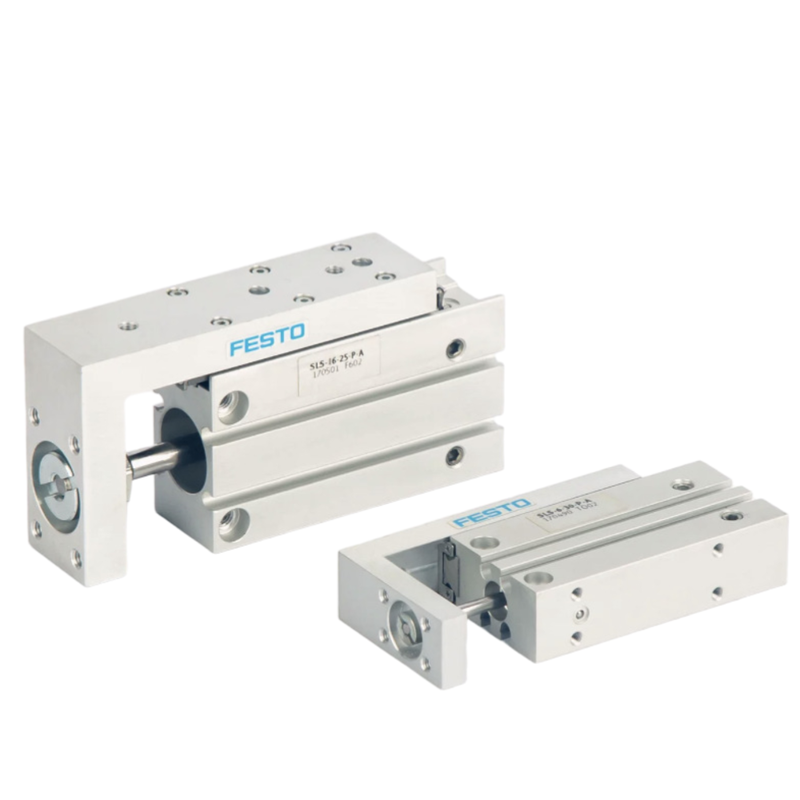

The FESTO SLS Series represents the original slim double-acting mini slide cylinders produced by Festo. This comprehensive series offers three bore size options: 6mm, 10mm, and 16mm, allowing users to select strokes ranging from 5mm up to 30mm to suit various application needs.
Each cylinder is designed with an integrated ball cage precision linear guide, ensuring smooth and accurate motion. Additionally, both ends feature built-in elastic cushioning to absorb impact and enhance durability. The integrated yoke slide houses a permanently embedded magnet, which enables reliable position feedback when used with magnetic proximity sensors.
With its slim and compact design, the SLS Series is equipped with standard M5 air ports and provides three universal mounting surfaces, including the housing, slide, and yoke plate. These features make it ideal for delivering micro-precision linear motion in miniature automation systems, especially where space is limited and standard pneumatic actuators are required.
Features:
The complete specification range includes bore sizes of 6mm, 10mm, and 16mm. There are multiple optional stroke lengths available, such as 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm, providing flexible options to suit various application needs.
This product features standard M5 threaded air ports, which help maintain a neat and organized tubing layout. Its construction consists of an aluminum alloy housing combined with a stainless steel guide shaft, ensuring excellent wear resistance and protection against corrosion.
Equipped with a rigid ball cage linear guide, it offers outstanding resistance to side loads and torque. The system achieves a repeat positioning accuracy of ±0.01mm, guaranteeing stable and precise motion during operation.
Additionally, a built-in permanent magnet is integrated into the yoke slide. This design is compatible with magnetic proximity switches, allowing for accurate piston position detection without the need for additional magnet accessories.
Technical Parameters:
| Stroke |
5mm |
| Temperature |
-20 °C ... 60 °C |
| Mode of operation |
Double-acting |
| Piston diameter |
6mm |
| Operating pressure |
0.15 MPa ... 1 MPa |
| Mounting position |
Any |
Applications:
In the realm of 3C electronics automation, various processes such as transfer, feeding, and precise positioning are essential. This includes specialized functions like material stopping and micro pressing, specifically designed for tiny components used in mobile phones and chips. These automated solutions ensure high efficiency and accuracy in handling delicate electronic parts.
Semiconductor precision testing involves intricate operations including probe lifting and fine adjustment of lenses. Additionally, wafer sorting and micro component feeding modules play a critical role in maintaining the quality and performance standards required in semiconductor manufacturing. These technologies contribute to meticulous inspection and assembly processes.
In the medical device industry, cleanroom production lines utilize micro reagent delivery systems along with mini fixture positioning to ensure precision in manufacturing. Moreover, sorting drives for medical consumables are incorporated to optimize workflow and maintain stringent hygiene standards. These advancements support high-quality medical device production.
Compact food packaging equipment is designed to handle tasks such as material separation and stopping, aiding in the sealing process. It also supports lightweight small part sorting and feeding operations, streamlining the packaging line. These automated features enhance productivity while ensuring careful handling of food products.
