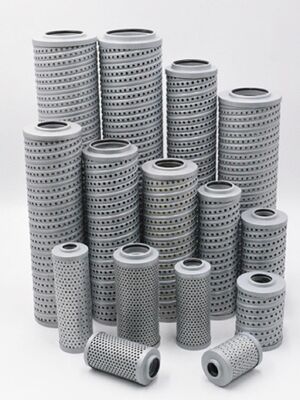

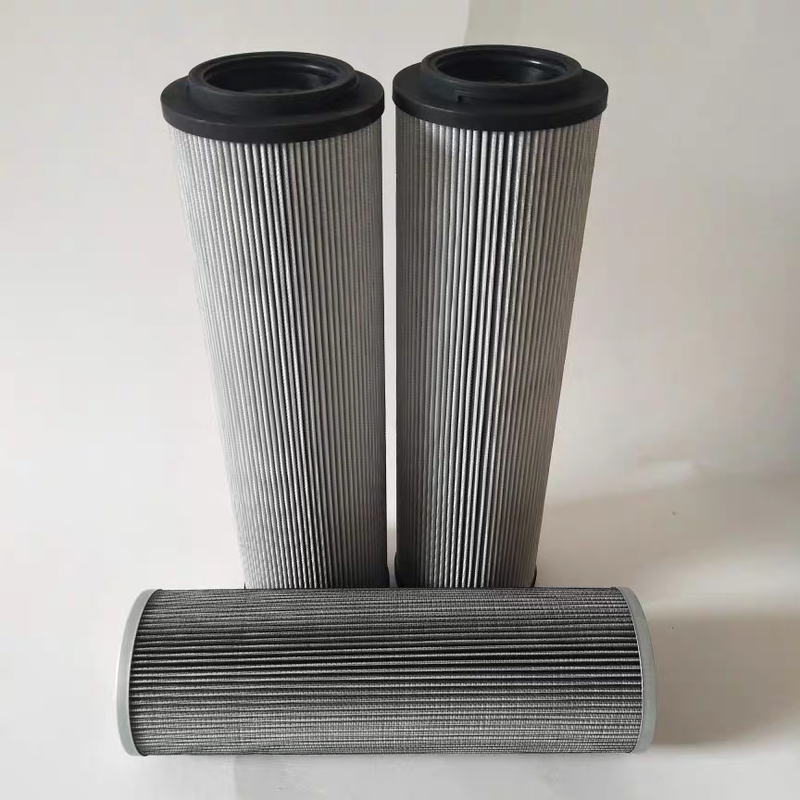

MP Jade Hydraulic Filter Cartridge CU250250V CU2101A10ANP01 CU2102M90ANP01 CU2103A25ANP01 CU2101A06AH filter element

Basic Information 基础信息

• Product Name: Hydraulic Filter Cartridge
• Brand: MP FILTRI (Jade Series)
• Part Numbers: CU250250V, CU2101A10ANP01, CU2102M90ANP01, CU2103A25ANP01, CU2101A06AH
• Alternative Name: Oil Filter Insert, Line Filter Element, Return Filter Cartridge
• Replacement: 1:1 interchangeable with original MP FILTRI filter housingBAMA FILTR...

Filter Media & Material 材质参数

1. Filter Material Code Explanation(型号字母含义)

• A: Multilayer gradient glass fiber
• M: Stainless steel woven wire mesh
• V: Reusable metal mesh (washable)
• P: Cellulose filter paperMade-in-Ch...

2. Main Structure

• Filter Media: High-efficiency micro glass fiber / stainless steel mesh / cellulose paper
• Inner & Outer Cage: Galvanized carbon steel
• End Caps: Carbon steel with anti-corrosion coating
• Sealing O-ring: NBR nitrile rubber; optional Viton fluororubber
• Flow Direction: Outside to inside

Technical Parameters 技术参数(分型号)

1. CU250250V

• Filtration Precision: 250μm
• Media: Stainless steel mesh, cleanable & reusable
• Collapse Pressure: 16 bar
• Application: Coarse pre-filtration

2. CU2101A06AH

• Filtration Rating: 6μm absolute
• Media: High dirt-holding glass fiber
• Beta Value ≥ 200, ISO16889 standard
• Max differential pressure: 210 bar

3. CU2101A10ANP01

• Filtration Precision: 10μm
• Media: Composite glass fiber
• Structure: Pleated deep filtration
• Pressure resistance: Medium & high pressure hydraulic systemBAMA FILTR...

4. CU2102M90ANP01

• Filtration Precision: 90μm
• Media: Multi-layer stainless steel wire mesh
• Feature: Low flow resistance, repeated cleaning

5. CU2103A25ANP01

• Filtration Precision: 25μm
• Media: Gradient glass fiber
• For return line and lubrication system filtration

General Working Conditions 通用工况

• Working Medium: Hydraulic oil, lube oil, gear oil, phosphate fluid, water-glycol emulsionmp-filtri....
• Operating Temperature: -30℃ ~ +110℃
• Max Working Pressure: 210 bar (21MPa)
• Test Standard: ISO16889, ISO2941, ISO2942 filter integrity testXinxiang L...

Product Features 产品优势

1. Pleated deep filter structure, large filtration area and high dirt holding capacity
2. High pressure resistance, anti-deformation under high differential pressure
3. Stable filtration efficiency, effectively remove solid particles and wear debris
4. Strict dimensional consistency, direct installation without modification
5. Two types: disposable glass fiber & reusable metal mesh

Application Industries 适用行业

Trade Attributes 外贸供货属性

• Origin: China
• MOQ: 1 piece for sample
• Customization: Non-standard size and material available
• Packing: Independent carton packaging
• HS Code: 8421999090BAMA FILTR...
