Product Description:
1. Basic Information

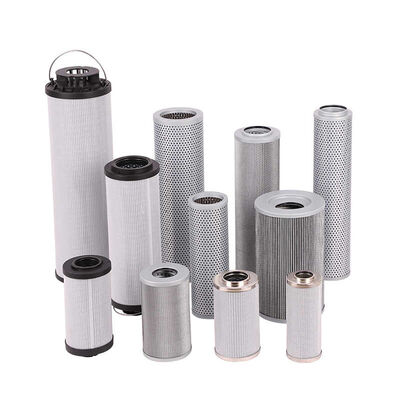

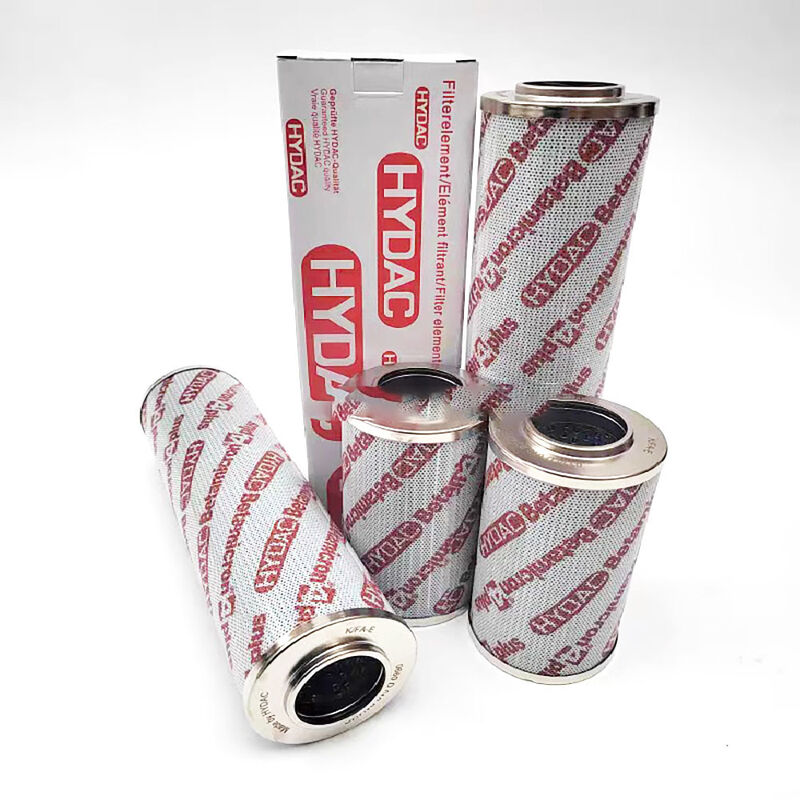

The product is identified as a Hydraulic Filter Element, which serves as an alternative brand replacement for HYDAC filters. It is available in various item series including 0030D, 0060D, 0110D, 0240D, 0330D, 0660D, 1300R, and 2600R. Common alternative names for this product include Oil Filter Cartridge, Filter Insert, and Filter Cartridge.
2. Material Composition
The filter media used in these elements comprises micro glass fiber, stainless steel wire mesh, and paper filter material. The inner and outer support cages are made from carbon steel that is galvanized, as well as stainless steel types SS304 and SS316. End covers are manufactured from carbon steel, aluminum alloy, or stainless steel, while the protective screens utilize multi-layer metal mesh for enhanced durability.
3. Technical Specifications
These hydraulic filter elements offer filtration precision options of 1μm, 3μm, 5μm, 10μm, 20μm, and 25μm. They are designed to work efficiently with hydraulic oil, lubricating oil, turbine oil, and gear oil. The maximum working pressures supported include 21MPa, 32MPa, and 42MPa, with allowable pressure differentials of 1.0MPa, 1.6MPa, and 2.0MPa. The filters operate effectively within temperatures ranging from -25℃ to +120℃ and maintain a filter rating of Beta≥200 according to the ISO16889 standard.
4. Structure and Installation
This product is available in types such as fold filter elements and wound filter cartridges. Mounting options include pressure line filters, return line filters, and suction filters. Product series include the D series for high-pressure applications, the R series for return filters, and the ON series for low-pressure filters. Key features encompass anti-static properties, high dirt-holding capacity, resistance to deformation, and strong pressure tolerance.
5. Application Industries
The hydraulic filter elements find application across various industries including power plants, steel mills, metallurgy, construction machinery, injection molding machines, ships, mining equipment, machine tool hydraulic stations, wind power equipment, and lubrication systems.
6. Trade Attributes
Originating from China, these filter elements ensure quality with a 1:1 interchangeability with original HYDAC products. They accommodate small order quantities and are packaged in independent cartons to guarantee safe delivery.
Technical Parameters:
| Working Medium |
Hydraulic Oil, Lubricating Oil, Gear Oil, Turbine Oil, EH Oil |
| Executive Standard |
ISO16889 |
| Brand |
1700R005ON/-KB-B6
1700R010ON/-KB-B6
1700R020ON/-KB-B6
1700R003ON/-KB-B6
|
| Precision |
1μm, 3μm, 5μm, 10μm, 20μm |
| Item Series Temperature Range |
-25℃ ~ +120℃ |
| Allowable Pressure Differential |
1.0MPa, 1.6MPa, 2.0MPa |
Applications:
The HYDAC filter element is an essential component widely used in various hydraulic systems to ensure optimal performance and longevity. Renowned for its high precision filtration capabilities ranging from 1μm to 20μm, the HYDAC hydraulic filter element effectively removes contaminants from hydraulic oil, lubricating oil, gear oil, turbine oil, and EH oil. This filtration is critical in protecting sensitive hydraulic components from wear and tear, thus reducing downtime and maintenance costs.
These filter elements, certified with CE and designed according to the ISO16889 executive standard, are suitable for a wide range of working conditions with allowable pressure differentials of 1.0MPa, 1.6MPa, and 2.0MPa. Available in multiple brand specifications such as 0030D003BN4HC, 0110D010BH4HC, 0240D, 0330D, 0660D, 1300R, and 2600R, they cater to diverse industry needs. The direct interchange HYDAC spare filter feature makes replacement and maintenance straightforward, ensuring compatibility and reliable performance without the need for extensive system modifications.
These hydraulic filter elements are commonly used in industrial machinery, mobile hydraulics, construction equipment, and manufacturing plants where hydraulic systems play a crucial role. The product’s supply ability of 5000 pieces per month, coupled with flexible packaging options including cartons or customized packaging as per client requirements, ensures timely delivery within 1-7 workdays after payment. Payment terms are versatile, supporting T/T, Western Union, and PayPal, making procurement convenient for global customers.
In scenarios where precision and reliability are paramount, such as in aerospace hydraulic systems, heavy-duty mining equipment, and automated production lines, the HYDAC hydraulic filter element proves indispensable. Its high filtration efficiency protects pumps, valves, and actuators from contamination-induced failures, enhancing system reliability. Additionally, in maintenance and repair operations, using direct interchange HYDAC spare filters simplifies inventory management and reduces downtime.
Overall, the HYDAC filter element is ideal for applications requiring stringent filtration standards and robust performance. Whether for new installations or replacement parts, its precision, durability, and compliance with international standards make it a trusted choice for hydraulic filtration needs worldwide. Customers can negotiate pricing and place orders starting from a minimum quantity of one unit, ensuring flexibility for projects of all scales.
Packing and Shipping:
Product Packaging and Shipping for Hydraulic Filter Element
Each hydraulic filter element is carefully packaged to ensure protection against damage during transit. The filter elements are individually wrapped in protective plastic sleeves to prevent contamination and moisture exposure. They are then placed in sturdy, custom-designed cardboard boxes that provide cushioning and support.
For bulk orders, multiple filter elements are securely packed in reinforced cartons with appropriate padding materials such as foam inserts or bubble wrap to minimize movement and impact.
All packages are clearly labeled with product details, handling instructions, and shipping information to facilitate smooth logistics and delivery.
Shipping options include air freight, sea freight, and express courier services depending on the destination and urgency. We ensure timely dispatch and reliable delivery through trusted carriers to meet our customers' requirements.
Special care is taken to comply with international shipping regulations and standards to guarantee the hydraulic filter elements arrive in optimal condition and ready for use.
