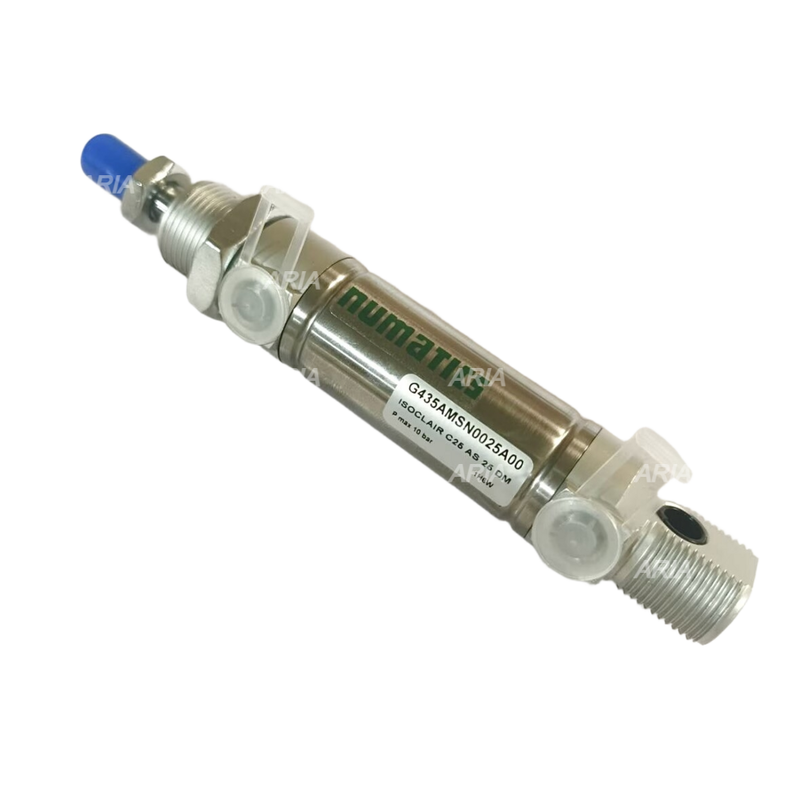

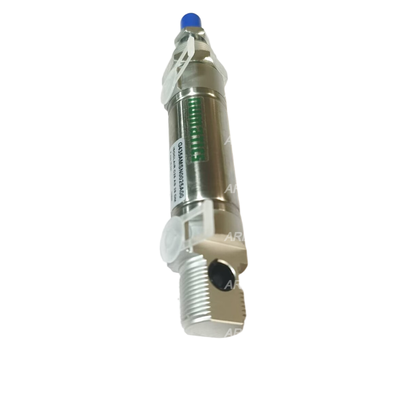

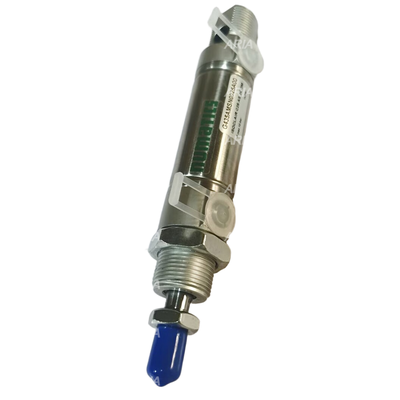

G435AKSN40CSH G435AGSN160A00 G435AJSN160A00 ASCO Double Acting Piston Pneumatic Cylinder

Product Description:

The cylinder tube is made from stainless steel seamless tubing, featuring mirror polishing that ensures it is both rust-resistant and dust-proof. The piston rod is constructed from high carbon steel and is treated with hard chrome plating, enhancing its wear resistance. Both end caps are crafted from hard anodized aluminum alloy, combining durability with lightweight properties.

The piston utilizes high-strength engineering plastic equipped with a wear-resistant sliding ring for long-lasting performance. The sealing parts consist of NBR nitrile rubber composite seals along with a PU dust wiper, specifically designed to prevent dust intrusion, making it ideal for cement workshop environments. Additionally, the guide bushing is a self-lubricating copper alloy bushing which offers low friction during operation.

• Working Medium: Filtered compressed air (available in both lubricated and non-lubricated versions)
• Working Pressure Range: 0.5 to 10 bar (0.05 to 1.0 MPa)
• Maximum Allowable Pressure: 10 bar
• Operating Temperature: -10°C to +60°C
• Piston Speed: 50 to 800 mm/s
• Cushion: Fixed rubber buffers located at both ends
• Magnetic Switch: Built-in magnetic ring compatible with ASCO proximity sensors
• Port Thread: G1/8"
• Mounting Type: Options include front nose mount, rear clevis mount, or bracket mount

The cylinder body is made entirely of stainless steel, providing excellent resistance against dust, particularly in environments dealing with cement powder. It integrates a thickened dust wiper which effectively blocks cement ash from entering, substantially extending the service life of the cylinder.

The self-lubricating guide sleeve ensures smooth reciprocating motion with a low failure rate. Conforming to the ISO6432 standard installation dimensions, this cylinder is fully interchangeable on a 1:1 basis with the original ASCO NNS cylinder. Its compact size makes it well-suited for applications with limited installation space, such as dust removal equipment.

Furthermore, the cylinder boasts stable sealing performance, preventing any air leakage even under frequent and long-term reciprocation cycles.

This cylinder is widely used across various industries including cement plants, aggregate plants, dust removal systems, packaging machinery, metallurgy auxiliary equipment, and small valve actuators within the mining sector.

Technical Parameters:

Applications:

The ASCO Solenoid Valve, part of the reputable ASCO Numatics NNS Series, is an ideal solution for a wide range of industrial and commercial applications. Designed with a double acting single rod action type and conforming to the ISO 6432 international standard, this valve offers reliable performance in various operating environments. Its dust resistant air cylinder and dust-proof air cylinder features make it particularly suitable for harsh and dusty conditions, ensuring long-lasting durability and minimal maintenance.

This industrial pneumatic actuator cylinder is widely used in automation systems, manufacturing lines, and process control where precision and efficiency are paramount. For instance, in packaging industries, the ASCO Solenoid Valve controls the movement of machinery components with accuracy, even in dusty factory environments. Additionally, it is highly effective in pneumatic conveying systems, where dust and particles are common, thanks to its dust resistant air cylinder design.

The valve’s operating temperature range of -10℃ to +60℃ allows it to function smoothly in diverse climatic conditions, making it versatile for both indoor and outdoor applications. Its compact design adhering to ISO 6432 standards ensures easy integration with existing pneumatic systems, enhancing operational efficiency without requiring significant modifications.

With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, ASCO ensures that customers can obtain this high-quality solenoid valve promptly. The delivery time ranges from 1 to 7 workdays after payment, making it a reliable choice for urgent projects. Moreover, payment terms such as T/T, Western Union, and PayPal offer flexibility to clients worldwide.

Packaging is tailored to client requirements, typically shipped in sturdy cartons to protect the product during transit. The ASCO Solenoid Valve is CE certified, underscoring its compliance with European safety and quality standards. Price is negotiable, allowing clients to benefit from competitive deals without compromising on quality.

In summary, the ASCO Numatics NNS Series solenoid valve is a robust, efficient, and adaptable industrial pneumatic actuator cylinder. Its dust-proof air cylinder characteristic makes it perfect for dusty environments, while its certification and adherence to international standards provide assurance of quality and reliability in various application occasions and scenarios.

Packing and Shipping:

Each ASCO Solenoid Valve is carefully packaged to ensure protection during transit. The valve is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent movement and damage.

The packaging includes a detailed product manual and warranty information for user reference. All components are inspected and tested before packaging to guarantee quality and performance.

For shipping, ASCO Solenoid Valves are handled with care and shipped via reliable carriers to ensure timely delivery. Tracking information is provided to customers to monitor the shipment status.

Special packaging options are available upon request for bulk orders or international shipping to meet specific requirements.
