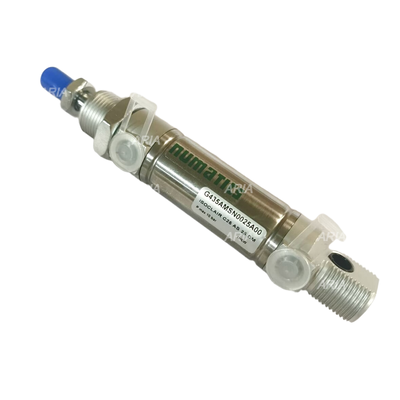

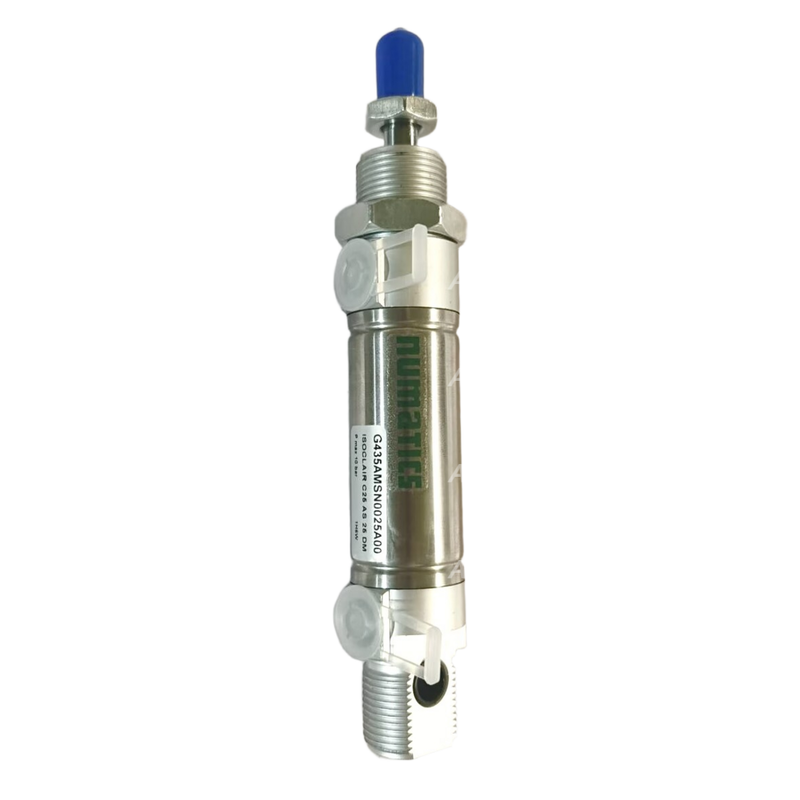

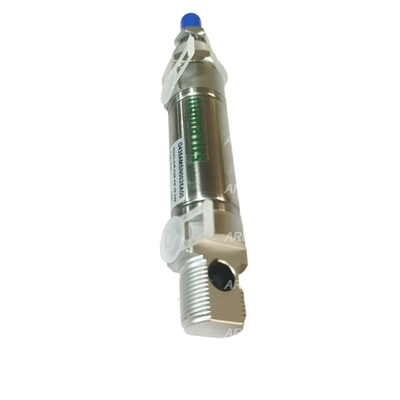

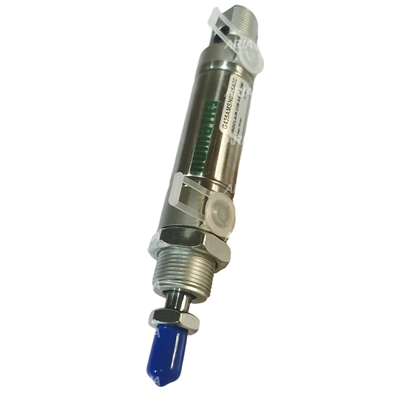

Product Description:
Material Components
The cylinder tube is constructed from stainless steel seamless tubing, finished with mirror polishing to provide excellent resistance against rust and dust. The piston rod uses high carbon steel with a hard chrome plating, ensuring it is wear-resistant for extended durability.
End caps are made from hard anodized aluminum alloy, contributing to the overall strength and corrosion resistance of the assembly. The piston itself is crafted from high strength engineering plastic, equipped with a wear-resistant sliding ring to enhance longevity and smooth operation.
For sealing, the unit employs NBR nitrile rubber composite seals alongside PU dust wipers, specifically designed to prevent dust ingress in demanding environments such as cement workshops. Additionally, the guide bushing features a self-lubricating copper alloy that offers low friction and smooth guidance for reciprocating movement.
Core Technical Parameters
- Working Medium: Filtered compressed air (both lubricated and non-lubricated options available)
- Working Pressure Range: 0.5 to 10 bar (0.05 to 1.0 MPa)
- Maximum Allowable Pressure: 10 bar
- Operating Temperature: -10°C to +60°C
- Piston Speed: 50 to 800 mm/s
- Cushion: Fixed rubber buffers located at both ends
- Magnetic Switch: Built-in magnetic ring compatible with ASCO proximity sensors
- Port Thread: G1/8"
- Mounting Type: Front nose mount, rear clevis mount, with bracket mount available as an option
Product Features
This cylinder features a full stainless steel body, providing excellent resistance to dust accumulation, especially suitable for cement powder environments. An integrated thickened dust wiper effectively blocks cement ash from entering the internal components, which significantly extends the product’s service life.
The self-lubricating guide sleeve ensures smooth reciprocating motion with a low failure rate, optimizing reliable performance. Its design complies with the ISO6432 standard installation dimensions, making it fully interchangeable on a 1:1 basis with the original ASCO NNS cylinder.
With a compact and small size, it fits well in narrow installation spaces such as those found in dust removal equipment. The cylinder also maintains stable sealing performance, preventing air leakage even under long-term and frequent reciprocating operation.
Application Industries
This product is widely used in various industrial sectors including cement plants, aggregate plants, dust removal systems, and packaging machinery. It also serves as auxiliary equipment in metallurgy and as small valve actuators in mining operations.
Technical Parameters:
| Product Name |
ISO6432 Mini Round Pneumatic Cylinder |
| Brand |
ASCO Numatics |
| Series |
NNS Series |
| Action Type |
Double Acting Single Rod |
| Operating Temperature |
-10℃ ~ +60℃ |
| Standard |
ISO 6432 International Standard |
Applications:
The ASCO Solenoid Valve, specifically the ASCO Numatics ISO6432 Mini Round Pneumatic Cylinder from the NNS Series, is designed to meet diverse industrial needs with outstanding reliability and performance. As an industrial pneumatic actuator cylinder, it is widely used in automation systems requiring precise and efficient motion control. Its double acting single rod action type makes it ideal for applications where controlled bidirectional movement is essential.
In manufacturing environments, the ASCO tie rod cylinder plays a crucial role in assembly lines, packaging machinery, and robotic arms. Its compact design compliant with the ISO 6432 international standard ensures compatibility with various equipment and systems. This makes it an excellent choice for industries such as automotive, electronics, food and beverage, where space constraints and high performance are critical factors.
The ASCO Numatics air cylinder is also well-suited for laboratory automation, material handling equipment, and pneumatic tooling. Its CE certification guarantees adherence to stringent safety and quality standards, providing peace of mind for users in regulated industries. The product’s supply ability of 5000 pieces per month ensures that large-scale projects can be supported without delay.
For businesses requiring flexible purchasing options, ASCO offers a minimum order quantity of just one unit with pricing available through negotiation, making it accessible for both small-scale and large-scale operations. Packaging is customizable, shipped in cartons or as per client requirements, ensuring safe delivery. With a delivery time of 1-7 work days after payment and multiple payment terms including T/T, Western Union, and PayPal, the procurement process is streamlined and convenient.
Overall, the ASCO tie rod cylinder and the broader ASCO Solenoid Valve product line provide versatile solutions for any pneumatic automation challenge. Whether for heavy-duty industrial applications or delicate automation tasks, the ASCO Numatics air cylinder delivers dependable performance, ease of integration, and compliance with international standards, making it a preferred choice in the pneumatic actuator market.
Packing and Shipping:
The ASCO Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a custom-fitted box with protective cushioning materials to prevent damage during transit. The packaging is designed to provide maximum protection against moisture, dust, and impact.
For shipping, the ASCO Solenoid Valve is shipped using reliable carriers with tracking options available. We offer various shipping methods to accommodate your delivery needs, including standard, expedited, and international shipping. Each shipment is carefully handled and inspected before dispatch to guarantee quality and customer satisfaction.
