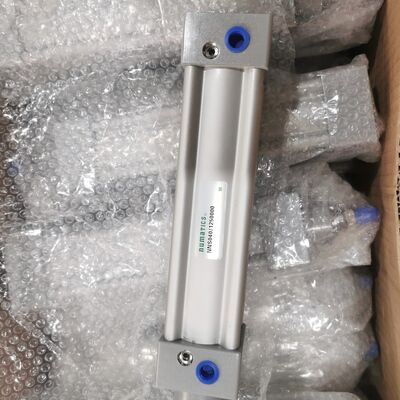

NNS040/01250000 Numatics Double ASCO Acting Cylinders Single Rod End Types

Product Description:

Cylinder Tube: Crafted from seamless stainless steel with a mirror-polished finish, the tube offers excellent resistance against rust and dust.

Piston Rod: Made of high carbon steel and coated with hard chrome plating, ensuring superior wear resistance.

End Caps: Manufactured from hard anodized aluminum alloy for enhanced durability.

Piston: Constructed using high strength engineering plastic, equipped with a wear-resistant sliding ring for smooth operation.

Sealing Parts: Utilize NBR nitrile rubber composite seals paired with PU dust wipers to provide effective dust protection, especially suited for cement workshop environments.

Guide Bushing: Features self-lubricating copper alloy bushings that minimize friction for efficient movement.

• Working Medium: Filtered compressed air, available in both lubricated and non-lubricated versions.
• Working Pressure Range: 0.5 to 10 bar (0.05 to 1.0 MPa).
• Maximum Allowable Pressure: 10 bar.
• Operating Temperature: From -10°C to +60°C.
• Piston Speed: Between 50 and 800 mm per second.
• Cushion: Includes fixed rubber buffers located at both ends of the cylinder.
• Magnetic Switch: Equipped with a built-in magnetic ring compatible with ASCO proximity sensors.
• Port Thread: G1/8".
• Mounting Type: Options include front nose mount, rear clevis mount, or bracket mount.

The cylinder body is made entirely from stainless steel, providing excellent resistance to dust, particularly suitable for environments with cement powder. An integrated and thickened dust wiper effectively prevents cement ash from entering, thereby extending the service life of the product.

The self-lubricating guide sleeve ensures smooth and reliable reciprocating movement, which contributes to a low failure rate. With standard ISO6432 installation dimensions, this cylinder is designed for a 1:1 interchangeability with the original ASCO NNS cylinder.

Its compact and small size makes it ideal for applications with limited installation space, such as dust removal equipment. Additionally, stable sealing ensures no air leakage even under frequent and long-term reciprocating operations.

This cylinder is well-suited for various industries including cement plants, aggregate processing plants, dust removal systems, packaging machinery, auxiliary equipment in metallurgy, and mining small valve actuators.

Technical Parameters:

Applications:

The ASCO ISO6432 Mini Round Pneumatic Cylinder, part of the NNS Series, is an expertly engineered double acting single rod air cylinder designed to meet international ISO 6432 standards. With a robust operating temperature range of -10℃ to +60℃, this dust-proof air cylinder is perfectly suited for a wide array of industrial applications where reliability and efficiency are paramount.

One of the primary application occasions for the ASCO solenoid valve and its corresponding pneumatic cylinder is in aggregate plants. The aggregate plant air cylinder plays a critical role in the automation of material handling, sorting, and processing equipment. Its dust-proof design ensures optimal performance even in harsh environments where dust and debris are prevalent, thereby preventing contamination and extending the service life of the machinery.

In addition to aggregate plants, the ASCO dust-proof air cylinder is widely used in manufacturing lines, packaging machinery, and assembly automation systems. Its compliance with the ISO 6432 international standard guarantees seamless integration into existing pneumatic systems, allowing for precision control and smooth operation. The compact mini round design is ideal for applications requiring space-saving solutions without compromising on power or durability.

The product's CE certification underscores its adherence to stringent quality and safety requirements, making it a trusted choice for industries that demand high performance and reliability. With a supply ability of 5000 pieces per month and flexible packaging details available according to client requirements, ASCO ensures timely and customized delivery. The minimum order quantity is just one unit, and pricing is open for negotiation, facilitating easy procurement for both small-scale and large-scale operations.

Moreover, the ASCO ISO6432 Mini Round Pneumatic Cylinder offers convenient payment terms including T/T, Western Union, and PayPal, and delivery is assured within 1-7 workdays after payment. This makes it an ideal solution for businesses needing quick turnaround and dependable pneumatic components. Whether it's enhancing the efficiency of an aggregate plant air cylinder system or integrating into various industrial automation setups, the ASCO dust-proof air cylinder stands out as a versatile and reliable component.

Packing and Shipping:

Each ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent any movement or damage.

All packaging materials are selected to provide cushioning and resistance against impacts, moisture, and dust, preserving the integrity of the product.

For shipping, ASCO Solenoid Valves are dispatched via reliable carriers with tracking options to ensure timely and safe delivery. Each shipment includes proper labeling with handling instructions and product information to facilitate smooth processing through logistics.

Bulk orders are palletized and shrink-wrapped to maintain stability and protection during transport. Special shipping requirements can be accommodated upon request to meet specific customer needs.
