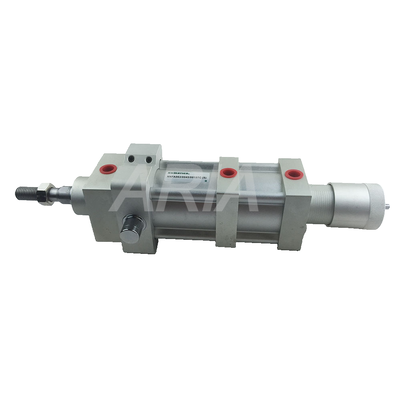

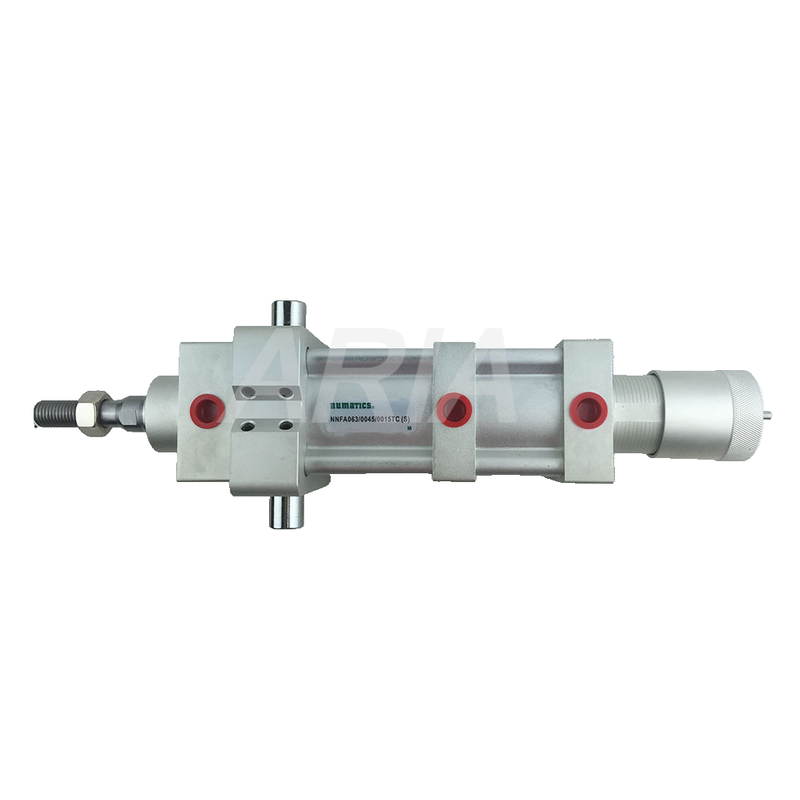

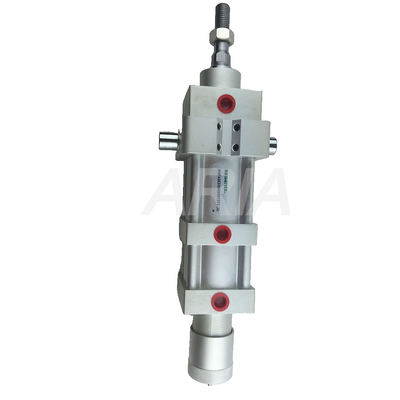

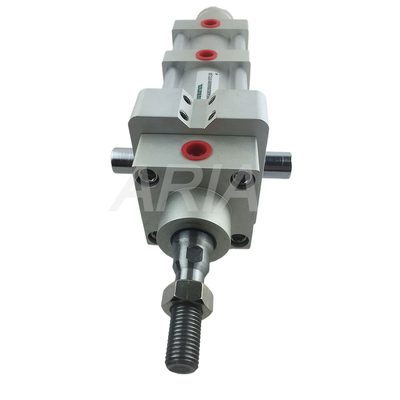

NNFA063/0060/0045TC(S). Cement plant cylinder Standard ISO 6432 International Standard Dust-proof air cylinder designed

Product Description:

Cylinder Tube: Constructed from seamless stainless steel tubing, finished with mirror polishing to provide excellent resistance against rust and dust.

Piston Rod: Made of high carbon steel featuring hard chrome plating to enhance wear resistance.

End Caps: Fabricated from hard anodized aluminum alloy for durability.

Piston: Designed with high-strength engineering plastic combined with a wear-resistant sliding ring to ensure longevity.

Sealing Parts: Utilizes NBR nitrile rubber composite seals along with PU dust wipers, specifically designed to prevent dust infiltration in cement workshop environments.

Guide Bushing: Equipped with self-lubricating copper alloy bushings that provide low friction and smooth operation.

• Working Medium: Filtered compressed air (available in both lubricated and non-lubricated forms).
• Working Pressure Range: 0.5 to 10 bar (0.05 to 1.0 MPa).
• Maximum Allowable Pressure: 10 bar.
• Operating Temperature: From -10°C up to +60°C.
• Piston Speed: Ranges between 50 and 800 mm/s.
• Cushioning: Fixed rubber buffers installed at both ends for impact absorption.
• Magnetic Switch: Integrated magnetic ring compatible with ASCO proximity sensors.
• Port Thread: G1/8".
• Mounting Types: Options include front nose mount, rear clevis mount, and bracket mount.

The cylinder body is constructed entirely from stainless steel, ensuring outstanding dust resistance particularly suited for environments with cement powder.

An integrated, thickened dust wiper effectively prevents cement ash from entering, thereby extending the service life of the component.

Self-lubricating guide sleeves enable smooth reciprocating motion with a low failure rate.

The product adheres to the ISO 6432 standard installation dimensions, offering a 1:1 interchangeability with the original ASCO NNS cylinder.

Its compact size makes it ideal for use in tight spaces commonly found in dust removal equipment.

Sealing is stable and reliable, preventing air leakage even under conditions of frequent long-term reciprocation.

This cylinder is widely used across various industries such as cement plants, aggregate plants, dust removal systems, packaging machinery, metallurgy auxiliary equipment, and mining valve actuators.

Technical Parameters:

Applications:

The ASCO Solenoid Valve, branded under ASCO Numatics, is a highly reliable component designed to operate seamlessly within various industrial applications. Certified with CE standards, this product guarantees quality and safety, making it an ideal choice for industries requiring precise control of pneumatic systems. With a minimum order quantity of just one unit and pricing available through negotiation, it offers flexibility for both small-scale and large-scale operations. The packaging is customizable, provided in cartons or according to client specifications, ensuring safe and efficient delivery. Customers can expect prompt shipment within 1-7 work days after payment, supported by multiple payment terms including T/T, Western Union, and Paypal. The supply ability of 5000 pieces per month ensures consistent availability to meet industrial demands.

Specifically designed as an ISO6432 Mini Round Pneumatic Cylinder, this ASCO solenoid valve features the NNS Series standard and adheres to the ISO 6432 International Standard. It operates efficiently within a temperature range of -10℃ to +60℃, making it suitable for various environmental conditions. One of the key applications of this product is as a dust-proof air cylinder, which is essential in environments where particulate matter could otherwise compromise the performance and longevity of pneumatic equipment. Its dust-proof design ensures reliable operation even in challenging industrial conditions.

In terms of application occasions, the ASCO Solenoid Valve excels as an industrial pneumatic actuator cylinder in automated manufacturing lines, packaging machinery, and assembly systems where precise, repeatable motion control is critical. It is widely used in industries such as automotive manufacturing, electronics assembly, food and beverage processing, and pharmaceutical production. The product’s robust construction and compliance with international standards make it an indispensable component for controlling airflow in pneumatic systems, enhancing efficiency and productivity.

Moreover, the ASCO Solenoid Valve serves as an industrial pneumatic actuator cylinder in scenarios requiring rapid cycling and high durability. Its ability to maintain consistent performance under varying temperatures and dust-laden environments makes it ideal for outdoor installations and harsh industrial settings. Whether used in conveyor systems, robotic arms, or material handling equipment, this valve ensures smooth and reliable pneumatic actuation.

In summary, the ASCO Solenoid Valve is perfectly suited for a wide range of industrial pneumatic applications, particularly where dust-proof air cylinders and high-performance industrial pneumatic actuator cylinders are required. Its CE certification, customizable packaging, and flexible payment options, coupled with a reliable supply chain, make it a practical and efficient choice for engineers and procurement specialists seeking dependable pneumatic components.

Packing and Shipping:

The ASCO Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a protective plastic bag and cushioned within a sturdy cardboard box to prevent damage during transit. Additional packing materials such as foam inserts or bubble wrap are used for extra protection, depending on the valve size and model.

For shipping, ASCO Solenoid Valves are dispatched using reliable courier services that offer tracking and insurance options. We ensure timely delivery by selecting the most efficient shipping method based on the destination. All packages are labeled clearly with handling instructions and product information to facilitate smooth customs clearance and safe handling.

Customers receive a shipment confirmation along with tracking details once their order has been dispatched. We recommend inspecting the package upon receipt and reporting any damages immediately to ensure prompt resolution.
