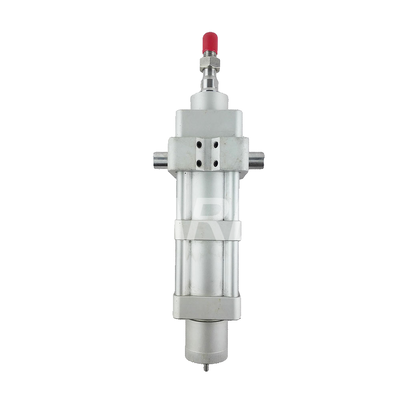

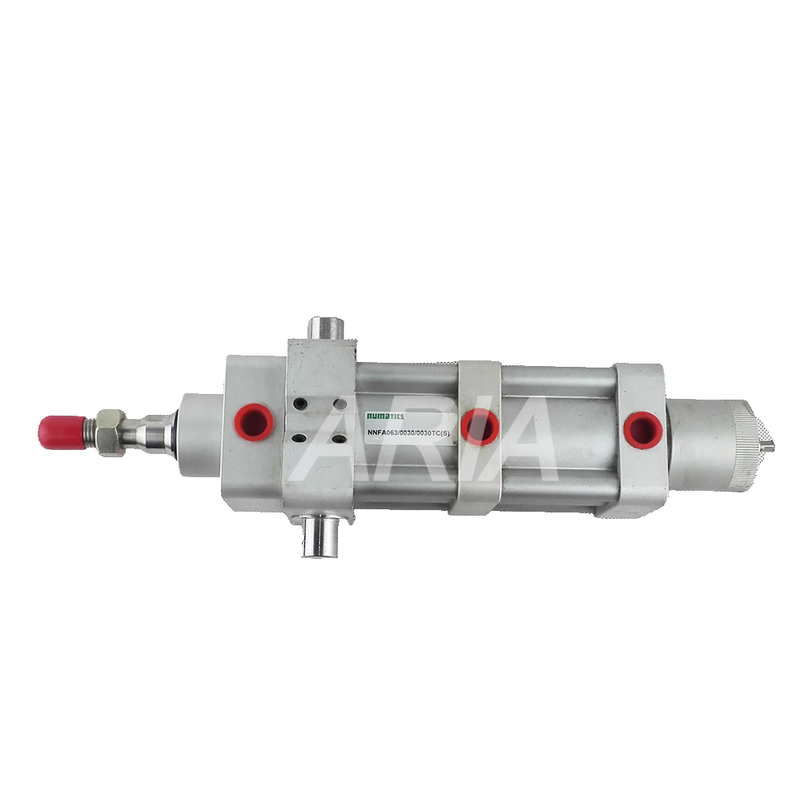

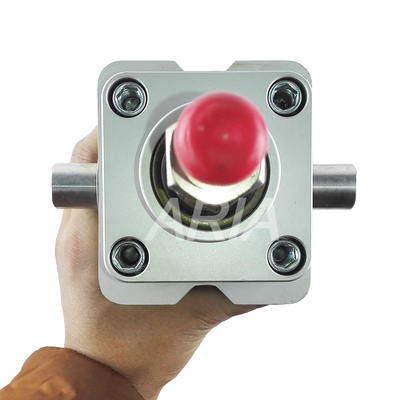

NNFA063/0050/0010TC(S) ISO 6432 International Standard ASCO Solenoid Valve NNS Series Double Acting Single Rod Ideal

Product Description:

Cylinder Tube: Crafted from seamless stainless steel, the tube features mirror polishing to ensure anti-rust and dust-proof properties.

Piston Rod: Made of high carbon steel with hard chrome plating, providing excellent wear resistance.

End Caps: Constructed from hard anodized aluminum alloy for enhanced durability.

Piston: Built with high strength engineering plastic combined with a wear-resistant sliding ring.

Sealing Parts: Equipped with NBR nitrile rubber composite seals and PU dust wipers, specifically designed to guard against dust in cement workshop environments.

Guide Bushing: Features a self-lubricating copper alloy bushing that minimizes friction.

• Working Medium: Filtered compressed air, with options for lubricated or non-lubricated types.
• Working Pressure Range: 0.5 to 10 bar (0.05 to 1.0 MPa).
• Maximum Allowable Pressure: 10 bar.
• Operating Temperature: From -10℃ up to +60℃.
• Piston Speed: Adjustable between 50 and 800 mm/s.
• Cushion: Equipped with fixed rubber buffers at both ends to absorb shocks.
• Magnetic Switch: Integrated magnetic ring compatible with ASCO proximity sensors.
• Port Thread: G1/8".
• Mounting Type: Options include front nose mount, rear clevis mount, and bracket mount.

The cylinder body is made entirely from stainless steel, providing excellent resistance to dust, especially suited for cement powder environments. It includes an integrated thickened dust wiper that effectively blocks cement ash infiltration, significantly extending the service life.

Its self-lubricating guide sleeve ensures smooth reciprocating motion with a low failure rate. The product follows the ISO6432 standard installation dimensions, making it a 1:1 interchangeable replacement for the original ASCO NNS cylinder.

With a compact and small design, the cylinder fits well in confined spaces typical of dust removal equipment. It also offers stable sealing capabilities, preventing air leakage even during long-term frequent reciprocation.

This cylinder is ideal for use in a variety of industrial sectors such as cement plants, aggregate plants, dust removal systems, packaging machinery, metallurgy auxiliary equipment, and as actuators for small valves in mining operations.

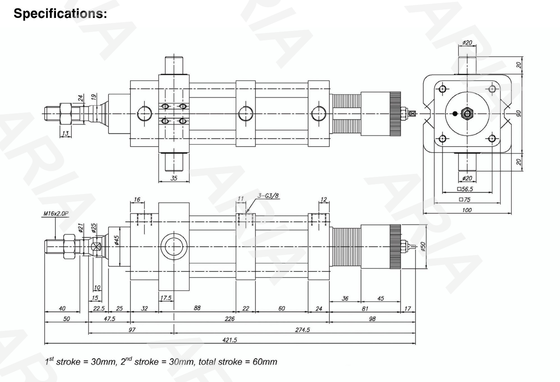

Technical Parameters:

This pneumatic cylinder is an ASCO tie rod cylinder designed for use in aggregate plant air cylinder applications, ensuring reliable performance and compliance with international standards.

Applications:

The ASCO Solenoid Valve, part of the renowned ASCO Numatics NNS Series, is engineered to deliver outstanding performance and reliability in various industrial applications. Certified with CE standards, this valve meets international quality and safety requirements, making it a trusted choice for professionals worldwide. With a minimum order quantity of just one unit, customers have the flexibility to procure the product as needed, while pricing is negotiable to accommodate different budgetary considerations. Packaging is tailored to client specifications, typically using sturdy cartons to ensure safe delivery.

One of the primary application occasions for the ASCO Solenoid Valve is in pneumatic systems that require precise control of air flow and pressure. Its double acting single rod action type and compliance with ISO 6432 international standards make it ideal for integration with ASCO tie rod cylinders, widely used in automation and machinery. The valve’s operating temperature range of -10℃ to +60℃ ensures dependable operation under a variety of environmental conditions, enhancing its versatility across industries.

The ASCO Solenoid Valve finds extensive use in cement plant pneumatic cylinder systems, where robust and reliable air control is critical for efficient production processes. Its ability to handle demanding industrial environments makes it suitable for aggregate plant air cylinder applications as well, contributing to the smooth operation of heavy-duty equipment involved in material handling and processing. The supply ability of 5000 pieces per month guarantees that large-scale projects and ongoing maintenance needs can be met without delay.

With a delivery time frame of 1-7 work days after payment and flexible payment terms including T/T, Western Union, and Paypal, ASCO ensures that customers receive their orders promptly and conveniently. Whether deployed in manufacturing lines, construction equipment, or industrial automation, the ASCO Solenoid Valve offers reliable performance, easy integration, and compliance with global standards, making it an indispensable component in modern pneumatic systems.

Packing and Shipping:

Each ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is first placed in a protective plastic bag to prevent moisture and dust contamination. It is then securely positioned within a custom-molded foam insert to minimize movement and absorb shocks.

The foam insert and valve are enclosed in a sturdy cardboard box, clearly labeled with product details and handling instructions. For bulk orders, multiple units are packed in larger cartons with additional padding to safeguard against damage.

All packages are sealed and marked with appropriate shipping labels, including fragile and orientation indicators to ensure proper handling. ASCO Solenoid Valves are shipped via reliable carriers with tracking options available to provide customers with real-time shipment updates.

Special packaging requests and international shipping options are available upon request to accommodate specific customer needs.
