Freely Adjustable Mounting Angle DNC Series Standard Cylinder DNC32-250-PPV-A 163313 Constant Output Force For Long Stroke Automated Transfer Workflow

Product Description:

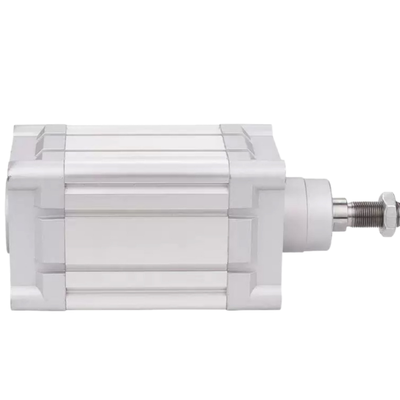

The FESTO DNC-32 standard cylinder is a well-established double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Featuring a bore size of 32mm, it provides a consistent and reliable driving force when operated under the typical working pressure of 6 bar.

This cylinder is constructed with a lightweight aluminum alloy barrel, complemented by a wear-resistant sealing design. Such features ensure durability and long service life. Additionally, it offers customizable stroke lengths ranging from 10mm up to 2000mm, allowing flexibility for various application requirements.

Equipped with PPV adjustable pneumatic cushions at both ends, the FESTO DNC-32 enables smooth and controlled motion. Its compact design allows for easy sensor installation, and the availability of numerous modular variants makes it a versatile choice. As a result, it is widely used as a universal pneumatic actuator across automated production lines worldwide.

Features:

The PPV model features dual-end adjustable pneumatic cushioning that ensures smooth stroke movement. This design effectively minimizes impact noise and significantly enhances the overall service life of the cylinder.

Installation is highly versatile, allowing for any mounting position. Whether your application requires vertical, horizontal, or inclined assembly, the PPV accommodates flexible setups with ease.

Fully compliant with the stringent ISO 15552 standards, these cylinders are interchangeable with major global standard cylinders. This compatibility facilitates convenient replacements without the need to redesign existing fixtures.

The PPV operates efficiently across a wide working pressure range of 0.06 to 1.2 MPa, maintaining stable performance even under fluctuating air pressures. Additionally, it is designed to function reliably within a temperature span from -20°C to 80°C.

Technical Parameters:

Applications:

In the realm of automated assembly lines, various tasks such as component clamping, pushing, lifting, and precise positioning are essential. These operations are critical for the efficient assembly of electronics, hardware, and automotive parts, ensuring high-quality production processes.

The medical and pharmaceutical sectors demand specialized equipment that facilitates the transfer of materials in clean environments. This includes sterile clamping techniques, with options available for PWIS/LABS-free variants to meet stringent hygiene standards.

General industrial automation encompasses a wide range of medium-load linear reciprocating motions. Common applications include punching, riveting, and the movement of testing fixtures, all of which contribute to streamlined manufacturing workflows.

Packaging machinery plays a vital role in the food, beverage, and cosmetic industries. Typical functions involve pushing cartons, sealing bags, labeling products, and both clamping and conveying bottles, all of which help maintain efficient packaging operations.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial automation applications. For technical support, please ensure you have the product model number and specifications available to facilitate prompt assistance.

We offer comprehensive services including installation guidance, maintenance tips, troubleshooting assistance, and replacement part sourcing. Our technical team is equipped to help you optimize the performance and lifespan of your pneumatic cylinder.

Common issues such as air leakage, piston sticking, or reduced cylinder speed can often be resolved through proper maintenance or adjustment, which our support staff can guide you through step-by-step.

Regular inspection and adherence to recommended operating pressures and environmental conditions will help prevent malfunctions and extend the service life of the cylinder.

For detailed documentation, including installation manuals, maintenance schedules, and troubleshooting guides, please refer to the product support section on our website.

Packing and Shipping:

The Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent movement and damage. The packaging is designed to withstand handling and environmental factors, ensuring the product arrives in perfect condition.

For shipping, we use reliable carriers with tracking options to provide timely and secure delivery. Depending on the destination, shipping methods include standard ground, expedited air, or freight services. All shipments are insured, and customers receive detailed tracking information to monitor their order from dispatch to delivery.
