Product Description:

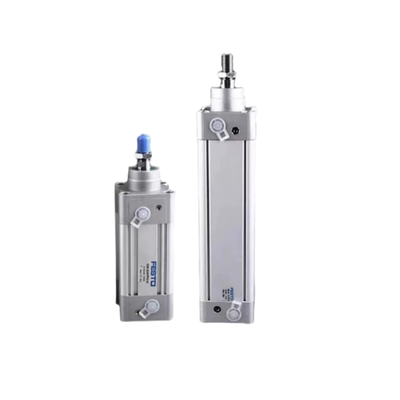

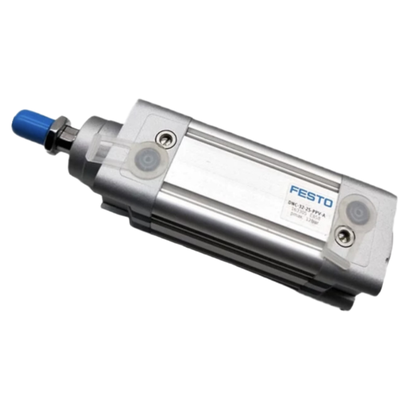

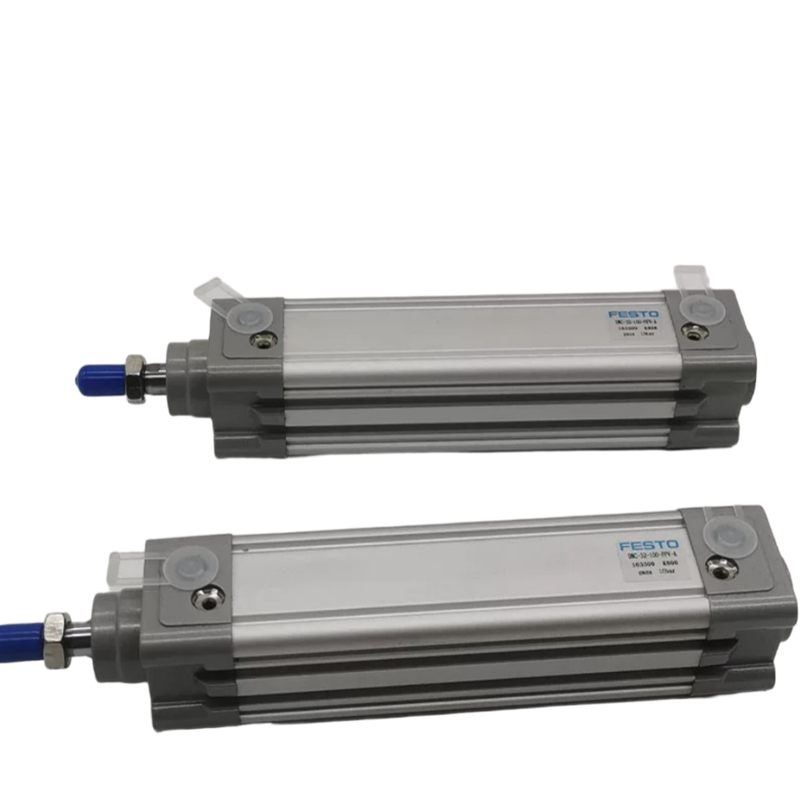

The FESTO DNC-32 standard cylinder is a classic example of a double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Designed with a bore size of 32mm, it provides a reliable and consistent driving force when operated at the standard working pressure of 6 bar.
Constructed using a lightweight aluminum alloy barrel combined with a wear-resistant sealing structure, this cylinder ensures durability and long service life. It offers customizable stroke lengths ranging from 10mm up to 2000mm, allowing it to meet diverse application requirements.
This cylinder features PPV adjustable pneumatic cushions installed at both ends, which help to absorb impact and reduce noise during operation. Its compact design facilitates easy sensor installation, and the product is available in a wide variety of modular options. Overall, the FESTO DNC-32 serves as a versatile pneumatic actuator widely used in automated production lines around the world.
Features:
The PPV cylinder features dual-end adjustable pneumatic cushioning that ensures smooth stroke movement. This design effectively minimizes impact noise and significantly extends the service life of the cylinder.
Installation is highly versatile, as the cylinder can be mounted in any position. Whether the application requires vertical, horizontal, or inclined assembly, the PPV cylinder offers flexible mounting options to suit a variety of setups.
Manufactured in strict accordance with the ISO 15552 standard, this cylinder is fully interchangeable with globally recognized standard cylinders. This compliance allows for easy replacement without the need to redesign existing fixtures, making maintenance and upgrades convenient.
Operating within a wide pressure range of 0.06 to 1.2 MPa, the PPV cylinder maintains stable performance even under fluctuating air pressure conditions. Additionally, it supports a broad working temperature range from -20℃ to 80℃, ensuring reliable operation across diverse environments.
Technical Parameters:
| Piston Diameter |
32mm |
| Mode of Operation |
Double Acting |
| Conforms to Standard |
ISO 15552 |
| Operating Pressure |
0.6 Bar ... 12 Bar |
| Temperature |
-20 °C ... 80 °C |
| Stroke |
25mm |
Applications:
Automated assembly lines utilize advanced mechanisms for various tasks such as component clamping, pushing, lifting, and precise positioning. These processes are essential in the manufacturing of electronic devices, hardware items, and automotive parts, ensuring efficiency and accuracy in assembly equipment operations.
In the medical and pharmaceutical industries, equipment demands strict cleanliness and sterility. Specialized clean-grade material transfer systems and sterile clamping solutions are employed, with optional PWIS/LABS-free variants available to meet stringent hygiene standards required in these fields.
General industrial automation encompasses a wide range of applications including punching, riveting, and movement of testing fixtures. These tasks typically involve medium-load linear reciprocating motions, which are critical for maintaining productivity and precision in various manufacturing processes.
Packaging machinery plays a vital role in the food, beverage, and cosmetic industries. Functions such as carton pushing, bag sealing, labeling, and bottle clamping and conveying are seamlessly integrated into packaging machines to enhance throughput and maintain product quality throughout the packaging process.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization to ensure maximum productivity and longevity of the cylinder.
We offer detailed product documentation, including specifications, operation manuals, and maintenance schedules to help users understand and utilize the cylinder effectively. Our technical team is equipped to assist with custom configurations and integration into existing systems.
In addition to support services, we provide repair and replacement options to minimize downtime. Routine maintenance services are recommended to maintain optimal functionality and prevent unexpected failures.
For any technical inquiries or service requests related to the Piston Pneumatic Cylinder, our support team is ready to provide expert advice and solutions tailored to your specific needs.
Packing and Shipping:

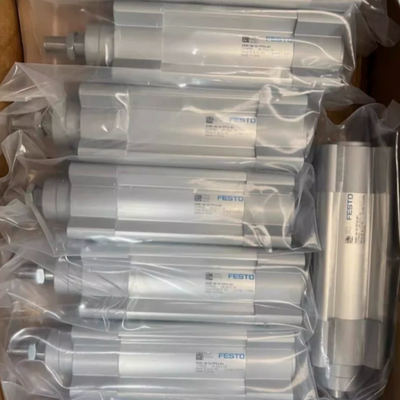

Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is wrapped in protective foam and securely placed in a custom-fitted box to prevent movement during transit. The packaging materials are designed to absorb shocks and protect against moisture and dust.
For shipping, we use reliable carriers with tracking options to provide timely and safe delivery. We offer various shipping methods to accommodate your needs, including standard, expedited, and freight services. All shipments are inspected before dispatch to guarantee product quality and completeness.
Please ensure that the shipping address is accurate to avoid delays. Upon receiving your Piston Pneumatic Cylinder, inspect the package immediately and report any damage to the carrier and our customer service team.
