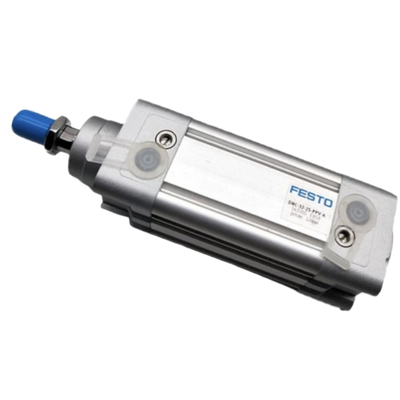

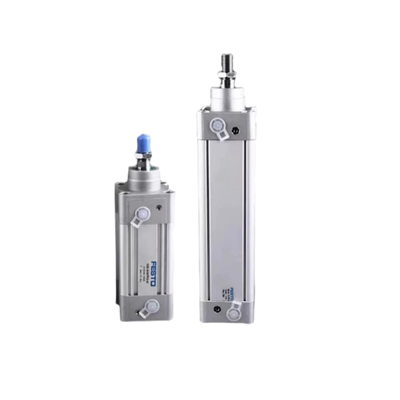

FESTO DNC32-25-PPV-A 163305 Double Acting Air Cylinder 32mm Bore 25mm Stroke With PPV Adjustable Cushion

Product Description:

The FESTO DNC-32 standard cylinder is a renowned double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Featuring a bore diameter of 32mm, it provides a consistent driving force when operated under a standard pressure of 6 bar.

Constructed with a lightweight aluminum alloy barrel and a wear-resistant sealing design, this cylinder ensures durability and long-lasting performance. It offers flexible stroke options ranging from 10mm up to 2000mm to meet various application needs.

This model is equipped with PPV adjustable pneumatic cushions at both ends, enhancing its operational smoothness. Its compact design allows for simple sensor installation, and it comes with a wide range of modular variants. As such, the FESTO DNC-32 serves as a versatile pneumatic actuator, widely used in automated production lines across the globe.

Features:

The PPV features dual-end adjustable pneumatic cushioning, ensuring a smooth stroke movement. This design effectively reduces impact noise and significantly extends the service life of the cylinder.

Installation is highly versatile, allowing for mounting in any position. Whether vertical, horizontal, or inclined, the PPV supports flexible assembly to suit various application requirements.

Manufactured in strict accordance with the ISO 15552 standard, the PPV is fully interchangeable with global mainstream standard cylinders. This compatibility facilitates easy replacement without the need for redesigning existing fixtures.

Operating across a wide pressure range of 0.06 to 1.2 MPa, the PPV maintains stable performance even under fluctuating air pressures. Additionally, it is capable of functioning reliably within a temperature range from -20℃ to 80℃.

Technical Parameters:

Applications:

Automated assembly lines require precise operations such as component clamping, pushing, lifting, and accurate positioning. These functions are essential for assembling electronic devices, hardware components, and automotive parts efficiently and reliably.

In the field of medical and pharmaceutical equipment, maintaining cleanliness and sterility is crucial. Therefore, clean-grade material transfer systems and sterile clamping solutions are employed, with optional variants that are PWIS and LABS-free to ensure safety and compliance in sensitive environments.

General industrial automation covers a wide range of applications including punching, riveting, and testing fixture movements. These processes typically involve medium-load linear reciprocating motion, which demands precise and consistent operation to maintain production quality.

Packaging machinery plays a vital role in the food, beverage, and cosmetic industries. Tasks such as carton pushing, bag sealing, labeling, as well as bottle clamping and conveying are critical for efficient packaging operations, helping to ensure product integrity and streamline the packaging process.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual for installation guidelines, operating instructions, and maintenance procedures to ensure optimal functionality.

If you encounter any issues or require troubleshooting assistance, verify all connections and ensure that the cylinder is operating within the specified pressure and temperature ranges. Regular inspection of seals and moving parts is recommended to prevent leaks and wear.

We offer comprehensive services including routine maintenance, repair, and replacement of components to extend the service life of your pneumatic cylinder. Our technical team is equipped to provide expert advice on customization and integration with your existing systems.

To maximize the performance and durability of your Piston Pneumatic Cylinder, always use compatible accessories and follow recommended lubrication schedules. Adhering to these practices will help maintain smooth operation and reduce downtime.

For detailed technical documentation, CAD files, and software updates related to the Piston Pneumatic Cylinder, please access the resources section on our official website.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent movement and damage. The packaging materials are chosen to withstand shocks, vibrations, and humidity, ensuring the product arrives in perfect condition.

For shipping, we use reliable carriers that offer tracking and insurance options. The product is labeled clearly with handling instructions and is shipped promptly to meet your delivery requirements. Whether shipping domestically or internationally, we prioritize safe and timely delivery of your Piston Pneumatic Cylinder.
