Product Description:

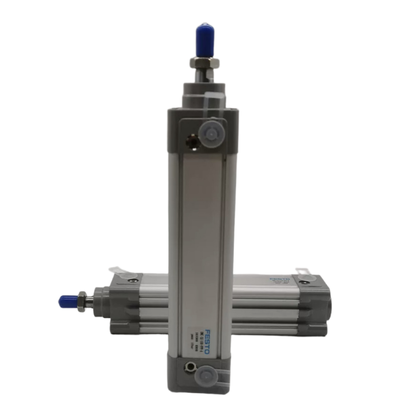

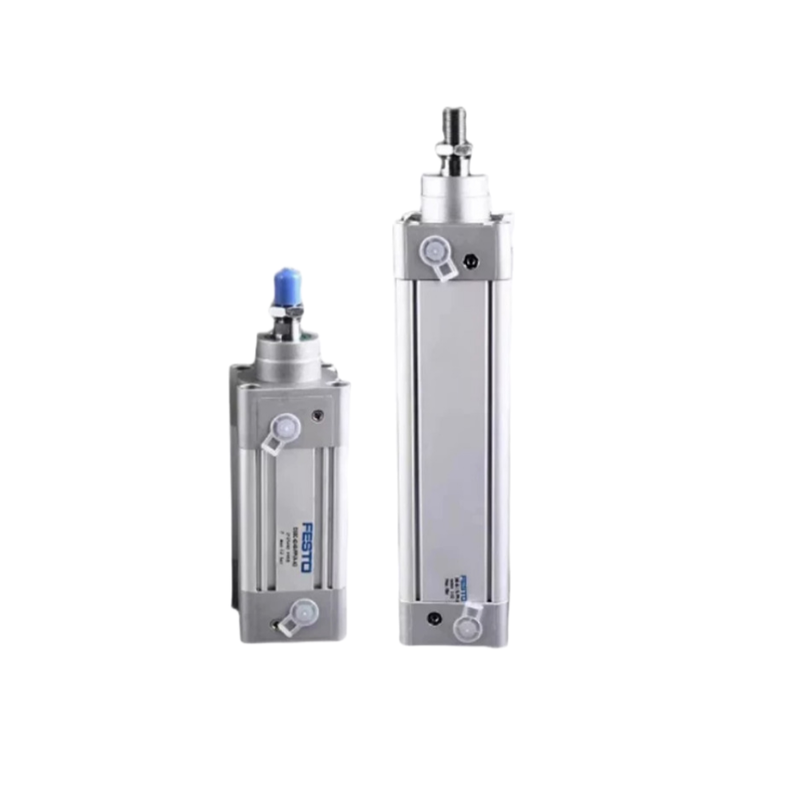

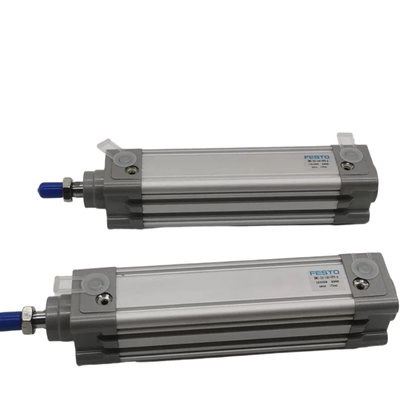

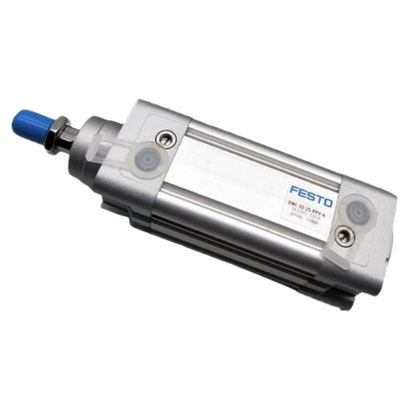

The FESTO DNC-32 standard cylinder is a traditional double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Featuring a bore size of 32mm, it provides a consistent driving force when operated under the standard pressure of 6 bar.
Constructed with a lightweight aluminum alloy barrel, the cylinder also incorporates a wear-resistant sealing design. This combination ensures durability and longevity. The stroke length is highly customizable, ranging from 10mm up to 2000mm, to accommodate various application needs.
Additionally, the cylinder is equipped with PPV adjustable pneumatic cushions at both ends, which enhance its performance by providing smooth cushioning. Its compact design facilitates easy installation of sensors, and the wide range of modular options makes this cylinder a versatile pneumatic actuator widely used in automated production lines around the world.
Features:
The PPV series features dual-end adjustable pneumatic cushioning, ensuring smooth stroke movement. This design effectively reduces impact noise and significantly extends the service life of the cylinder.
Installation is highly flexible as the cylinder supports any mounting position. It can be easily installed in vertical, horizontal, or inclined orientations to suit various assembly requirements.
Fully compliant with the strict ISO 15552 standard, the PPV cylinders are completely interchangeable with globally recognized standard cylinders. This compatibility allows for convenient replacements without the need to redesign existing fixtures.
Designed to operate within a wide working pressure range of 0.06 to 1.2 MPa, the cylinder maintains stable performance even under fluctuating air pressure conditions. Additionally, it can function reliably in temperatures ranging from -20℃ to 80℃.
Technical Parameters:
| Product |
FESTO DNC Series Cylinder, DNC 32 Bore Standard Air Cylinder |
| Temperature |
-20 °C ... 80 °C |
| Mode of Operation |
Double Acting |
| Conforms to Standard |
ISO 15552 |
| Piston Diameter |
32 mm |
| Stroke |
25 mm |
| Operating Pressure |
0.6 Bar ... 12 Bar |
Applications:
Automated Assembly Lines
Our solutions facilitate various tasks such as component clamping, pushing, lifting, and precise positioning, specifically designed for electronic devices, hardware, and automotive parts assembly equipment.
Medical and Pharmaceutical Equipment
We provide clean-grade material transfer systems along with sterile clamping options. An optional PWIS/LABS-free variant ensures compliance with strict medical and pharmaceutical standards.
General Industrial Automation
Our products are ideal for medium-load linear reciprocating motion applications such as punching, riveting, and moving testing fixtures, supporting a wide range of industrial automation needs.
Packaging Machinery
Designed for the food, beverage, and cosmetic industries, our machinery handles carton pushing, bag sealing, labeling, bottle clamping, and smooth conveying processes effectively.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual for detailed installation, operation, and maintenance instructions. Ensure all connections are secure and use the recommended air pressure levels to achieve optimal performance.
Regular maintenance is crucial to prolong the lifespan of the cylinder. This includes checking for air leaks, lubricating moving parts as specified, and inspecting seals for wear and tear. Replace any damaged components promptly to prevent operational issues.
If you encounter any technical difficulties or require assistance with troubleshooting, our support team is available to provide guidance on system integration, performance optimization, and repair procedures. We also offer services such as custom modifications, replacement parts, and field support to meet your specific application needs.
For enhanced product longevity, avoid exposure to extreme temperatures, corrosive environments, and excessive mechanical loads beyond the product specifications. Always follow safety guidelines when handling and operating the pneumatic cylinder to ensure safe and effective use.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during transit. The packaging is designed to safeguard the product from moisture, dust, and impact.
For shipping, we use reliable carriers with tracking options to guarantee timely delivery. Multiple units are securely packed on pallets with additional cushioning materials to avoid movement and shocks. We also offer customized packaging solutions upon request to meet specific requirements.
Prior to shipment, each Piston Pneumatic Cylinder undergoes a thorough quality inspection to confirm functionality and compliance with specifications. Our commitment to quality packaging and shipping ensures that you receive your product safely and ready for immediate use.
