Product Description:

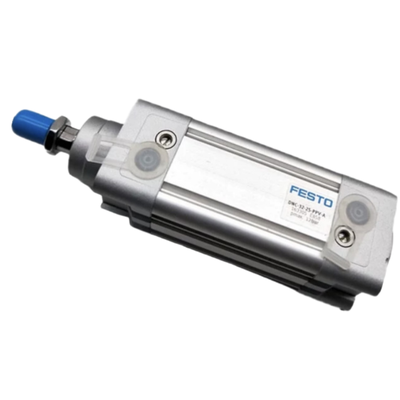

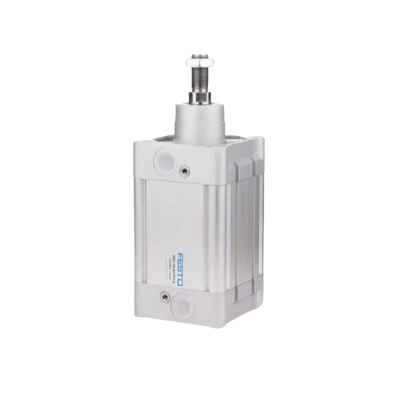

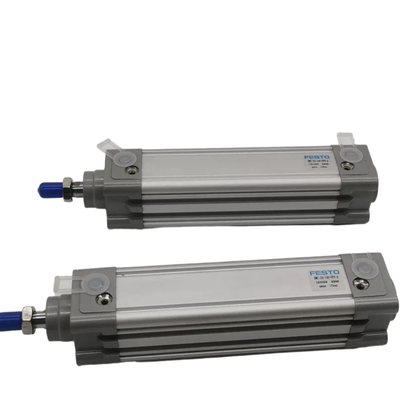

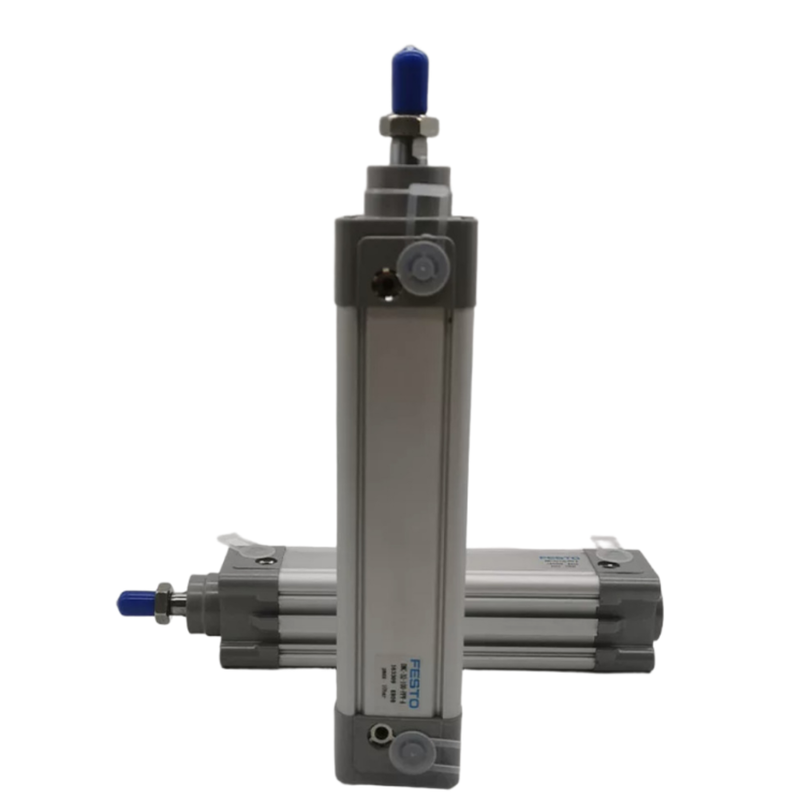

The FESTO DNC-32 standard cylinder is a classic example of a double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Designed with a bore size of 32mm, it provides a consistent and reliable driving force when operated at the standard pressure of 6 bar.
Constructed with a lightweight aluminum alloy barrel, the cylinder features a wear-resistant sealing structure to enhance durability. It offers flexible stroke options, which can be customized anywhere from 10mm up to 2000mm, catering to a wide range of application requirements.
This pneumatic cylinder is equipped with PPV adjustable pneumatic cushions at both ends, ensuring smooth operation and reducing impact noise. Its compact design allows for easy installation of sensors and a variety of modular options, making it a versatile and widely-used pneumatic actuator in automated production lines around the globe.
Features:
The PPV features dual-end adjustable pneumatic cushioning, which ensures a smooth stroke movement. This design effectively reduces impact noise, contributing to a quieter operation, while also extending the overall service life of the cylinder.
Installation is highly versatile with the ability to mount the cylinder in any position. Whether the assembly requires vertical, horizontal, or inclined orientations, the PPV accommodates flexible installation needs to suit various application scenarios.
This product strictly adheres to the ISO 15552 standard, making it fully interchangeable with other mainstream cylinders worldwide. Such compliance allows for convenient replacement without the necessity of redesigning existing fixtures, saving time and effort.
Operating efficiently within a wide pressure range of 0.06 to 1.2 MPa, the PPV maintains stable performance even under fluctuating air pressure conditions. Additionally, it supports a working temperature range from -20℃ to 80℃, ensuring reliable functionality in diverse environments.
Technical Parameters:
| Mode of operation |
Double Acting |
| Piston diameter |
32mm |
| Temperature |
-20 °C ... 80 °C |
| Conforms to standard |
ISO 15552 |
| Stroke |
25mm |
| Operating pressure |
0.6 Bar ... 12 Bar |
Applications:
Automated Assembly Lines
These systems are utilized for various tasks such as clamping components, pushing, lifting, and accurately positioning parts. They are widely implemented in the assembly of electronic devices, hardware, and automotive parts, enhancing efficiency and precision.
Medical & Pharmaceutical Equipment
In the medical and pharmaceutical industries, the equipment facilitates clean-grade material transfer and sterile clamping operations. Optional variants free from PWIS and LABS contaminants are available to meet stringent hygiene standards.
General Industrial Automation
These automation solutions support medium-load linear reciprocating motions required in punching, riveting, and moving testing fixtures. They are essential for various industrial processes needing reliable and precise repetitive movement.
Packaging Machinery
Packaging machines benefit from these applications by enabling carton pushing, bag sealing, labeling, as well as clamping and conveying bottles. These functions are critical in the food, beverage, and cosmetic sectors to ensure smooth and effective packaging operations.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for durability and high performance in various industrial applications. For technical support, please ensure that you have the model number and specifications of your cylinder ready when seeking assistance. Our support team can provide guidance on installation, maintenance, troubleshooting, and replacement parts to ensure optimal operation.
We offer comprehensive services including product consultation, custom configuration advice, and on-site support to help you achieve the best results with your pneumatic cylinder system. Regular maintenance services are recommended to extend the lifespan of the cylinder and prevent unexpected downtime.
For troubleshooting common issues, please refer to the user manual for step-by-step instructions on diagnosing and resolving problems such as air leaks, piston sticking, or reduced performance. Replacement parts and upgrades are available to keep your pneumatic cylinder running smoothly.
We are committed to providing ongoing support and service to maximize the efficiency and reliability of your Piston Pneumatic Cylinder. Please consult our technical documentation and resources for detailed information on product specifications and operational guidelines.
Packing and Shipping:
Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped with protective foam and placed in a sturdy, custom-fitted box to prevent any movement or damage.
We use high-quality, durable materials for packaging to safeguard against moisture, dust, and impact. Additionally, all products are clearly labeled with handling instructions and product details for easy identification.
For shipping, we partner with reliable logistics providers to guarantee timely and safe delivery. Tracking information is provided for all shipments, allowing customers to monitor their orders from dispatch to arrival.
Whether shipping domestically or internationally, we ensure that each Piston Pneumatic Cylinder reaches its destination in perfect condition and ready for immediate use.
