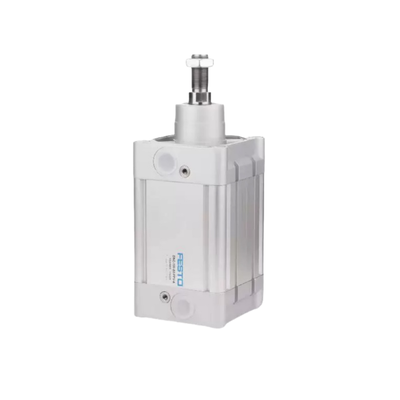

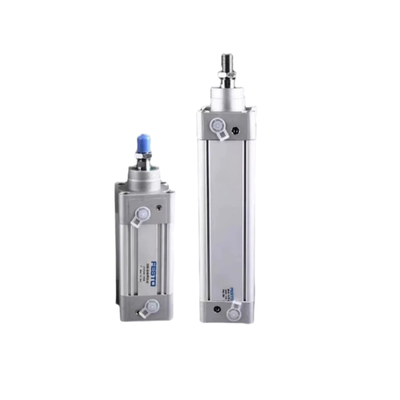

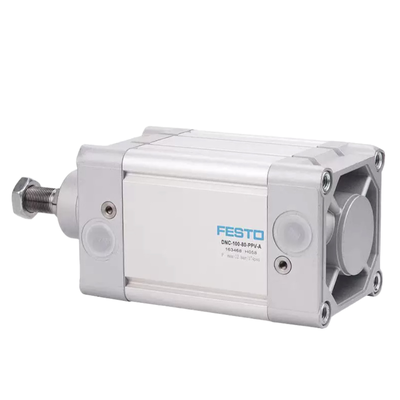

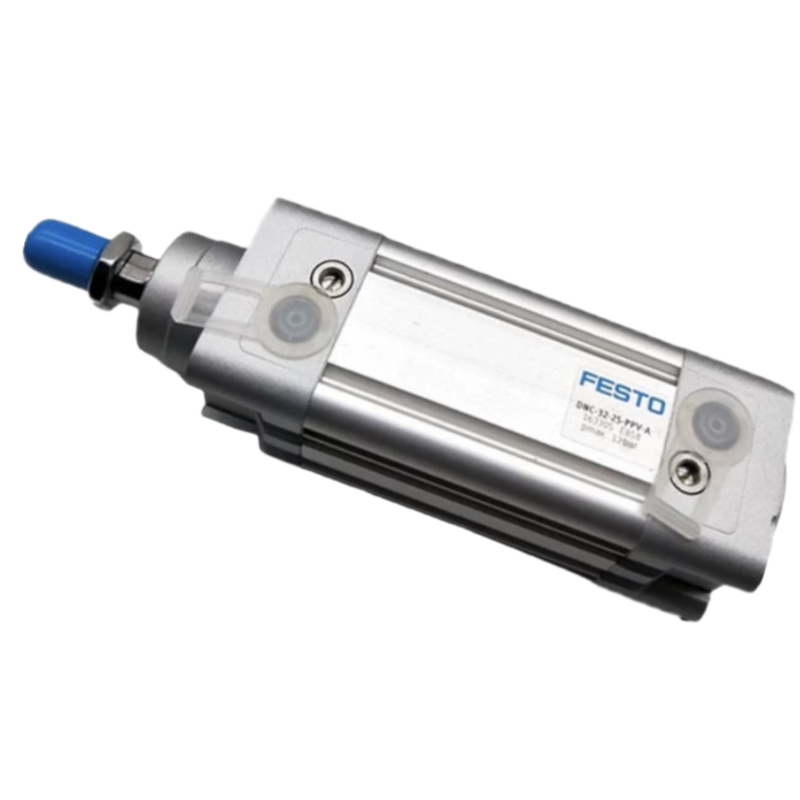

Product Description:
The FESTO DNC-32 standard cylinder is a well-established double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Featuring a bore size of 32mm, it provides a consistent driving force when operating at the standard pressure of 6 bar.
This cylinder is constructed with a lightweight aluminum alloy barrel and incorporates a wear-resistant sealing design. It offers customizable stroke lengths ranging from 10mm up to 2000mm, allowing versatility for various applications.
Additionally, the DNC-32 is equipped with PPV adjustable pneumatic cushions on both ends, enhancing its performance. Its compact design facilitates easy sensor installation and supports a wide range of modular options. Due to these features, it serves as a universal pneumatic actuator widely used in automated production lines around the globe.
Features:
The PPV pneumatic cylinder features dual-end adjustable cushioning, ensuring a smooth stroke movement. This design effectively minimizes impact noise and significantly prolongs the service life of the cylinder.
Installation is highly versatile, allowing for mounting in any position. Whether the application requires vertical, horizontal, or inclined assembly, the PPV cylinder adapts easily to various configurations.
Manufactured in strict accordance with the ISO 15552 standard, the PPV cylinder is fully compatible with mainstream global standard cylinders. This ensures convenient replacement without the need for redesigning existing fixtures.
Designed to operate within a wide pressure range of 0.06 to 1.2 MPa, the cylinder maintains stable performance even under fluctuating air pressures. Additionally, it supports a working temperature range from -20℃ to 80℃, suitable for diverse environments.
Technical Parameters:
| Conforms to standard |
ISO 15552 |
| Mode of operation |
Double Acting |
| Piston diameter |
32mm |
| Temperature |
-20 °C ... 80 °C |
| Stroke |
25mm |
| Operating pressure |
0.6 Bar ... 12 Bar |
Applications:
Automated assembly lines benefit greatly from precise motions such as component clamping, pushing, lifting, and positioning. These functions are essential for the efficient assembly of electronic devices, hardware, and automotive parts, ensuring accuracy and consistency in high-volume production environments.
In the medical and pharmaceutical industries, equipment must handle materials with the highest levels of cleanliness. This includes clean-grade material transfer and sterile clamping operations. Optional variants free from PWIS and suitable for laboratories are available to meet strict hygiene standards.
General industrial automation covers a variety of medium-load linear reciprocating movements. Applications such as punching, riveting, and the movement of testing fixtures all rely on smooth and reliable motion control to maintain productivity and product quality across diverse manufacturing processes.
Packaging machinery incorporates numerous automated tasks including carton pushing, bag sealing, labeling, and bottle clamping. These functions are critical in the packaging of food, beverages, and cosmetics, allowing for efficient and consistent packaging operations within these industries.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the model number, specifications, and operating conditions of your cylinder ready when seeking assistance. Our support team can help with installation guidance, troubleshooting, maintenance tips, and replacement parts information.
We recommend regular inspection and maintenance to ensure optimal functionality and longevity of your pneumatic cylinder. This includes checking for air leaks, inspecting seals and rods for wear, and ensuring proper lubrication as specified in the product manual.
Our services also include custom engineering solutions to meet specific application requirements, as well as training sessions for your technical staff to maximize the efficiency and safety of using our pneumatic cylinders.
For additional resources, please refer to the product manuals, FAQs, and instructional videos available on our website. These materials provide detailed information on product features, installation procedures, and troubleshooting techniques.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosion paper and securely placed in a custom-fitted foam insert within a sturdy cardboard box. The packaging is designed to prevent any movement or damage, preserving the product’s quality and performance.
For shipping, we use reliable carriers and provide tracking information for every order. We offer multiple shipping options, including standard, expedited, and freight services, to meet your delivery needs. All shipments are handled with care to guarantee that your Piston Pneumatic Cylinder arrives safely and on time.
