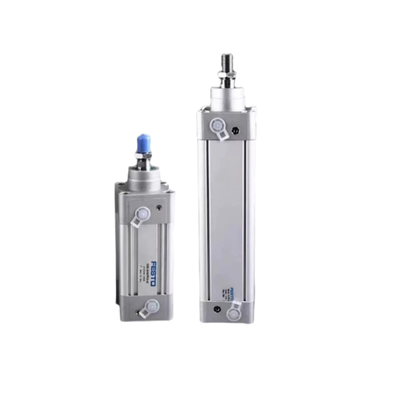

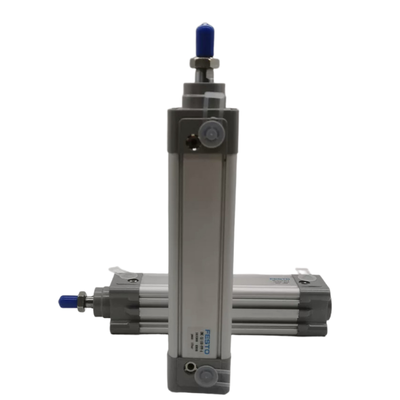

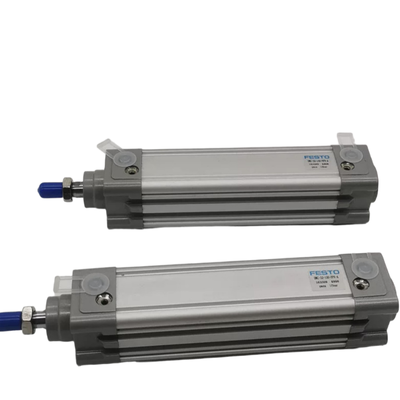

32mm Bore 80mm Stroke FESTO DNC32-80-PPV-A 163307 Double Acting Air Cylinder With Bilateral Adjustable PPV Pneumatic Cushion

Product Description:

The FESTO DNC-32 standard cylinder is a classic example of a double-acting pneumatic cylinder, designed in full compliance with the ISO 15552 international standard. Featuring a bore size of 32mm, it provides a stable driving force when operated at the standard working pressure of 6 bar.

Constructed with a lightweight aluminum alloy barrel and a wear-resistant sealing mechanism, the cylinder ensures durability and long service life. It also offers customizable stroke lengths ranging from 10mm up to 2000mm, allowing it to be tailored to various application requirements.

Additionally, the DNC-32 is fitted with PPV adjustable pneumatic cushions at both ends, which help to reduce impact and enhance operational smoothness. Its compact design facilitates easy sensor installation and offers a wide range of modular options, making it a versatile pneumatic actuator suited for automated production lines across the globe.

Features:

The PPV features dual-end adjustable pneumatic cushioning that ensures smooth stroke movements. This design effectively reduces impact noise and helps extend the overall service life of the cylinder.

Installation is highly flexible, as the device supports any mounting position. It can be easily assembled in vertical, horizontal, or inclined orientations, accommodating diverse application requirements.

Manufactured in strict accordance with the ISO 15552 standard, the PPV is fully interchangeable with other leading global standard cylinders. This compatibility allows for convenient replacements without the need to redesign existing fixtures.

Designed to operate within a wide pressure range of 0.06 to 1.2 MPa, the PPV maintains stable performance even when air pressure fluctuates. Additionally, it can function reliably in temperatures ranging from -20℃ to 80℃.

Technical Parameters:

Applications:

In the realm of automated assembly lines, various operations such as clamping components, pushing, lifting, and precise positioning play a vital role. These functions are essential for assembling electronic devices, hardware items, and automotive parts efficiently and accurately.

The medical and pharmaceutical sectors demand highly specialized equipment to ensure cleanliness and sterility. This includes the transfer of clean-grade materials and the use of sterile clamping mechanisms. Additionally, there are optional variants available that are free from PWIS and suitable for laboratory environments.

Within general industrial automation, tasks such as punching, riveting, and moving testing fixtures are common. These applications typically involve medium-load linear reciprocating motions, which are critical for maintaining consistent performance and product quality.

Packaging machinery encompasses a range of activities including carton pushing, bag sealing, labeling, as well as clamping and conveying bottles. These processes are widely applied in the packaging of food, beverages, and cosmetic products, ensuring they are securely and efficiently handled throughout the production line.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please ensure you have the product model number and specifications available to facilitate accurate assistance.

We offer comprehensive services including installation guidance, maintenance advice, troubleshooting tips, and repair support to maximize the lifespan and functionality of your pneumatic cylinder.

For installation, always follow the recommended procedures to ensure proper alignment and secure mounting. Regular maintenance, such as checking for air leaks, lubricating moving parts, and inspecting seals, is crucial for optimal operation.

If you encounter any operational issues, consult the troubleshooting section of the product manual or contact our technical support team for detailed diagnostics and solutions.

We also provide customization options and engineering support to tailor the pneumatic cylinder to your specific application needs.

Our goal is to ensure that your Piston Pneumatic Cylinder operates smoothly and efficiently, backed by expert technical support and comprehensive services.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

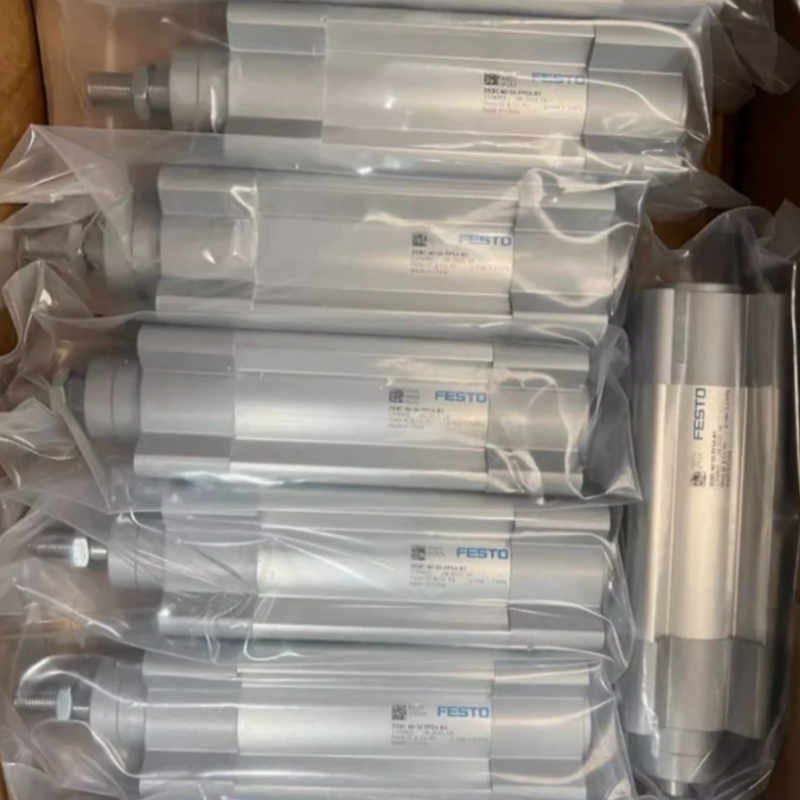

Each piston pneumatic cylinder is carefully packaged to ensure it reaches you in perfect condition. The cylinder is first wrapped in protective foam or bubble wrap to prevent scratches and damage during transit. It is then placed inside a sturdy cardboard box, with additional padding materials such as air cushions or packing peanuts to minimize movement within the box.

For bulk orders, multiple cylinders are individually wrapped and securely arranged in larger cartons with adequate cushioning between each unit. All packaging materials are chosen to provide maximum protection while being environmentally friendly whenever possible.

Shipping options include standard ground delivery, expedited shipping, and freight services for larger quantities or oversized products. Each shipment is labeled clearly with handling instructions and tracking information is provided to ensure you can monitor your order until it arrives.

We recommend inspecting the package immediately upon receipt and reporting any damage to the carrier and our customer service team promptly to facilitate a quick resolution.
