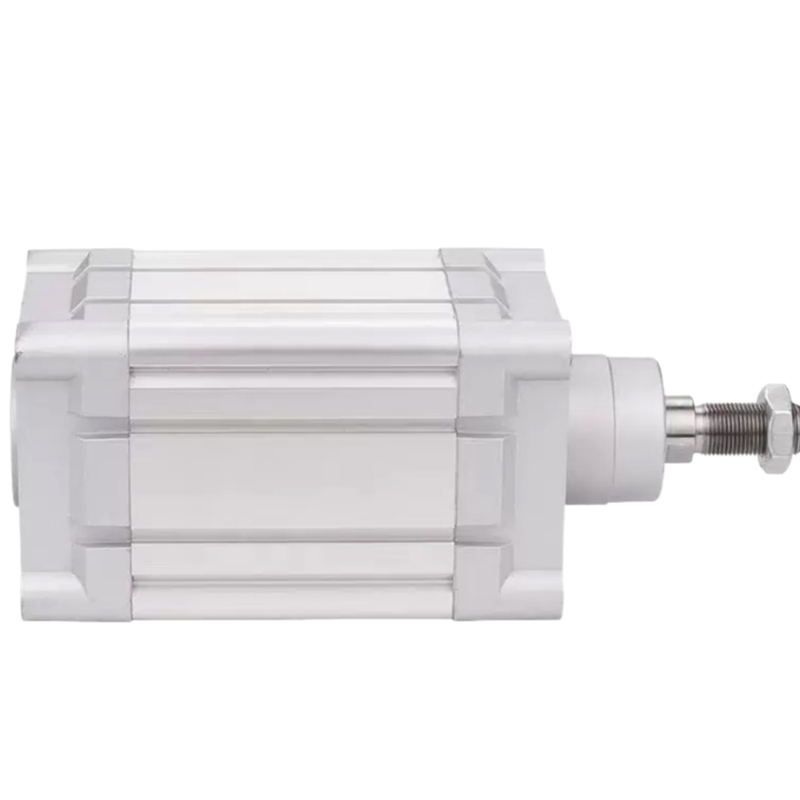

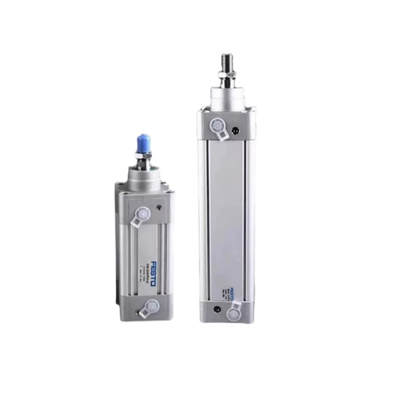

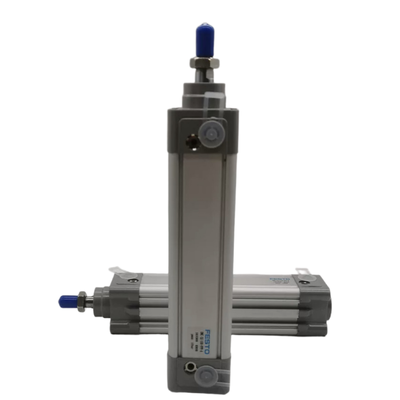

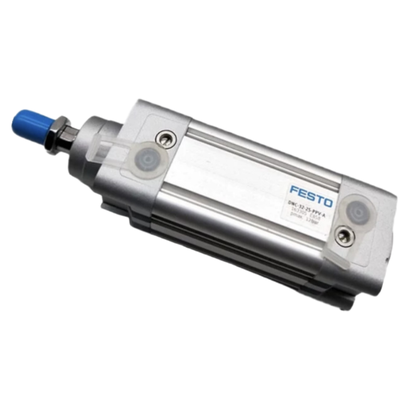

Double Acting FESTO DNC32-50-PPV-A 163307 Pneumatic Cylinder 32mm Bore 50mm Stroke With Dual Side PPV Adjustable Air Cushion

Product Description:

The FESTO DNC-32 standard cylinder is a widely recognized double-acting pneumatic cylinder that fully adheres to the ISO 15552 international standard. Featuring a bore size of 32mm, it provides a reliable and stable driving force when operating at the standard pressure of 6 bar.

Constructed with a lightweight aluminum alloy barrel, the cylinder benefits from enhanced durability and reduced weight. Its wear-resistant sealing design ensures long-lasting performance. Additionally, it offers customizable stroke lengths ranging from 10mm up to 2000mm, making it adaptable to various application needs.

This cylinder is also equipped with PPV adjustable pneumatic cushions on both ends, which contribute to smooth operation and impact absorption. Its compact design facilitates easy installation of sensors and supports a wide range of modular variants. As a result, the FESTO DNC-32 serves as a versatile pneumatic actuator solution for automated production lines around the globe.

Features:

The PPV series features dual-end adjustable pneumatic cushioning, ensuring smooth stroke movement. This design effectively minimizes impact noise and helps to prolong the overall service life of the cylinder.

Installation is highly versatile, as the cylinders can be mounted in any position. Whether for vertical, horizontal, or inclined setups, the PPV series provides flexible mounting options to suit various assembly scenarios.

Manufactured in strict accordance with the ISO 15552 standard, these cylinders are fully interchangeable with global mainstream standard cylinders. This compatibility allows for easy replacement without the need to redesign existing fixtures.

Designed to operate within a wide working pressure range of 0.06 to 1.2 MPa, the PPV cylinders maintain stable performance even under fluctuating air pressures. Additionally, they are capable of functioning efficiently within a temperature range from -20℃ to 80℃.

Technical Parameters:

Applications:

In the realm of automated assembly lines, various tasks such as clamping components, pushing, lifting, and precise positioning are essential. These functions are critical in the assembly of electronics, hardware, and automotive parts, ensuring efficient and accurate production processes.

The medical and pharmaceutical sectors require specialized equipment that handles clean-grade material transfer and sterile clamping. Options are available for PWIS/LABS-free variants, catering to environments where contamination control is paramount.

General industrial automation encompasses operations like punching, riveting, and the movement of testing fixtures. These activities typically involve medium-load linear reciprocating motions, which are commonly seen across a variety of manufacturing applications.

Packaging machinery plays a vital role in the food, beverage, and cosmetic industries. Functions such as carton pushing, bag sealing, labeling, bottle clamping, and product conveying are integral to maintaining high throughput and product quality in packaging lines.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, please ensure that you have the model number and specifications of your cylinder ready. Our support team is equipped to assist with installation guidance, troubleshooting, maintenance tips, and replacement parts information.

We recommend regular inspection and maintenance of the piston pneumatic cylinder to ensure optimal operation and longevity. This includes checking for air leaks, lubricating moving parts as specified, and verifying that mounting components are secure.

Should you require any services such as repair or calibration, our authorized service centers provide expert assistance to restore your equipment to peak condition. We also offer comprehensive training materials and user manuals to help you maximize the performance of your pneumatic cylinder.

Please refer to the product documentation for detailed technical specifications, safety instructions, and operational guidelines to ensure safe and effective use of the piston pneumatic cylinder.
