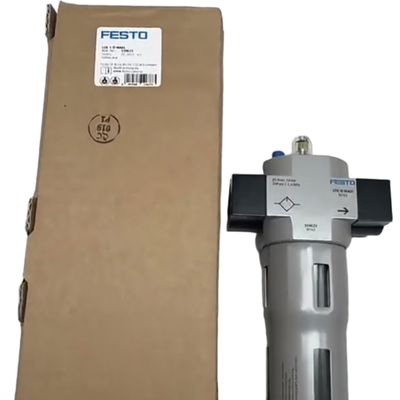

Product Description:
The FESTO D-series MAXI oil mist filter features a robust integrated die-cast zinc alloy housing, classifying it as a heavy-duty metal air source purification component. This durable construction ensures long-lasting performance in demanding industrial environments.
Equipped with multi-precision replaceable filter cartridges, the filter effectively eliminates dust, condensate, oil mist, and fine aerosols from compressed air. This high filtration efficiency guarantees cleaner air quality for various pneumatic applications.
Available in a MAXI large-flow size, the filter supports standard thread sizes of G1/2, G3/4, and G1. It complies with the ISO 8573-1 air purity standards and offers options for both manual and automatic condensate drains, providing flexibility in maintenance and operation.

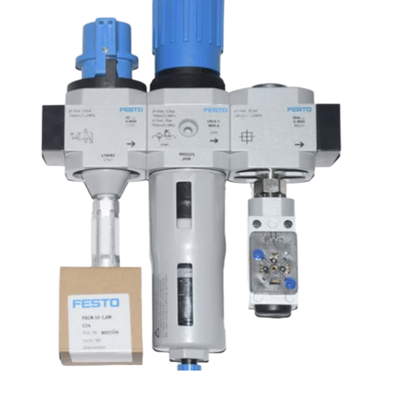

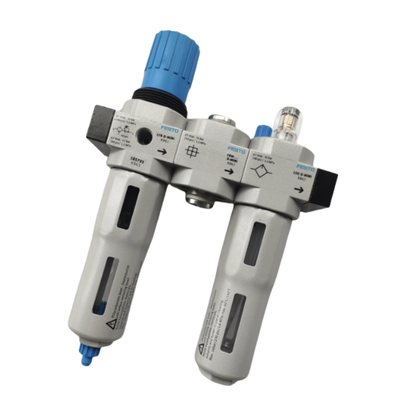

The oil mist filter is widely compatible with FESTO FRL combination units and is ideal for installation in factory central compressed air pipeline systems, enhancing the overall air treatment and reliability of industrial equipment.
Features:
The MAXI model offers a large airflow capacity of up to 5300 liters per minute at a pressure of 6 bar. It is equipped with an 80 ml condensate storage bowl, which is protected by a durable metal cover to ensure safety and longevity.
Users can choose between two convenient drain options: a manual rotary drain or a fully automatic drain system. The automatic drain is especially suitable for unattended production lines, providing hassle-free operation.
This product supports a wide working range, operating efficiently within pressures from 1 to 16 bar and temperatures between -10℃ and 60℃. Additionally, it allows for vertical installation with a tolerance of ±5°, adding to its flexibility in various setups.
The filter insert is independently replaceable, contributing to a low maintenance cost over time. This feature helps extend the service life of the unit and reduces the need for frequent upkeep.
Technical Parameters:
| Mounting Position |
Vertical ±5° |
| Series |
D |
| Operating Pressure |
0 MPa ... 1.6 MPa |
| Design |
Proportional Standard Mist Lubricator |
| Temperature |
-10 °C ... 60 °C |
| Size |
Maxi |
| Description |
Pressure Reducer, FESTO air source treatment unit, FESTO MAXI filter |
Applications:
Automotive Manufacturing
In the automotive industry, advanced welding lines and painting workshops are utilized extensively. Robotic pneumatic systems play a crucial role in this sector by effectively preventing paint bubbling defects, ensuring a high-quality finish on vehicle components.
CNC and Machinery
CNC machining centers, stamping machines, and injection molding equipment are essential in manufacturing precise components. These machines help protect the integrity of precision valves and cylinders, maintaining tight tolerances and ensuring reliable operation.
Electronics and Semiconductors
The electronic and semiconductor industries rely on sophisticated PCB and chip packaging equipment. Ultra-clean air environments are maintained to prevent circuit short circuits, enhancing the overall performance and reliability of electronic devices.
Printing and Packaging
High-speed printers and film blowing machines are widely used to achieve stable and consistent printing quality. These technologies enable efficient production processes while maintaining the desired standards in packaging.
Support and Services:

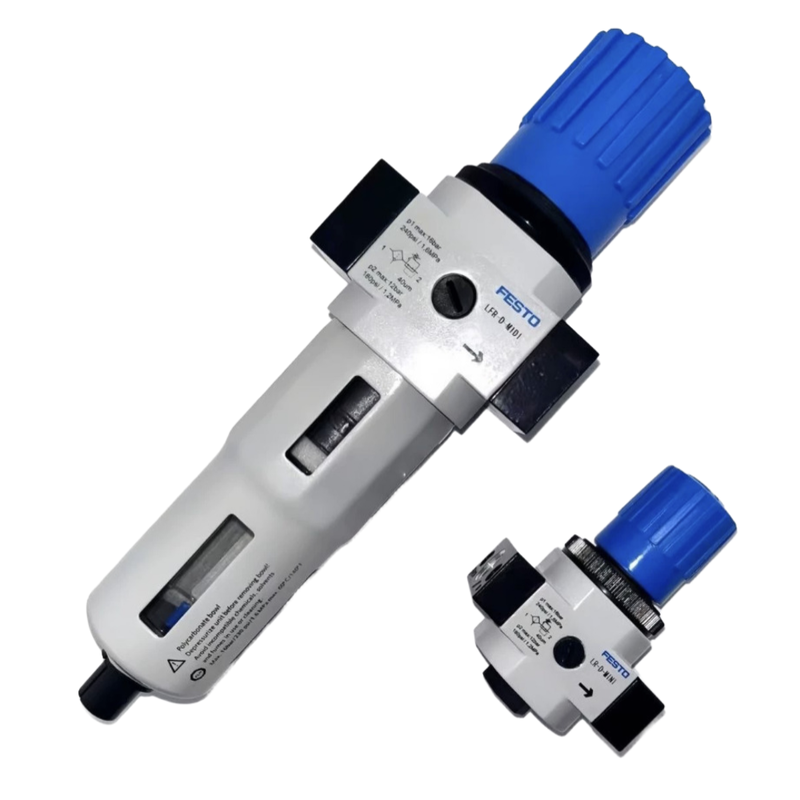

Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the user manual included with the product, which contains detailed installation instructions, maintenance guidelines, and troubleshooting tips.
Regular maintenance of the FRL unit is essential for reliable operation. This includes periodically draining accumulated water and contaminants from the filter bowl, checking and adjusting the regulator to the desired pressure, and refilling the lubricator with the appropriate pneumatic oil to ensure proper lubrication of downstream components.
In case of performance issues, verify that the air supply is within the specified pressure range, inspect for any leaks or blockages in the system, and confirm that the filter element is clean and free from damage. Replacement parts such as filter elements, seals, and lubricator oil are available to maintain peak functionality.
For advanced troubleshooting and service support, please consult our technical support documentation or contact our service team through the official channels provided with your purchase. Our experts can assist with product selection, system integration, and resolving any operational challenges to maximize the efficiency and lifespan of your pneumatic equipment.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packed in a sturdy cardboard box to prevent damage during transit. Each unit is individually wrapped with protective foam or bubble wrap to ensure it remains free from scratches and impacts. The packaging includes clear labeling with product details, model number, and handling instructions to facilitate easy identification and safe handling.
Shipping: The product is shipped via reliable courier services with tracking capabilities to ensure timely delivery. Depending on the destination, shipping options include standard, expedited, and freight services. All shipments are carefully handled to maintain product integrity, and customers receive tracking information for real-time updates. International shipments comply with all relevant export regulations and include necessary documentation for customs clearance.
