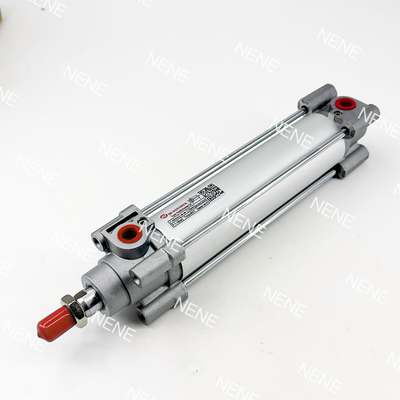

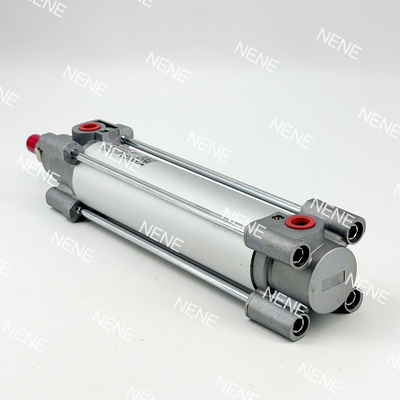

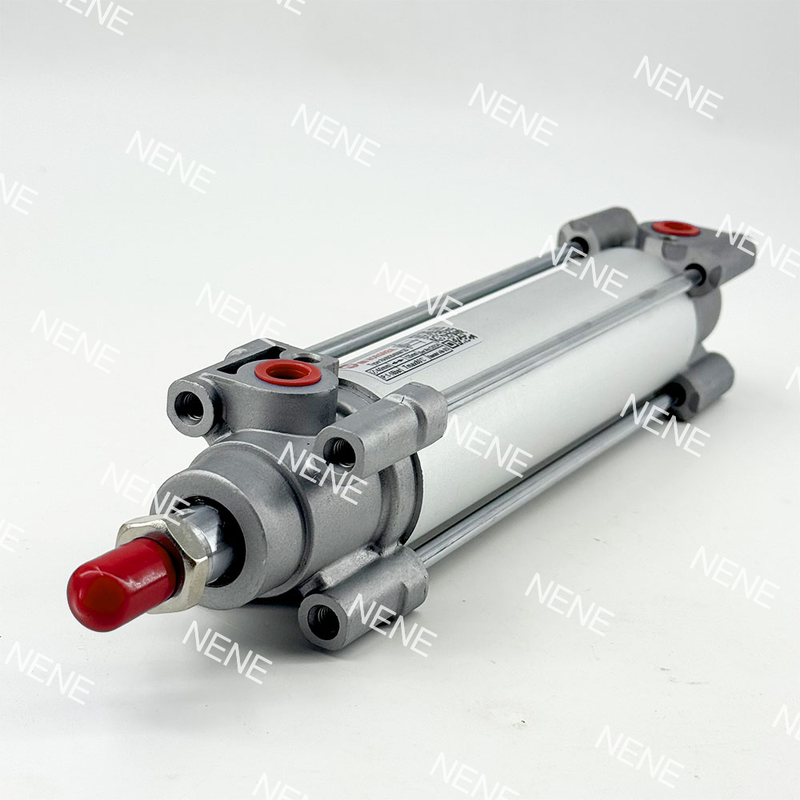

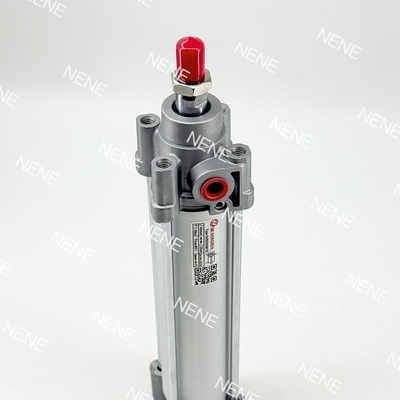

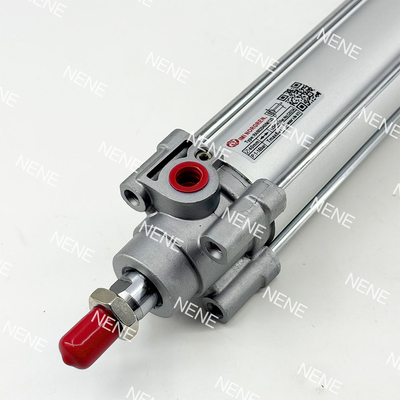

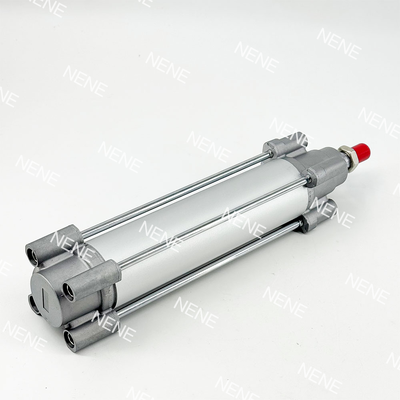

Norgren RA/802063/M/300 Pneumatic Linear Actuator 63mm Bore 300mm Stroke for Material Handling

Product Description:

The RA/802063/M Series represents a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. It belongs to the esteemed ISOLine™ collection and features a bore diameter of 63mm. This series offers a wide range of stroke lengths from 25mm up to 1000mm, making it an ideal solution for delivering dependable and efficient linear motion across numerous industrial automation uses.

Central to the design of this cylinder is the cutting-edge Adaptive Cushioning System (ACS). This smart system automatically tailors the cushioning to suit varying load conditions, removing the necessity for manual adjustments of cushion screws or specialized expertise. This innovation leads to operations that are smoother and safer, while also lowering maintenance expenses and extending the cylinder’s overall lifespan.

Constructed with a sturdy round barrel and supported by external tie rods, the RA/802063/M Series ensures enhanced durability, making it well-suited for harsh or demanding environments. The cylinder is equipped as standard with a magnetic piston, which facilitates effortless position detection when used with compatible reed or solid-state sensors. Additionally, it complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing interchangeability and worldwide regulatory adherence.

Operating at a maximum pressure of 16 bar and effectively functioning within a temperature range from -10°C to +80°C, this cylinder is engineered to tackle rigorous industrial applications. It maintains precise and smooth motion control throughout its operation, ensuring reliable performance in diverse working conditions.

Features:

The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation. Additionally, it helps to reduce noise and vibration during use.

This system complies with international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such compliance guarantees global interchangeability and facilitates seamless integration into existing systems worldwide.

Featuring a round barrel design equipped with external tie rods, the construction offers outstanding durability. It is well-suited to withstand the demands of aggressive industrial environments.

The standard magnetic piston incorporated within this system allows for easy position sensing. It is compatible with reed or solid-state switches, such as those in the M/50 series, enhancing monitoring capabilities.

Designed to operate efficiently across a broad pressure spectrum, from 1 to 16 bar, this system caters to a variety of applications. Whether the task is light-duty or heavy-duty, it maintains optimal performance.

The system offers a wide selection of stroke lengths, including both standard and custom options, extending up to 1000mm. This versatility ensures adaptability to numerous operational requirements.

Equipped with PUR seals, the system guarantees low-friction operation and an extended service life. It is compatible with both lubricated and non-lubricated air, minimizing maintenance needs.

Thoroughly tested according to EN 61373 Category 1, Class A + B standards, this system is suitable for rigorous rail and transportation applications, exhibiting excellent resistance to shock and vibration.

At a pressure of 6 bar, the theoretical thrust outputs are 1870 N during outstroke and 1680 N during instroke. These values deliver substantial power for demanding and intensive tasks.

Several variants are available to suit different application needs, including options for various piston rod materials, special wipers, low friction seals, and extended piston rods. This flexibility makes the system highly customizable.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions to ensure optimal functionality.

If you encounter any issues or require assistance with troubleshooting, our technical support team is available to help diagnose and resolve problems promptly. We recommend regular inspection and maintenance of the cylinder to prevent wear and extend its service life.

Replacement parts and accessories are available to help maintain the performance of your pneumatic cylinder. Ensure that any repairs or modifications are performed by qualified personnel using genuine parts to comply with safety standards and maintain warranty coverage.

For customized solutions or integration support, our engineering team can provide expert guidance tailored to your specific application requirements. We are committed to delivering high-quality products and exceptional customer service to support your operational success.
